Thermal contact
Identify heat sources, contact surfaces, mounting loads and surface-flatness requirements.
Enclosure + thermal function

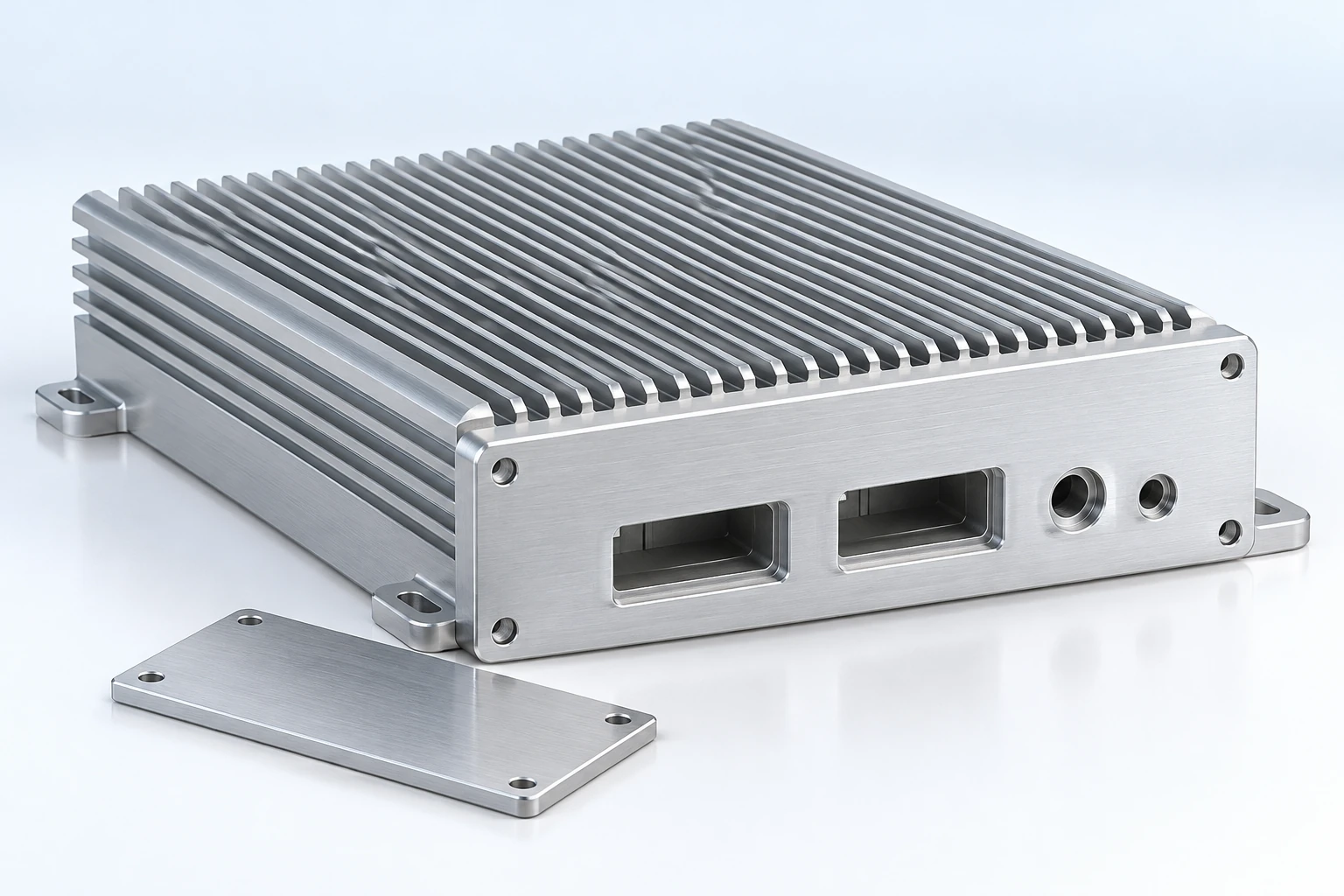

Electronic Enclosures & Heat Sinks.
Integrated aluminum housings that combine structure, EMI shielding and thermal management for power electronics, controls and communications equipment.
Define the supplied condition, critical dimensions and acceptance plan in the drawing review. Published process references depend on material, geometry and the agreed order scope.
Feature review

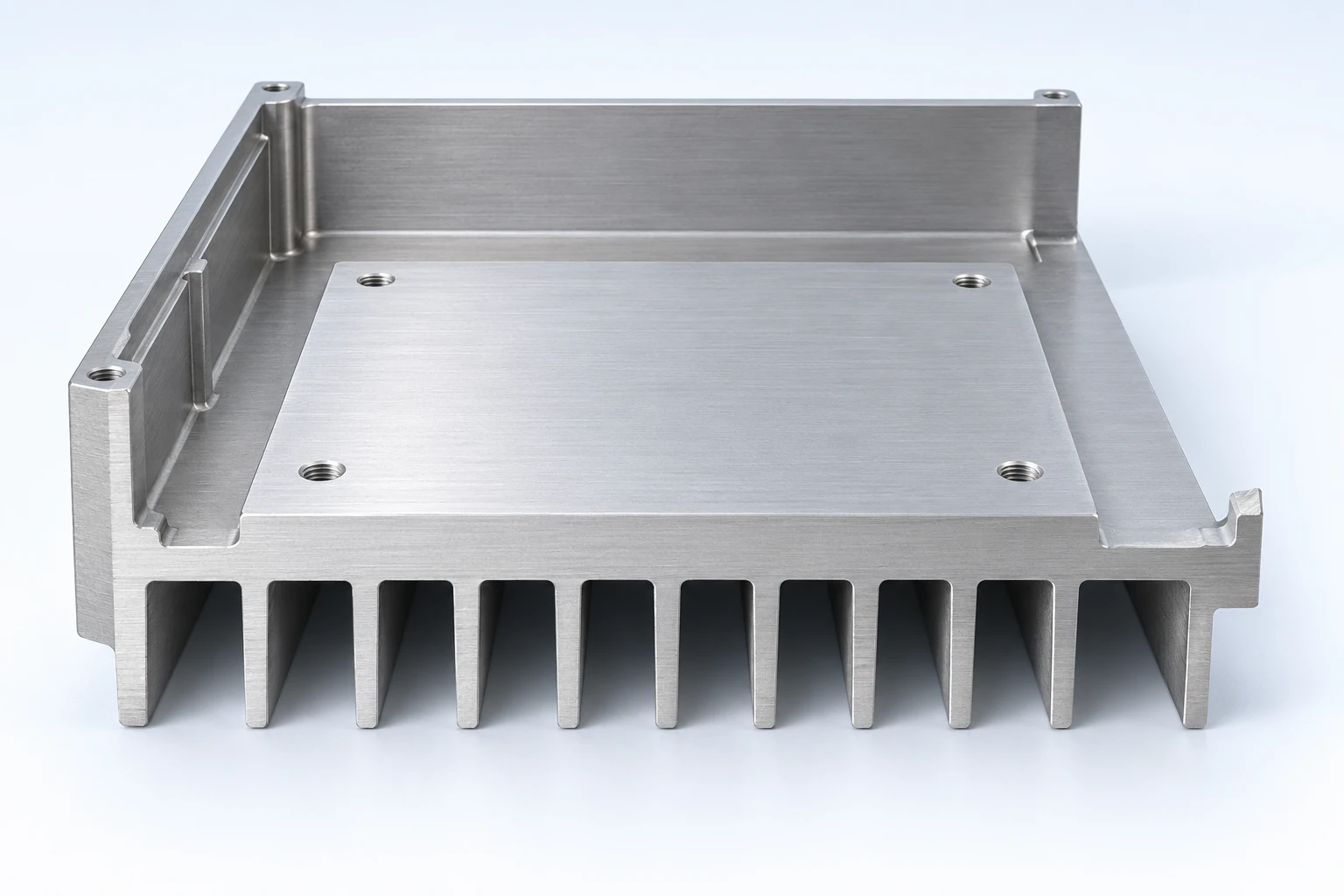

Follow the contact surface through to the fins.
The flat internal mounting face and external fins show the two sides of the thermal path. Specify the contact area and its finished surface together with the component fixing pattern.
Fin layout must be reviewed with the installed clearance and intended airflow. Connector openings, coating masks and the enclosure seal remain separate drawing requirements.
Structure, Heat Transfer and Electrical Interfaces.
Connection and grounding
Mark connectors, grounding surfaces and areas requiring coating masks.
Environmental sealing
Define the seal design and the assembled-product validation criteria.
Production route, manufacturing responsibility, available documentation and acceptance criteria are confirmed for the particular product and order.
Manufacturing Scope
Heat transfer, connector fit and enclosure sealing.
Equipment route
130–4,400T aluminum HPDC network selected by projected area
Machining
Connector ports, gasket lands and heat-transfer faces
Protection
IP sealing review and project-defined leak testing
Appearance
Texture, powder coat and cosmetic-zone planning
Representative Components
Electronics Enclosures & Heat Sinks — Component Forms & Review Sequence
- Thermal path
Identify contact faces, fins and mounting loads.
- Electrical interfaces
Review connector openings, grounding and masking zones.
- Closure
Define gasket lands, cover fit and project-specific sealing tests.
Review together: contact faces, fins and internal partitions; connector access and gasket interfaces; surface finish and dimensional acceptance.
Partitioned enclosure with perimeter sealing interface.
Tall finned housing with recessed connector face.
Covered enclosure with fins and circular port openings.
Typical Applications
- Motor drives and inverters
- Telecommunications equipment
- Industrial controllers
- Outdoor power electronics
Materials & Finishes
- ADC12 / A380
- A360 for improved corrosion resistance
- Thermal-interface and insert options
- Powder coat, conversion coat and passivation
Production and inspection
Assembly and enclosure interfaces.
Casting, machining, joining and verification requirements follow the enclosure drawing.

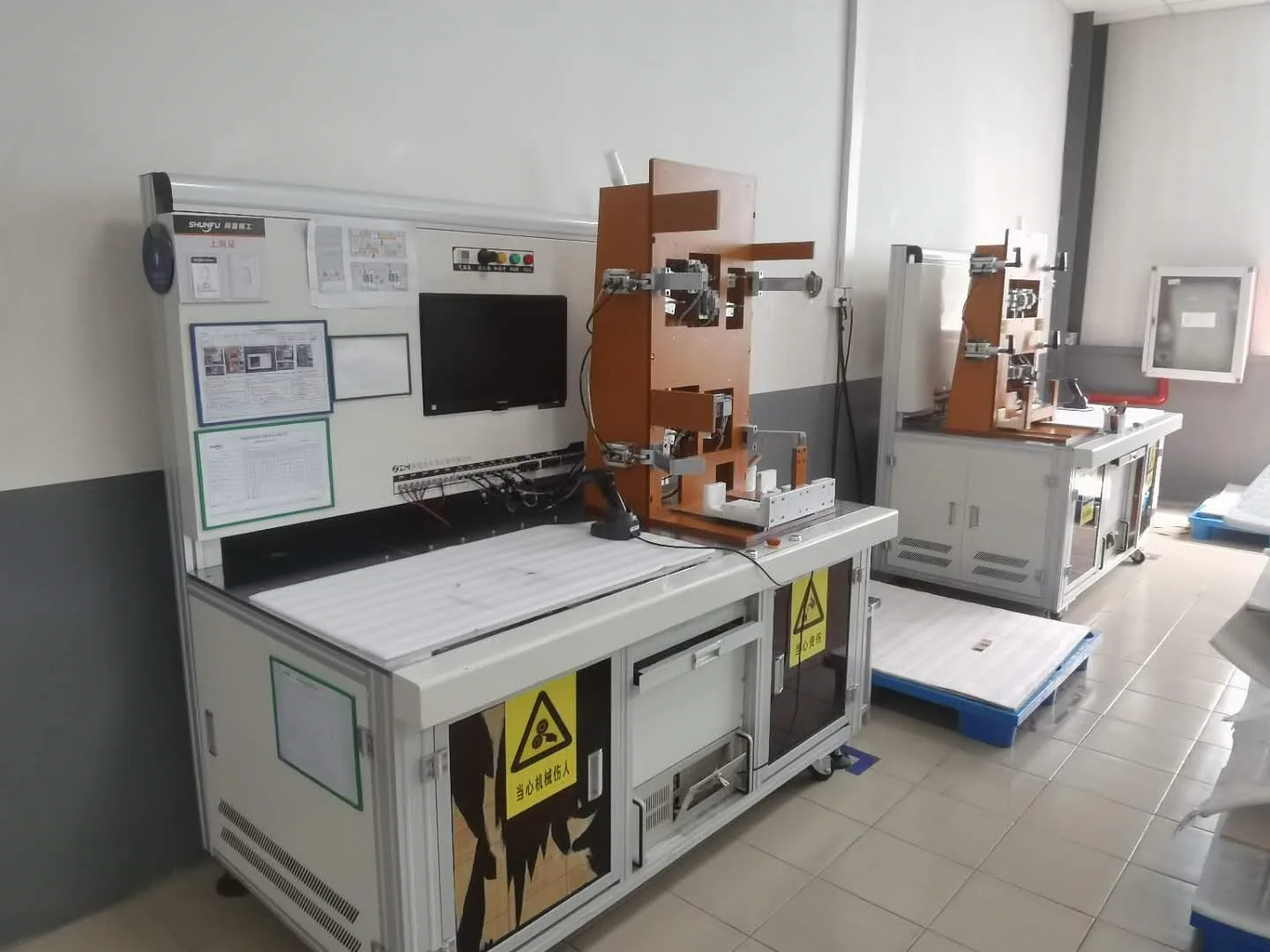

Assembly and testing
Assembly and verification requirements are defined for the enclosure project.

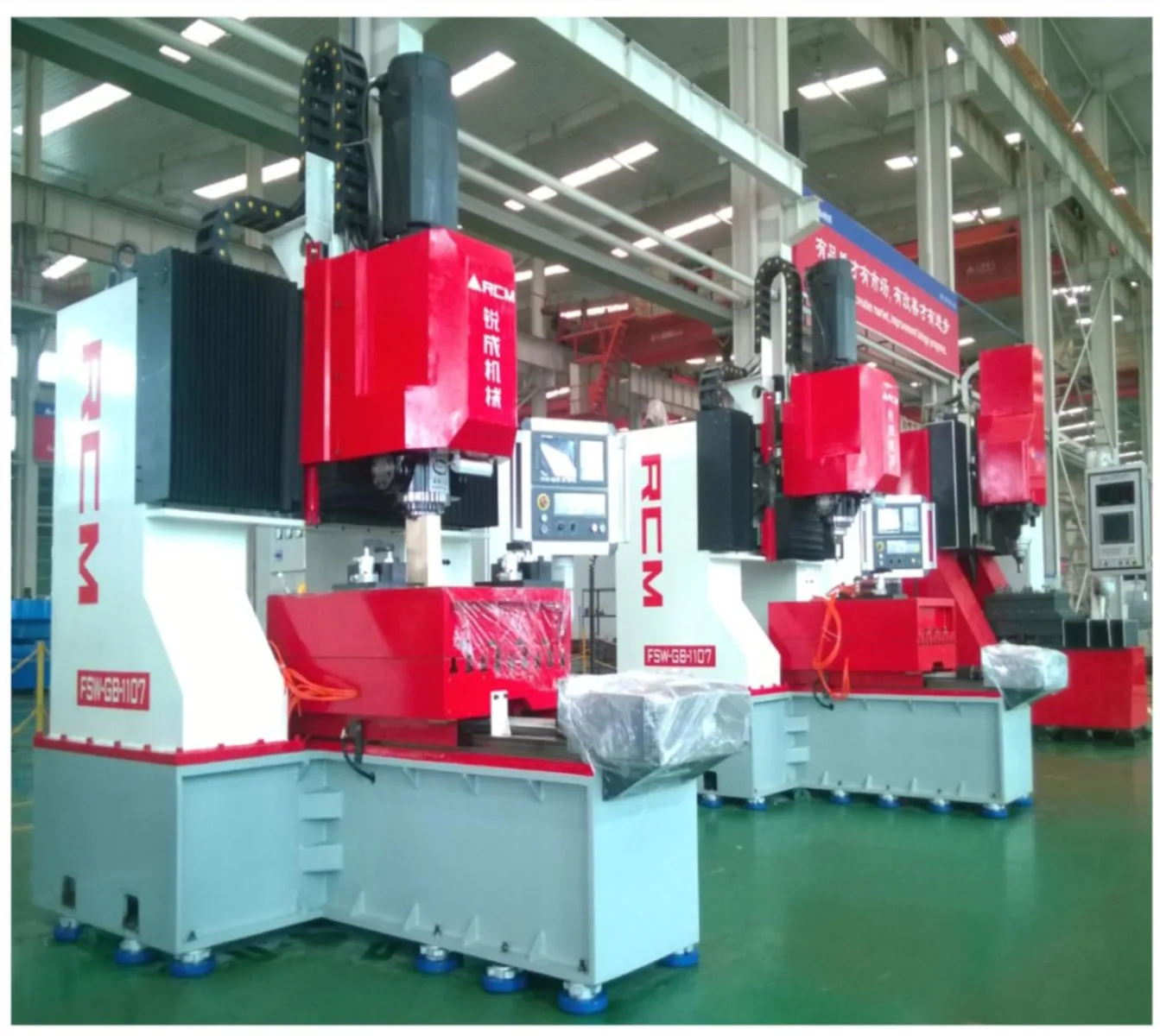

Enclosure joining interfaces
Joining requirements follow the drawing, sealing and thermal interfaces.

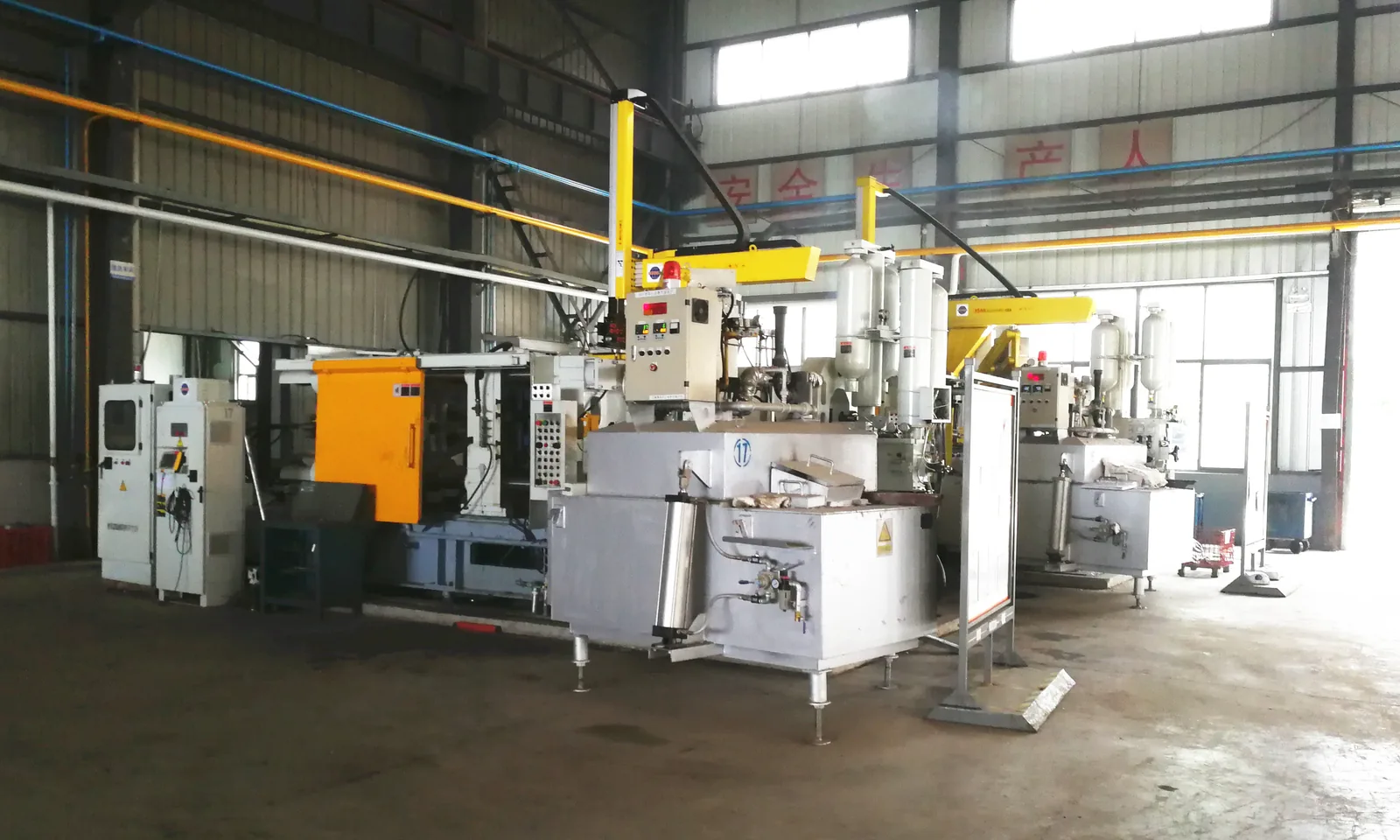

Casting equipment Machining and measurement
Manufacturing route and inspection
The route can combine melt preparation, die casting and machining of connector ports, gasket lands, bores and thermal interfaces. Where specialist joining is required, the process and acceptance criteria are agreed for the part. Coordinate measurement reviews critical interfaces and drawing-defined geometric requirements.
Production route and inspection scope agreed per project
Frequently Asked Questions
Can the heat sink be cast into the enclosure?
Yes. Integrated fins reduce assembly count, but fin height, spacing and draft must be reviewed for filling and die release.
Can you machine flat thermal interfaces?
Yes. Critical heat-transfer surfaces can be CNC machined and inspected to the agreed flatness and roughness.
Prepare the project review
Review heat, sealing and assembly together.
Send the part drawing, functional interfaces, operating conditions and production requirements.
- Contact faces, fins and internal partitions
- Connector access and gasket interfaces
- Surface finish and dimensional acceptance
Have a Drawing for Electronics Enclosures & Heat Sinks?
Send the model, volume and critical requirements for engineering review and a project-specific quotation.
