Drawing-led machining

Precision CNC Machining

Milled and turned components, from prototype review to repeat production.

Precision-metal production is coordinated through long-term strategic manufacturing bases.

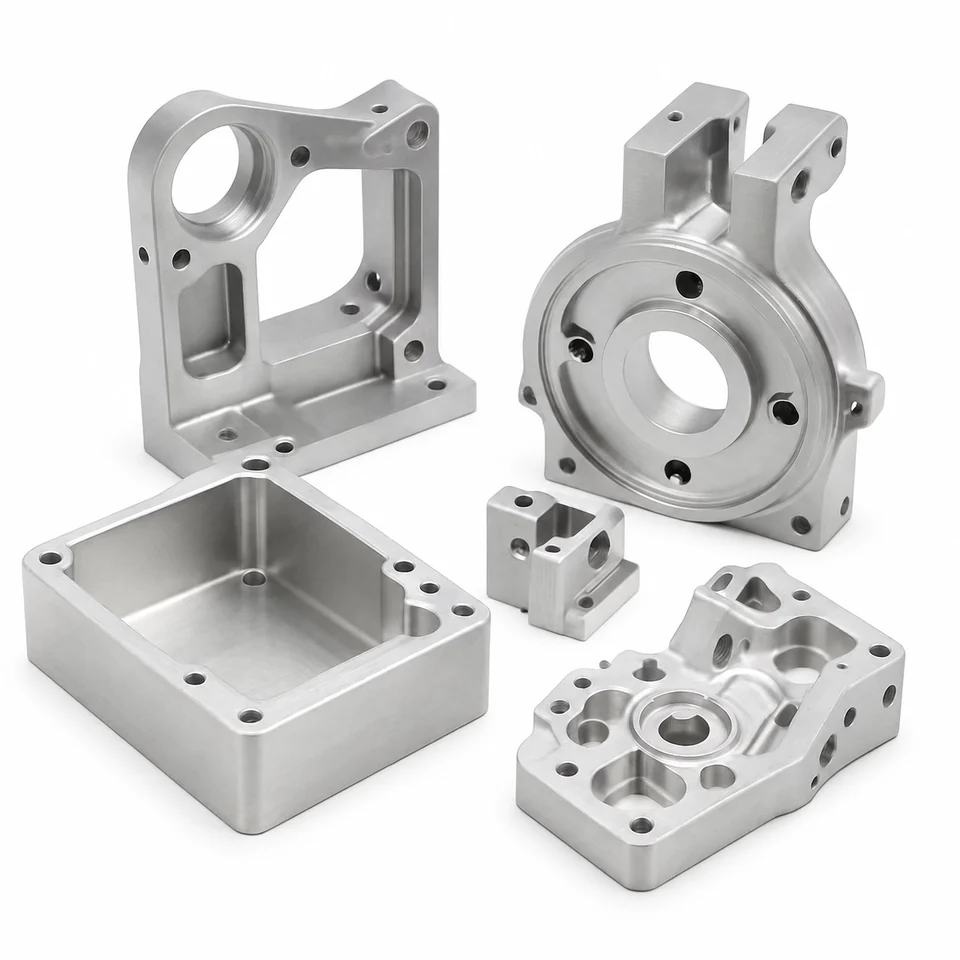

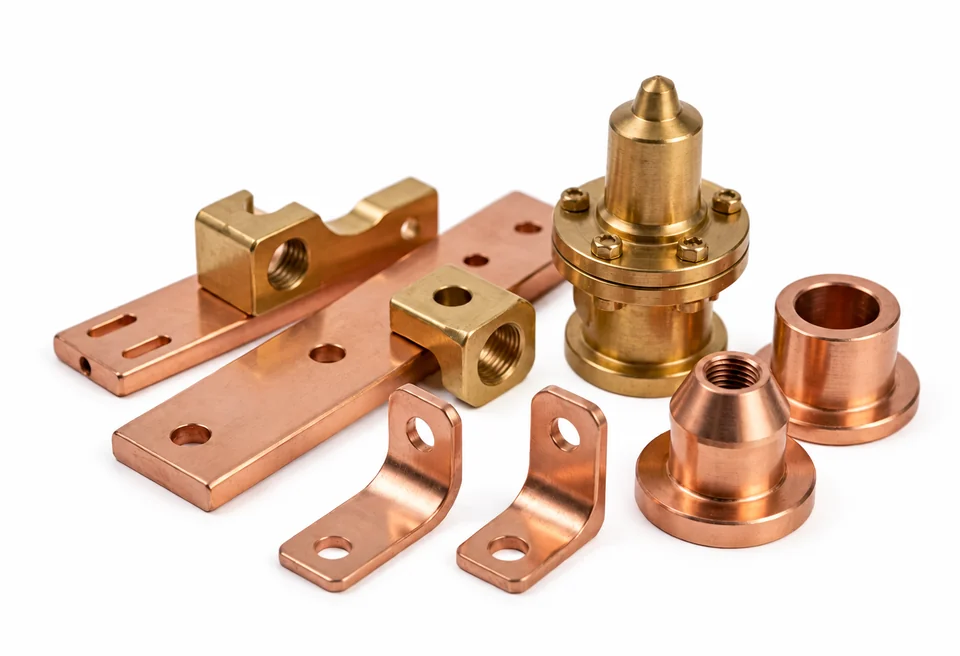

Machined brackets, flanges and pocketed housings
Brackets, flanges and pocketed housings—material, revision and datums define the part.
Product forms

Bores, shoulders, pockets & mounting faces

Brass mounting block, stepped steel flange and aluminum bracket
Brass block, stepped flange and aluminum bracket.

Stock & datums

Drawing-defined material and locating scheme.

Milling & turning

Tool access for pockets, bores and threaded features.

Inspection

Critical dimensions and required surface condition.

Machining capability

Axes, materials & feature-level precision

Published capability references depend on material, geometry, machine route and agreed inspection—not every value applies to every part.

ParameterCapabilityNotes
Milling axes3, 4, and 5-axis simultaneous40+ CNC machining centers
TurningCNC lathes with live toolingBar feed to 80mm diameter
Max envelope1000×600×500mm (5-axis)Larger on 3-axis machines
Tolerance±0.005mm standard, ±0.001mm precisionCalibration traceability and measurement method agreed for the part
Surface finishRa 0.4µm machined, 0.05µm groundPolishing to mirror available
MaterialsAl, steel, SS, Ti, brass, Cu, plastics60+ certified alloys in stock
CMMZeiss-class CMM, 2.2µm accuracyFull dimensional reports
3 / 4 / 5Milling axes
±0.005 mmPublished standard reference
Ra 0.4 µmMachined surface reference
1–100,000Published volume range

Material and process datasheets are available through the technical resources. Confirm the quoted tolerance, stock, feature size, measurement method and report scope during drawing review.

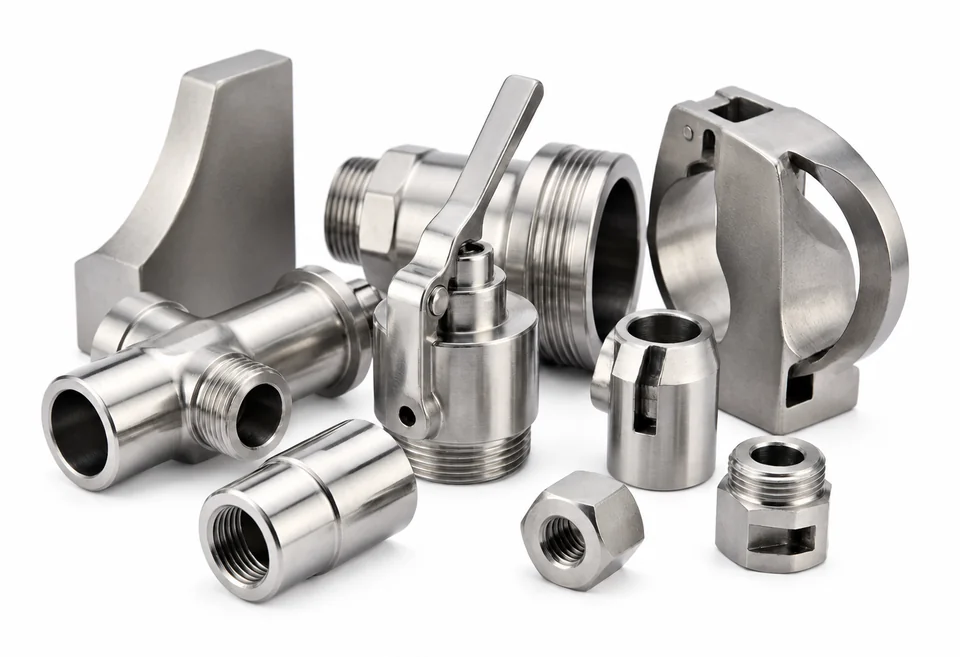

Turned interfaces

Common axis, shoulders & thread runout

Turned component interfaces
Stepped diameters, shoulders and external thread.

Datums explain assembly fit.

Identify the locating axis and contact faces. Review shoulder access, thread runout and surface condition against the mating component.

Dimensional inspection follows those datums rather than assigning one tolerance to every feature.

Production planning

Prototype to repeat supply

End mill and pocketed workpiece illustrating tool reach, clamping and locating surfaces
Pocket machining: tool reach, clamping and locating surfaces.

Prototype

Material, revision and first-evaluation features.

Transition

Fixtures, sequence, surface treatment and inspection access.

Repeat supply

Critical dimensions, change control and release records.

Volume planning · prototype, low-volume and dedicated production

1–10 prototypes

Direct-from-CAD machining; published 3–7 day lead-time reference, without dedicated casting or forging tooling.

50–5,000 parts

Production programs, soft jaws and agreed SPC monitoring.

5,000–100,000 parts

Dedicated fixtures, multi-part pallets and automated loading where appropriate.

Tooling transition

Bridge machining while casting or forging tooling is developed. Above 10,000 pieces, compare casting plus critical-face machining during DFM.

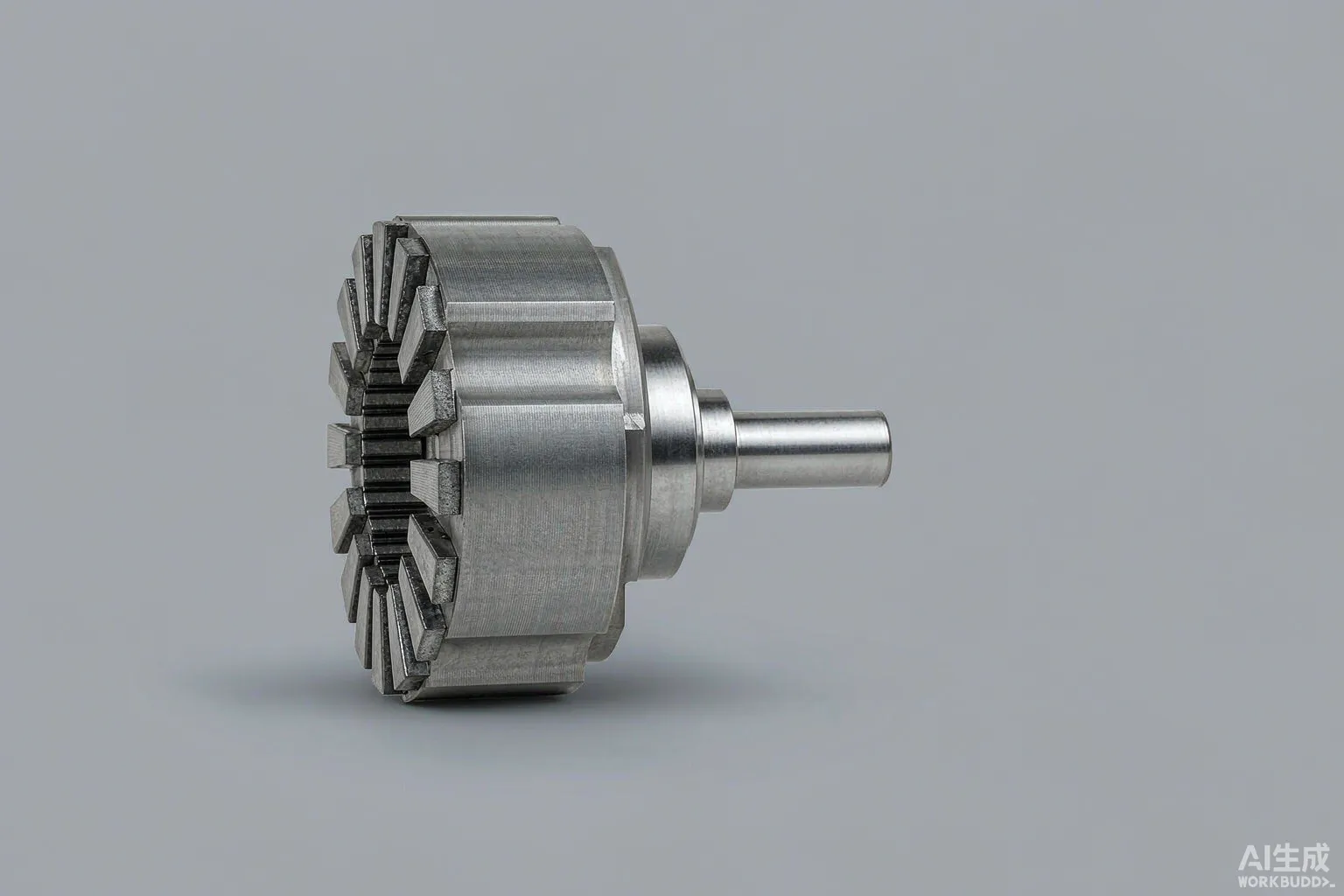

Complex 3D contours and undercuts may benefit from simultaneous 5-axis machining. Feasibility remains subject to access, geometry, material and volume. Machining can also finish customer-supplied castings, forgings, extrusions or fabrications: provide blank and finished drawings.

Design for machining

Tool reach, corner radii & wall support

Three generic machining geometry studies: pocket tool access, rounded internal corner and wall support
Pocket access, internal radius and thin-wall support—reviewed against the drawing.

Deep pockets

Aspect ratios above 4:1 may need special tools. Reduce depth or add access from another side.

Internal corners

Reference radius ≥1.5 mm; larger is generally less costly. Sharp internal corners require EDM.

Thread depth

Above 3× diameter, special taps increase cost and breakage risk. Use ≤3× or consider thread milling.

Thin walls

Aluminum walls below 1 mm can vibrate or distort. Ribbed geometry can improve stiffness.

Inspection

Drawing datums to measurement records

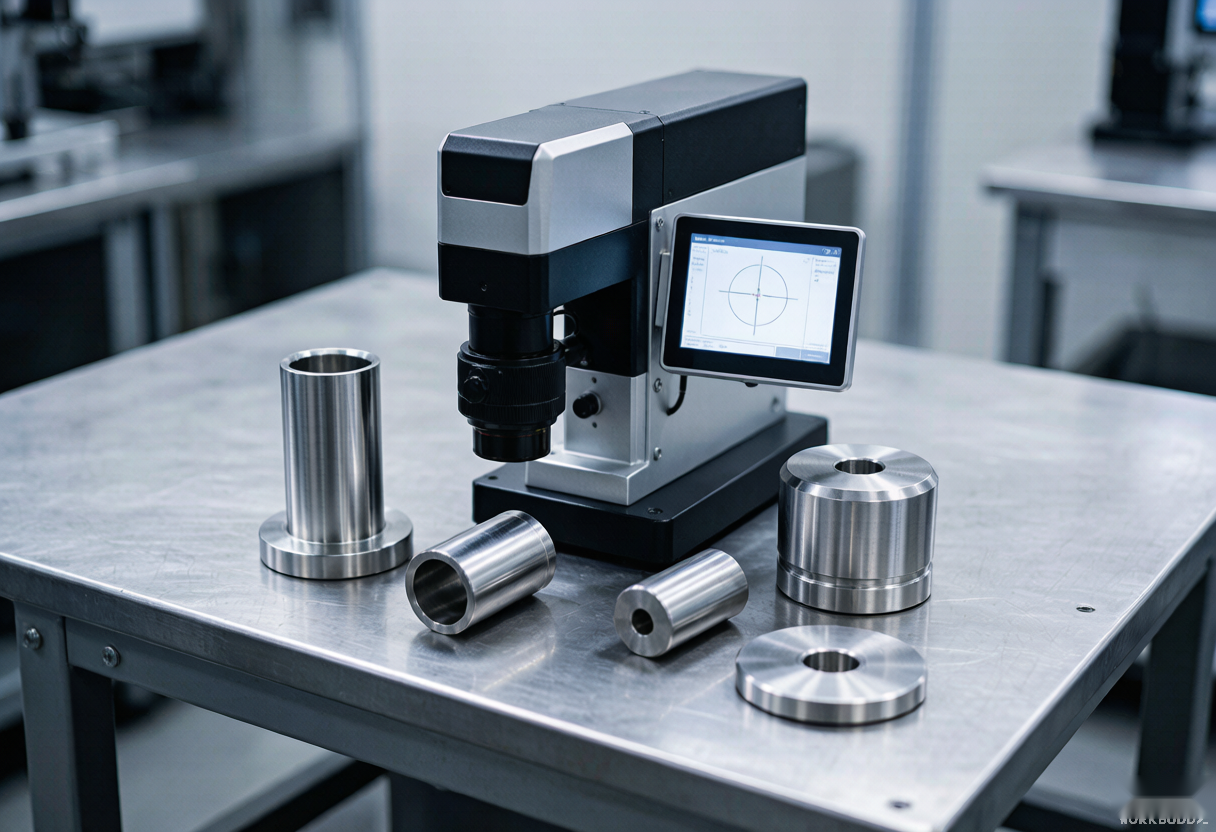

Measuring probe positioned at a bore in a machined housing
Probe measurement at a drawing-defined bore.

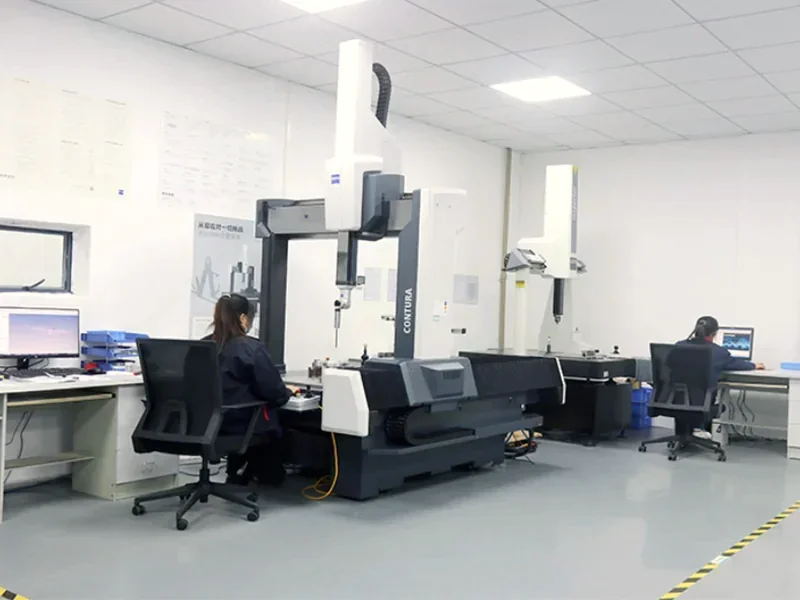

Critical-feature verification

In-process probing, CMM first articles and AQL sampling follow the inspection plan. SPC on designated characteristics is agreed by project.

Heat-specific stock certificates, sealing/bearing-surface finish checks, FAI, inspection plans and project-required PPAP support release.

Measurement planning · environment, capability and report scope

The published 20°C ±0.5°C inspection-environment and ±0.01 mm reference require part-specific measurement planning. Establish CMM features, inspection frequency and reporting scope.

A Cpk ≥1.33 target for designated features must be demonstrated through an agreed capability study; it is not implied by the machining tolerance.

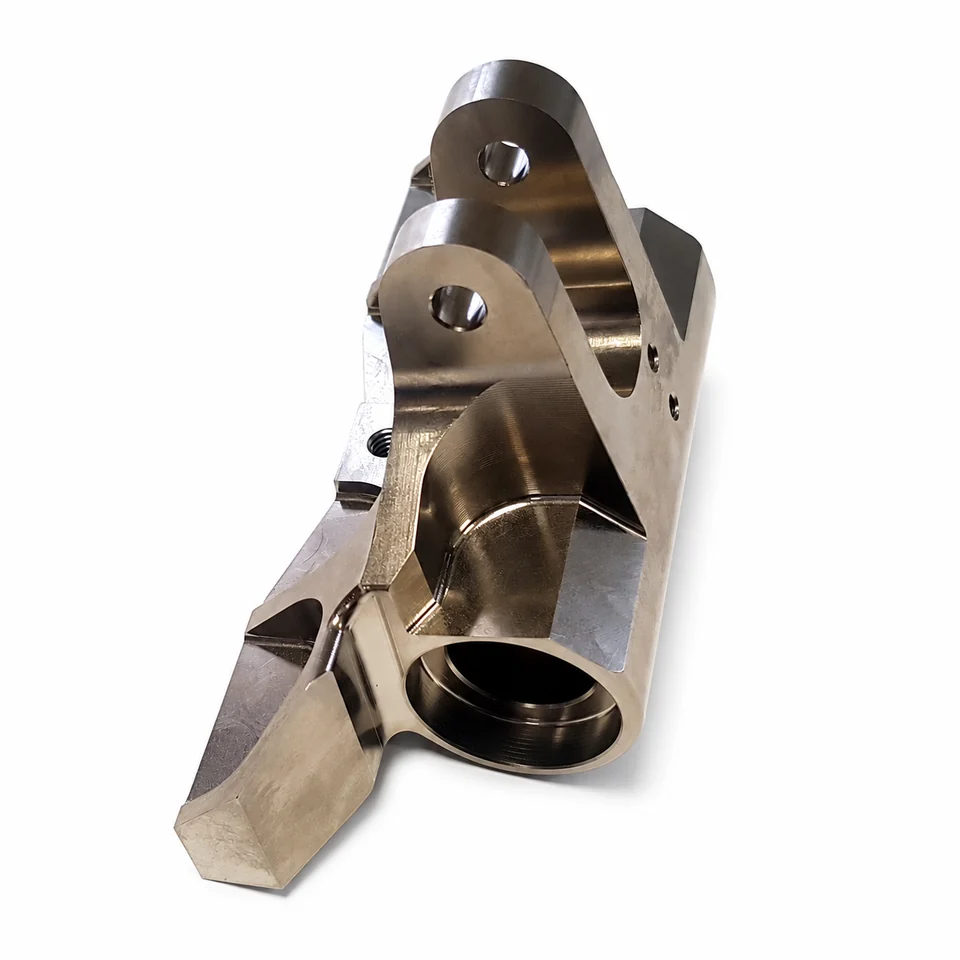

Assembly context

Locating bores, contact faces & fastener access

Generic automation fixture assembly and matching carrier component shown separately to review local interfaces
An assembly and its carrier component show how local interfaces support the complete mechanism.

Function becomes a drawing requirement.

Carry the locating bore, support faces and fastener access into the component specification. Material and finish must suit the intended application.

Applications · material and specification references
ApplicationTypical SpecWhy This Material
Aerospace Components7075-T6, Ti-6Al-4V5-axis structural parts with tight tolerance
Medical Devices316L, Ti, PEEKImplant-grade precision machining
Electronics Enclosures6061-T6, anodizedPrecision housings with cosmetic finish
Automation Parts1215, 4140, hardenedWear-resistant machine components
PrototypesAny materialFirst articles from CAD in 3–7 days
Finishing & dispatch

Protection for finished surfaces

Machined components individually separated in a protective tray with a closer view of a clean machined surface
Separate finished faces, bores and interfaces during packing.

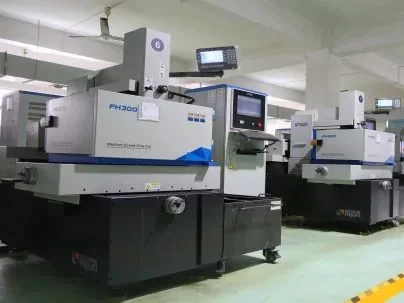

Machining, grinding & packing

The route follows the drawing and material. Specified grinding establishes final size, parallelism and finish; anodized and machined surfaces require separation during shipment.

Production route and inspection scope are agreed per project.

Project definition

Files, features & acceptance

Geometry files

STEP (.stp/.step), IGES or Parasolid (.x_t/.x_b). Export native SolidWorks or Inventor to STEP, or agree another transfer route.

Drawing requirements

PDF or DWG; drawing revision, stock form, critical fits, datums, GD&T, roughness and inspection access.

Production scope

Prototype/annual quantity, surface treatment, quality documentation, MOQ, lead time, packing and commercial terms.

Physical samples and supplied blanks

CMM and optical scanning can support sample review. Customer-supplied castings, forgings, extrusions and fabrications can be quoted as a separate machining operation; include blank drawings and machining requirements.

Start your machining project

Have a drawing?

Engineering review, DFM feedback and quotation for the specified material and interfaces.

Confidential RFQ · NDA available upon request.
