Magnetic Material Specifications

The five permanent magnet families we manufacture, compared side by side. Every grade datasheet referenced below is available as a PDF in our download library.

Grade selection & RFQ inputs

Choose the material family, review the grade tables and use the comparison controls. Include the application, temperature and geometry with the selected grades.

Family Comparison at a Glance

Representative values — see grade tables below for exact data.

Selected reference grades. Values from different material systems, source documents or specimen conditions must be reconciled before design approval. Confirm the applicable material specification, source revision and operating conditions.

Scroll horizontally to view all columns. Keyboard: focus the table and use the arrow keys.

PropertyNdFeBSmCoFerriteAlNiCoFlexible
Max Energy ProductGrades through N54; see grade-specific (BH)max16–32 MGOe3–5 MGOe1.5–6 MGOe0.6–2 MGOe
Max Operating TempSee grade-specific dataSee grade-specific dataSee grade-specific dataSee grade-specific dataSee grade-specific data
Br Temp Coefficient-0.11%/°C-0.03%/°C-0.18%/°C-0.02%/°C-0.19%/°C
CoercivityVery highHighMediumLowLow
Corrosion ResistanceNeeds coatingExcellentExcellentExcellentGood
MachinabilityGrinding onlyGrinding onlyGrinding onlyCast/sintered, grindableCuttable, punchable
Relative Cost / MGOeLowHighLowestMediumLow

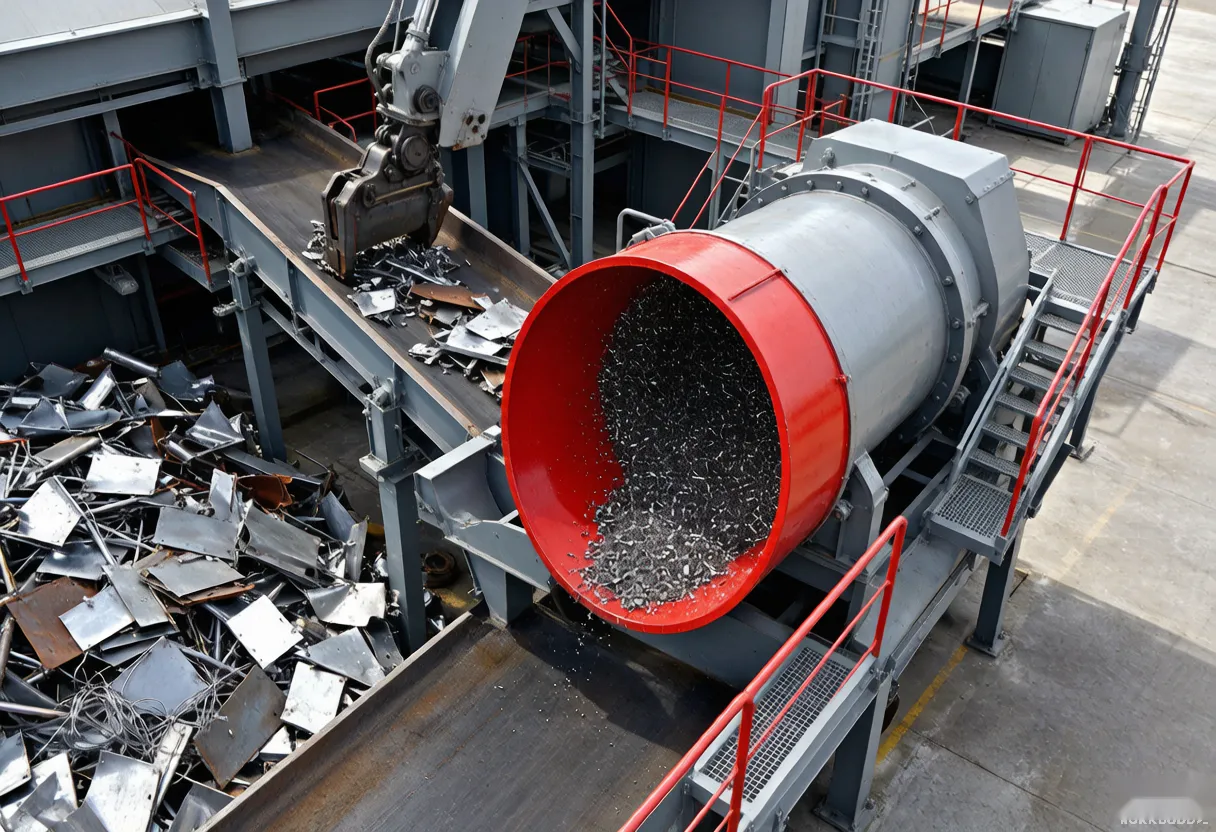

Typical UseMotors, sensors, holdingHigh temp, aerospaceVolume, separatorsMeters, high tempSignage, gaskets, motors

This page provides selected reference grades only. The full NdFeB directory and SmCo directory retain the complete published tables. Values must be checked against the applicable datasheet and operating conditions before approval.

NdFeB — Selected Grades

35 individual datasheets in the original download library; the table below is a selected-grade overview. Temperature limits are grade- and geometry-specific; consult the selected specification.

Select up to four grades to compare the published reference values. Check the full material page and test conditions before design approval.

Scroll to view more columns.

GradeBr (kGs)bHc (kOe)iHc (kOe)(BH)max (MGOe)Max TempDatasheet
N3511.7–12.1≥10.8≥1233–3680°CPDF
N38M12.2–12.6≥11.4≥1436–39100°CPDF
N42SH12.8–13.2≥12.0≥2040–43150°CPDF
N45SH13.2–13.7≥12.5≥2043–46150°CPDF
N42UH12.8–13.2≥12.0≥2540–43180°CPDF
N35EH11.7–12.1≥10.8≥3033–36200°CPDF
N35TH11.7–12.1≥10.8≥3233–36220°CPDF
N52H14.1–14.5≥13.5≥1750–53120°CPDF
N54SH14.4–14.8≥13.8≥2052–55150°CPDF

View all 35 NdFeB grade datasheets

This selected-grade overview is not the complete supply range. See the 70 conventional and 78 GBD reference specifications, original curves and grade-specific conditions. Development status is kept separate from production availability.

SmCo — Selected Grades

1:5 and 2:17 series. 12 grade datasheets available.

Compare up to four SmCo references; keep the 1:5 / 2:17 series and matching datasheet conditions with the selection.

Scroll to view more columns.

GradeSeriesBr (kGs)iHc (kOe)(BH)max (MGOe)Max TempDatasheet
S22H2:1710.2–10.8≥2520–24300°CPDF
S26H2:1711.0–11.5≥2524–28300°CPDF
S30H2:1711.8–12.4≥2528–32300°CPDF
S32H2:1712.2–12.8≥2530–34300°CPDF
HTS22H2:17 HT10.2–10.8≥2520–24350°CPDF
S28M2:1710.8–11.3≥1826–29250°CPDF

View all 12 SmCo grade datasheets

The 34 YX / YXG reference specifications add SmCo 1:5 and 2:17 data with individual 250–350°C references. They are not automatic equivalents of the selected S / PS grades here.

Ferrite

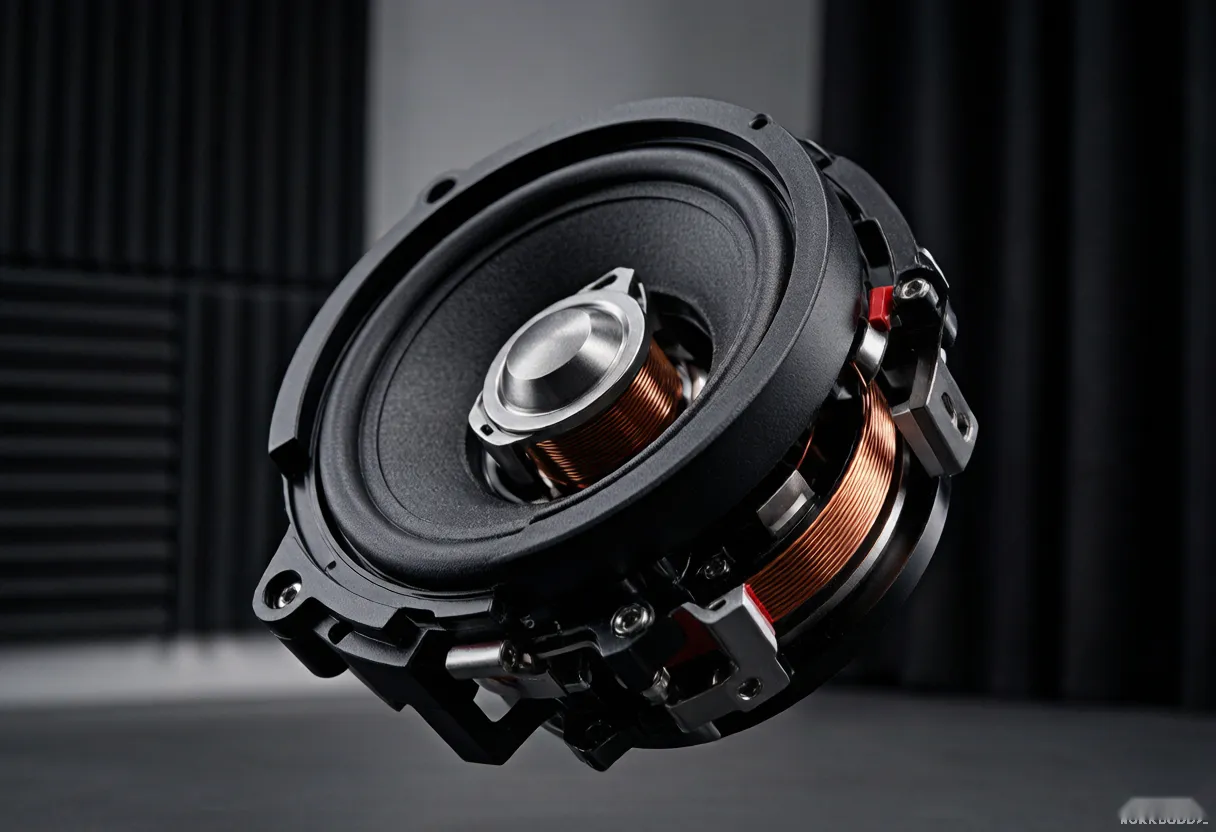

A ceramic family for cost-sensitive magnetic designs.

SELECTION GUIDEMaterial notes and downloadsExplore applications and requirements

Ferrite (Ceramic)

Y30 / C8 references: Br 3.8–4.2 kGs, (BH)max 3.5–4.5 MGOe and 250°C. Grade names are not automatic equivalents. Review the operating point, temperature extremes, exposure and mechanical mounting for the selected ceramic part.

Download ferrite datasheet

AlNiCo

Thermal stability with magnetic-circuit requirements reviewed.

SELECTION GUIDEMaterial notes and downloadsExplore applications and requirements

AlNiCo

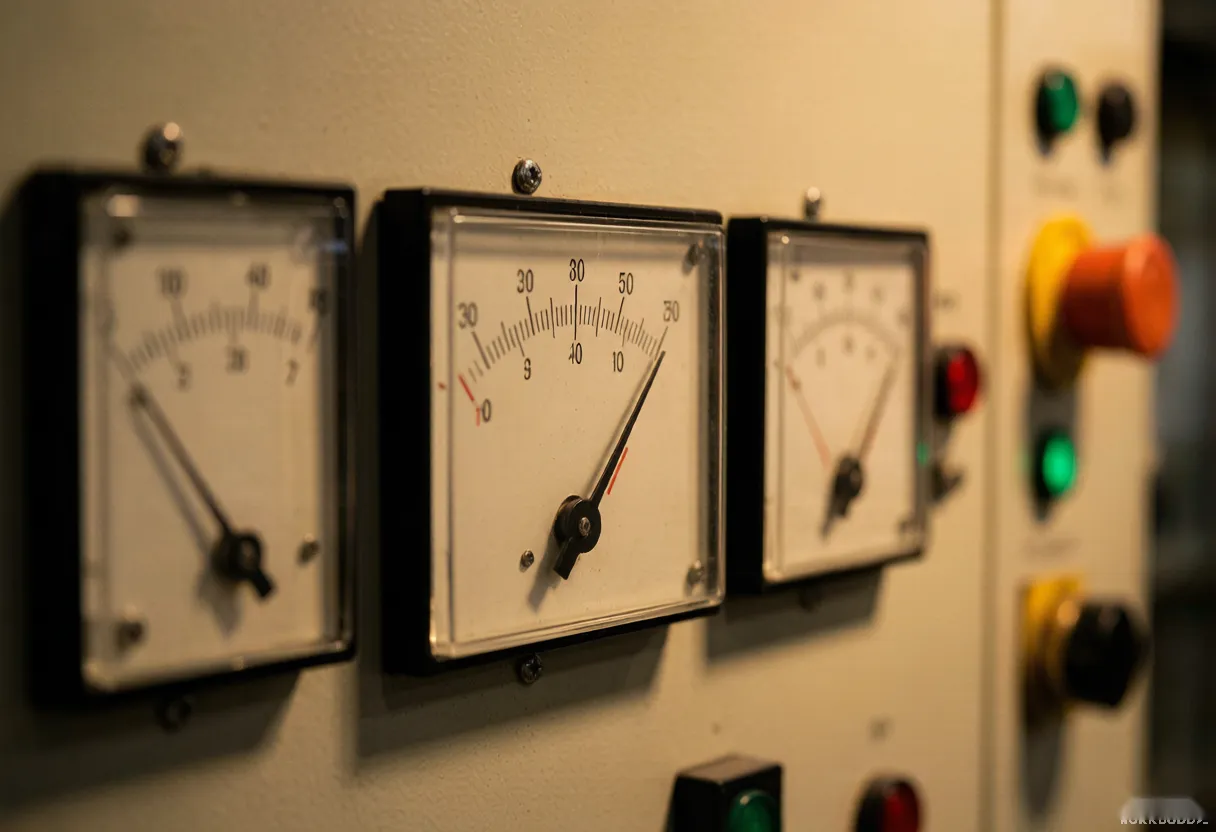

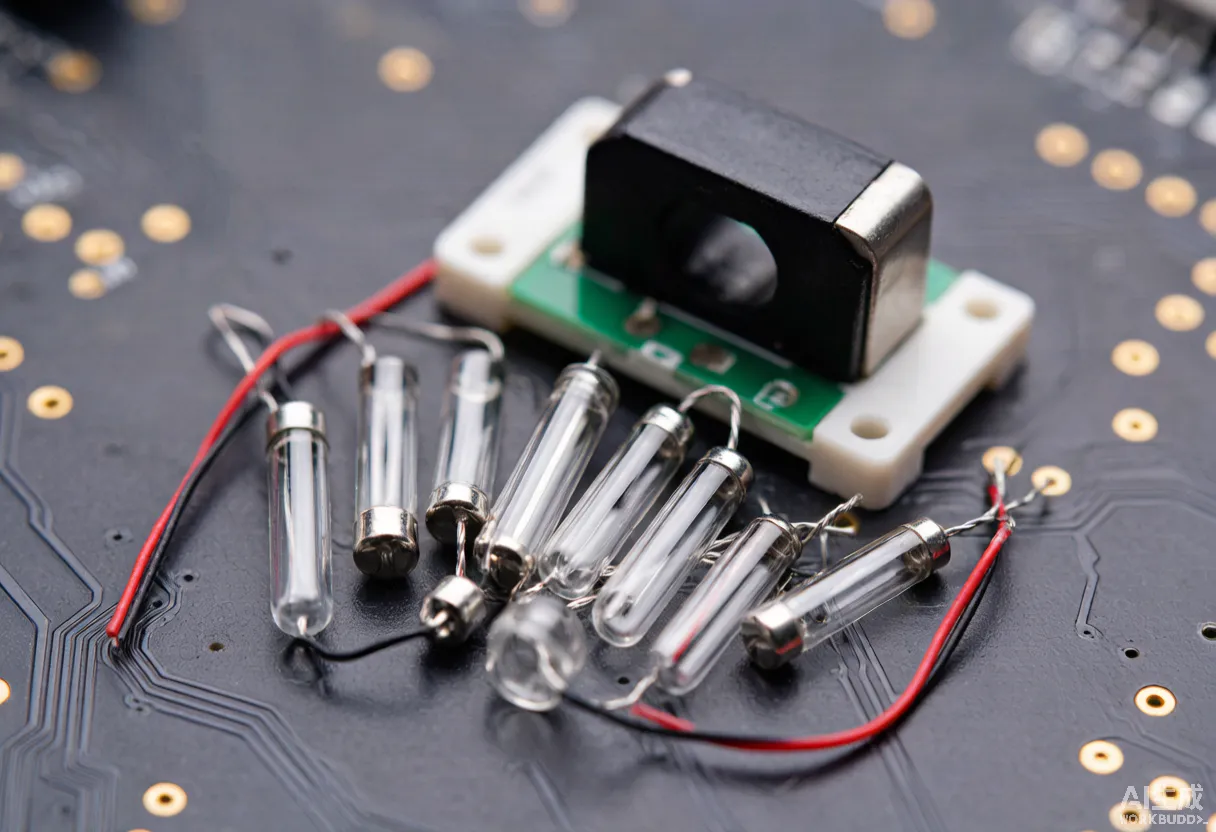

Cast and sintered. Br up to 12.5 kGs with excellent temperature stability (-0.02%/°C) to 450°C+. Low coercivity — must be magnetized in-circuit or with a keeper. Classic choice for instruments and sensors.

Download AlNiCo properties

Flexible Magnets

Sheets, strips and converted magnetic parts.

SELECTION GUIDEMaterial notes and downloadsExplore applications and requirements

Flexible (Rubber)

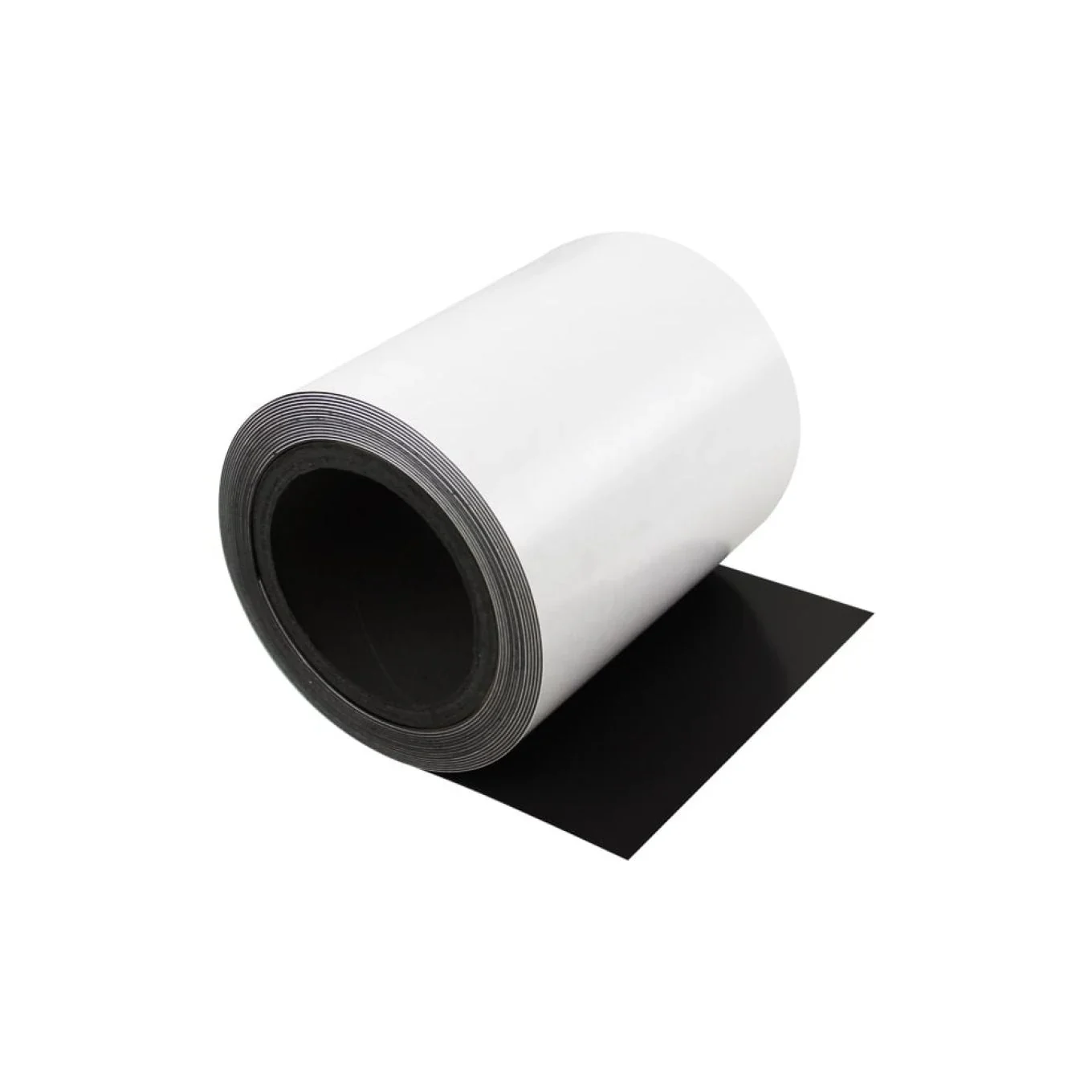

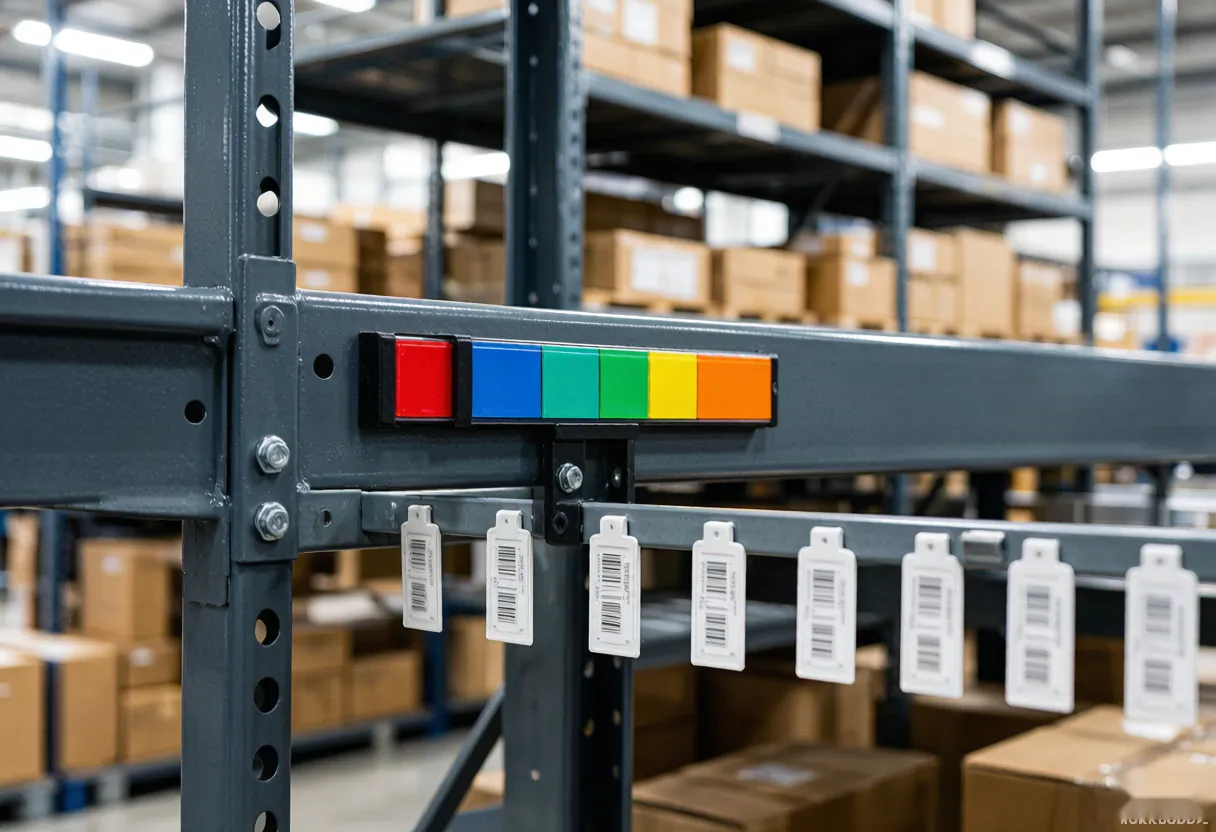

Isotropic (0.6–0.8 MGOe) and anisotropic (1.4–2.2 MGOe) sheet and strip, 0.3–3 mm thick. Punchable, cuttable, and printable with vinyl or adhesive backing. Ideal for signage, gaskets, and small motors.

Download flexible overview

Material selection support

Tell us the force, temperature, and environment — we recommend the most cost-effective grade with margin calculated for your geometry.
