Functional section
Mark slots, screw channels, mating faces and minimum-clearance areas.
Profile interfaces
Custom Aluminum Profiles.
Custom profiles engineered around section geometry, straightness, mechanical performance, visible surfaces and downstream machining or assembly.
Define the supplied condition, critical dimensions and acceptance plan in the drawing review. Published process references depend on material, geometry and the agreed order scope.
Start with the Cross-Section.
Alloy and temper
Specify the required standard and material condition for the application.
Delivered part
Confirm length, straightness, twist, visible faces and downstream machining.
Production route, manufacturing responsibility, available documentation and acceptance criteria are confirmed for the particular product and order.
For Procurement & Engineering
Define the Section and Finished Length
Send a 2D drawing and 3D model where available, together with annual volume and the requirements below. Our engineering review confirms process feasibility before pricing.
- Section drawing and functional datums
- Mechanical properties and temper
- Visible surfaces and finish acceptance
- Annual weight, cut lengths and packaging
Supply Framework
| Commercial route | Drawing-based quotation |
|---|---|
| Tool ownership | Defined in the tooling agreement |
| Quality plan | Project-specific inspection and documentation |
| Confidentiality | Mutual NDA available before detailed review |
| Delivery | Export packaging and Incoterms agreed per project |
Feature review
Bring mating fit into the section review.
Mating profiles

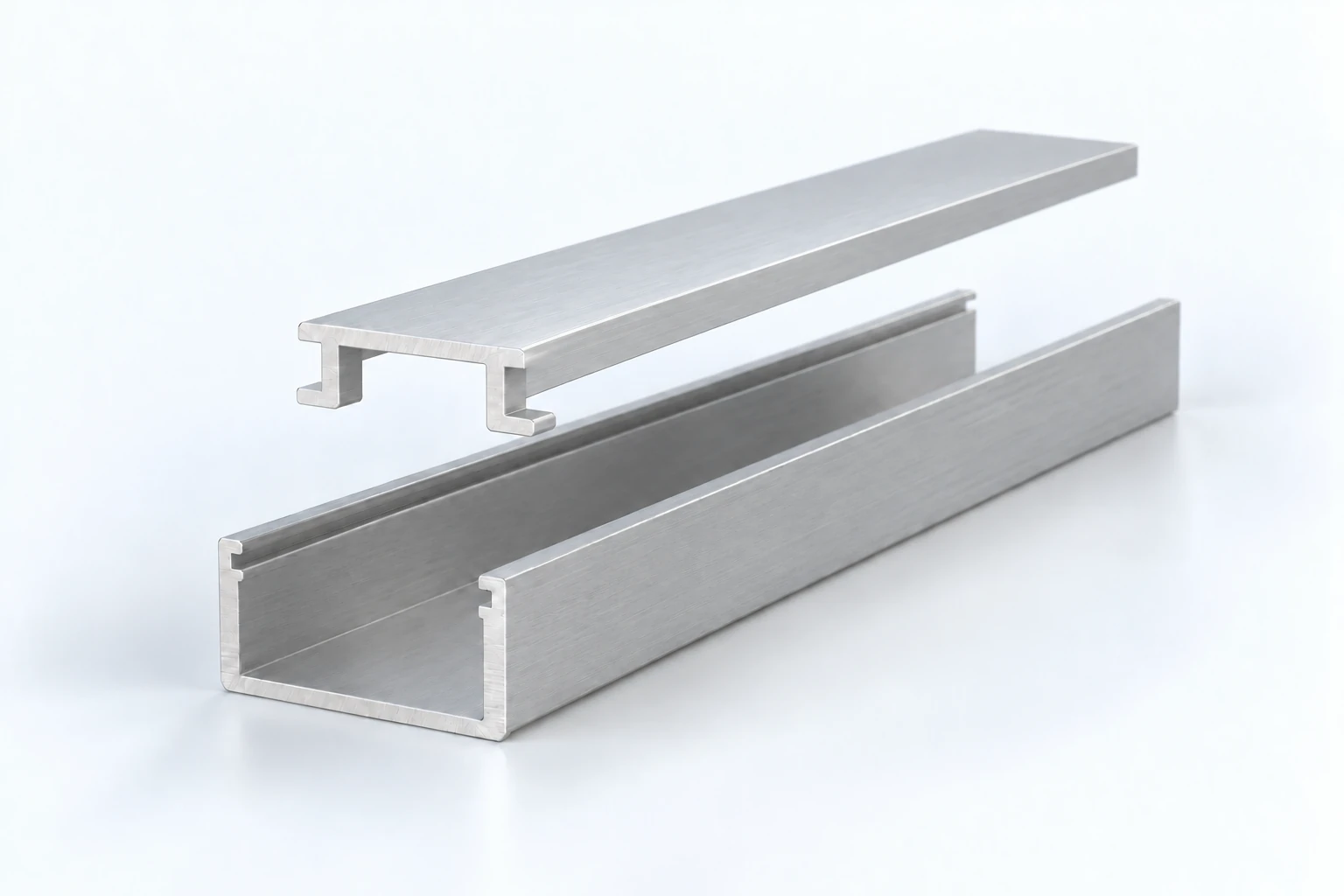

The channel and cover use complementary lips along their length. Define the mating surfaces and assembly direction together, including clearance after the specified finish.
For a guide, cover or equipment enclosure, separate cross-section fit from cut length, straightness and added mounting features. Supply the mating-part drawing when fit depends on two profiles.
Manufacturing Scope
Section accuracy, straightness and finished profiles.
Tooling
Custom die review and extrusion simulation as required
Supply
Mill length, cut-to-length or machined parts
Finishing
Anodizing, powder coat, brushing and polishing
Inspection
Section, straightness, twist and finish controls
Representative Components
Custom Industrial Aluminum Profiles — Product Gallery
- Cross-section
Mark slots, channels and mating clearances.
- Delivered length
Specify straightness, twist, cut length and machining.
- Visible surfaces
Agree alloy, temper, finish and handling requirements.
Review together: profile geometry, alloy and temper; cutting, holes and mounting features; surface finish and dimensional control.

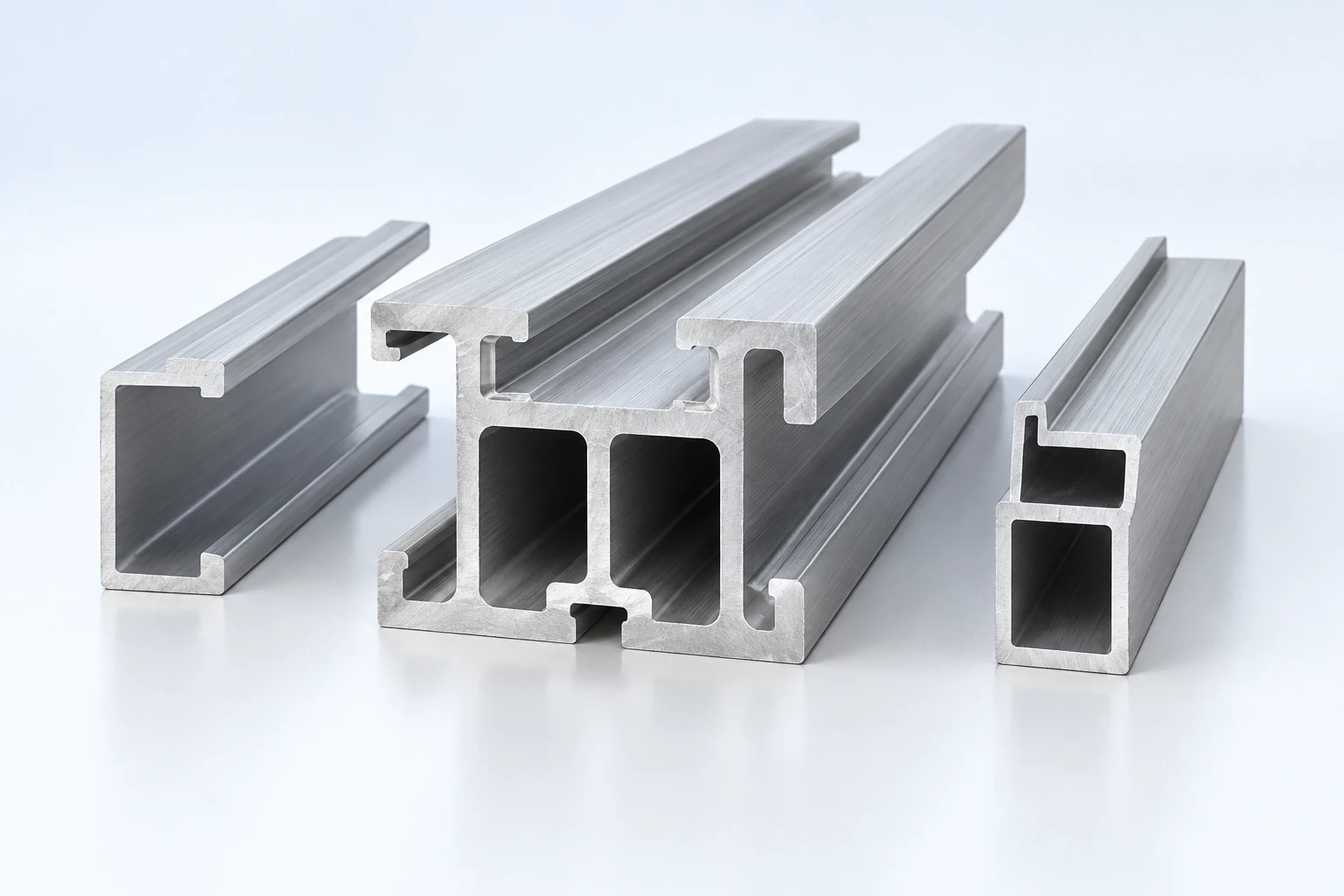

Profile cross-sections with fins, channels and hollow sections.
Structural machine-frame profile.
Hollow extrusion profile for an electronics enclosure.
Prepare the project review
Connect the section to the finished interface.
Send the part drawing, functional interfaces, operating conditions and production requirements.
- Profile geometry, alloy and temper
- Cutting, holes and mounting features
- Surface finish and dimensional control
Design, process and application reference
Typical Applications
- Machine frames and guards
- Electronics and thermal profiles
- Transport and energy structures
- Architectural and equipment profiles
Materials & Finishes
- 6063 for finish and extrudability
- 6061 for structural performance
- 6005A for transport structures
- Project-specific tempers
Frequently Asked Questions
What determines the extrusion MOQ?
Profile size, alloy, finishing route and production press all matter. Annual weight and release quantities are reviewed together.
Can profiles arrive fully machined?
Yes. Cutting, drilling, milling, tapping and managed finishing can be combined under one supply route.
Have a Drawing for Custom Industrial Aluminum Profiles?
Send the model, volume and critical requirements for engineering review and a project-specific quotation.
