Critical dimensions
Identify the datum scheme, fits and the features requiring measurement records.
Critical machined features
Precision Aluminum Machining.
Machined aluminum prototypes and production components supplied from drawing and 3D model, including finishing, critical-dimension inspection and controlled revisions.
Define the supplied condition, critical dimensions and acceptance plan in the drawing review. Published process references depend on material, geometry and the agreed order scope.
For Procurement & Engineering
Specify the Critical Machined Features
Send a 2D drawing and 3D model where available, together with annual volume and the requirements below. Our engineering review confirms process feasibility before pricing.
- Datum structure and critical-to-quality features
- Material temper and certification
- Cosmetic surface classification
- Prototype quantity and production forecast
Supply Framework
| Commercial route | Drawing-based quotation |
|---|---|
| Tool ownership | Defined in the tooling agreement |
| Quality plan | Project-specific inspection and documentation |
| Confidentiality | Mutual NDA available before detailed review |
| Delivery | Export packaging and Incoterms agreed per project |
Protect the Datums and the Visible Faces.
Material and condition
Confirm alloy, temper, stock route and any material-certification requirements.
Final finish
Agree anodizing or coating, masking, post-finish dimensions and handling protection.
Production route, manufacturing responsibility, available documentation and acceptance criteria are confirmed for the particular product and order.
Feature review
Give each critical feature a clear acceptance requirement.
Pocket + datum faces

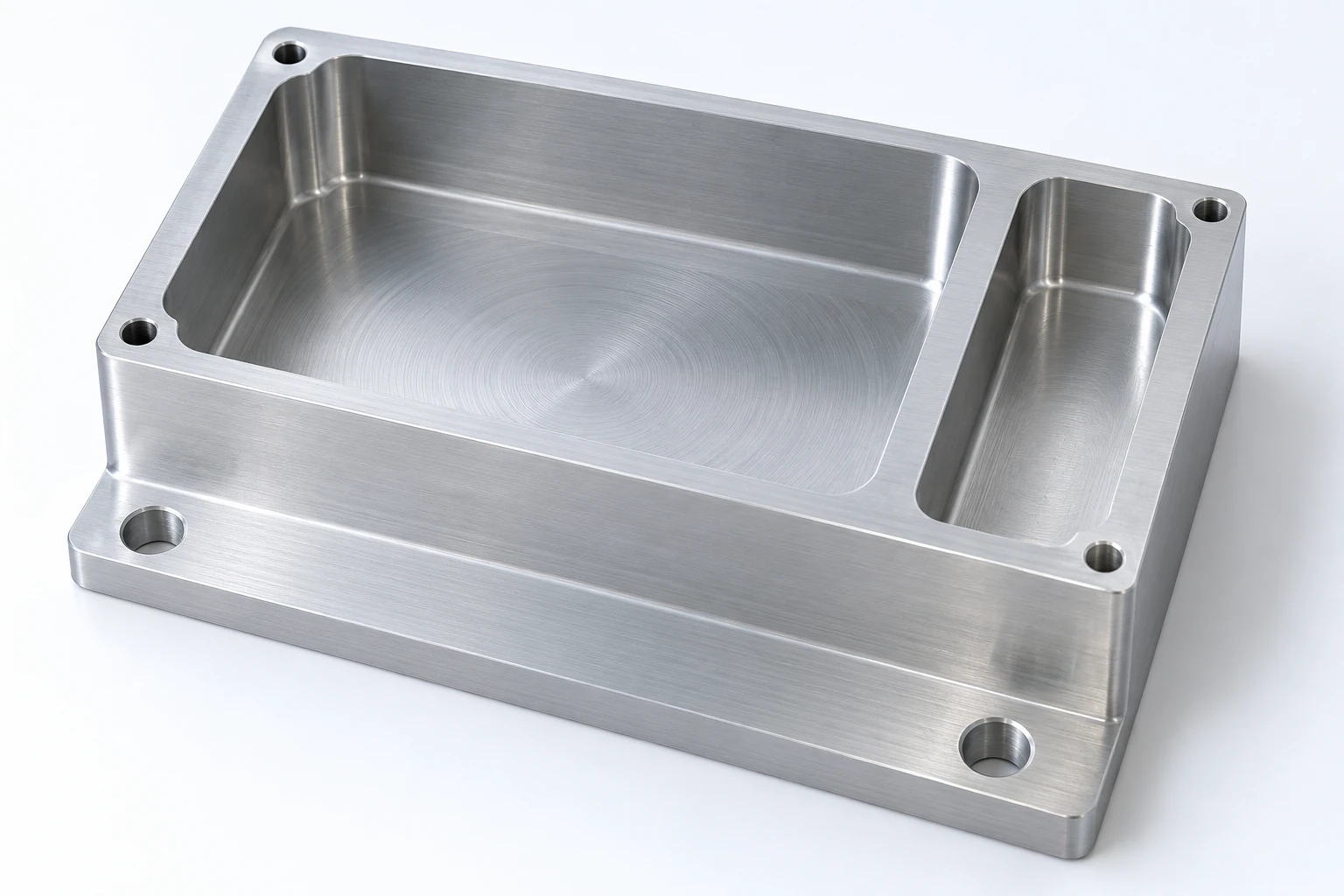

The pocketed body combines thin walls, a broad rim and mounting holes. Separate the faces that locate the assembly from the pocket walls and surfaces chosen primarily for clearance.
For a fixture or equipment housing, connect clamping and machining access to the datum scheme. Confirm which dimensions and visible surfaces must be accepted after anodizing or coating.
Manufacturing Scope
Machined datums and inspected critical features.
Equipment
3-, 4- and 5-axis milling plus turning
Tolerance
Drawing-specific critical tolerances after review
Finishing
Anodizing, conversion coating, bead blast and marking
Inspection
CMM and gauge plans for critical features
Representative Components

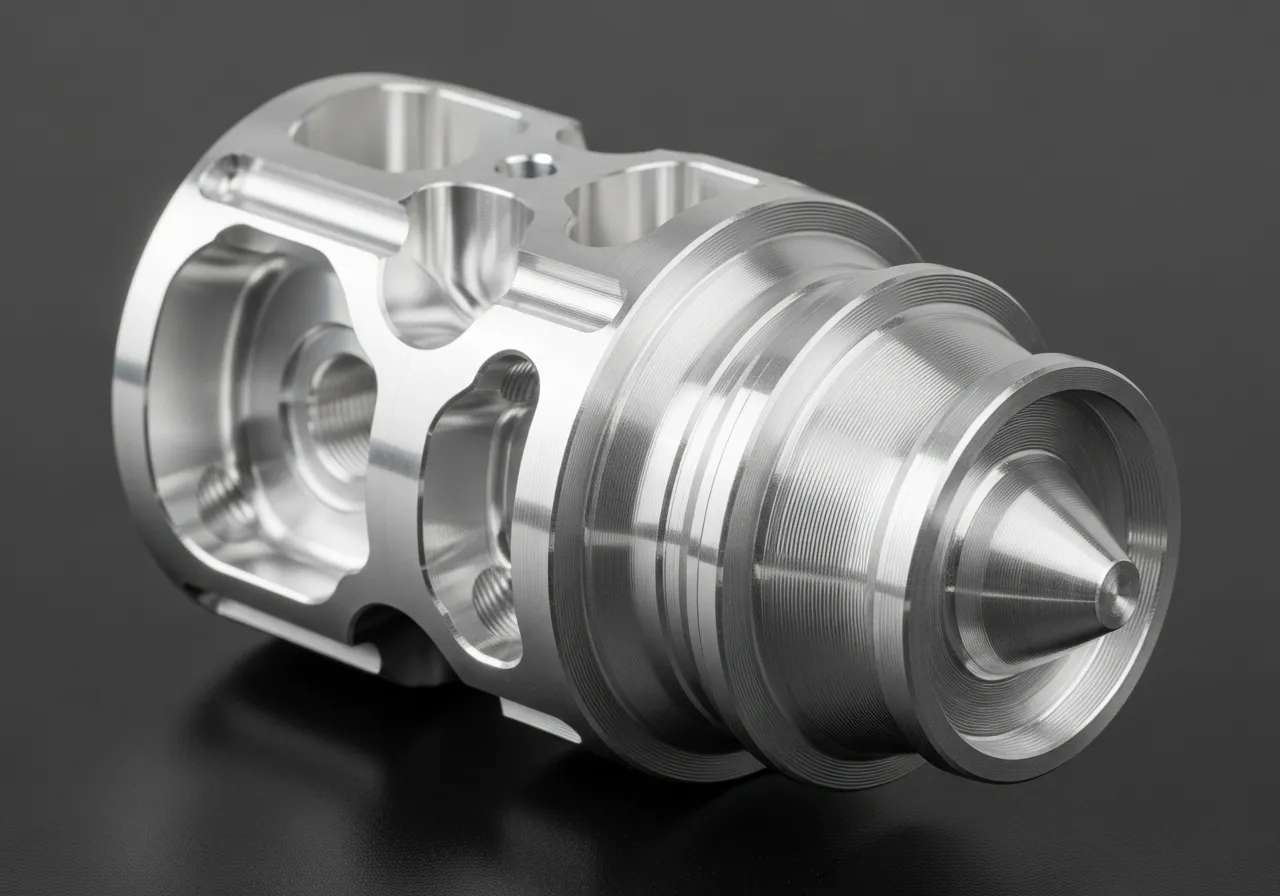

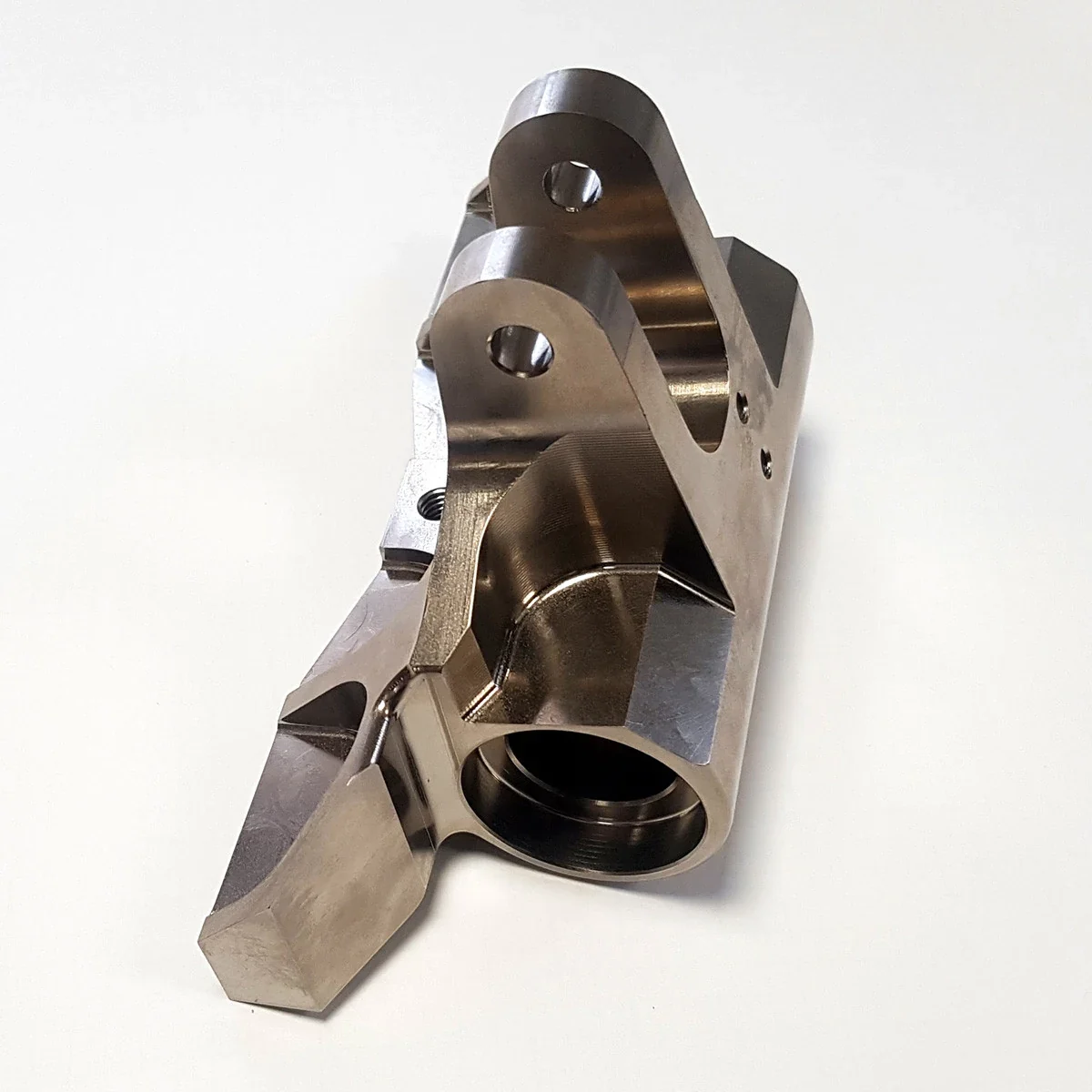

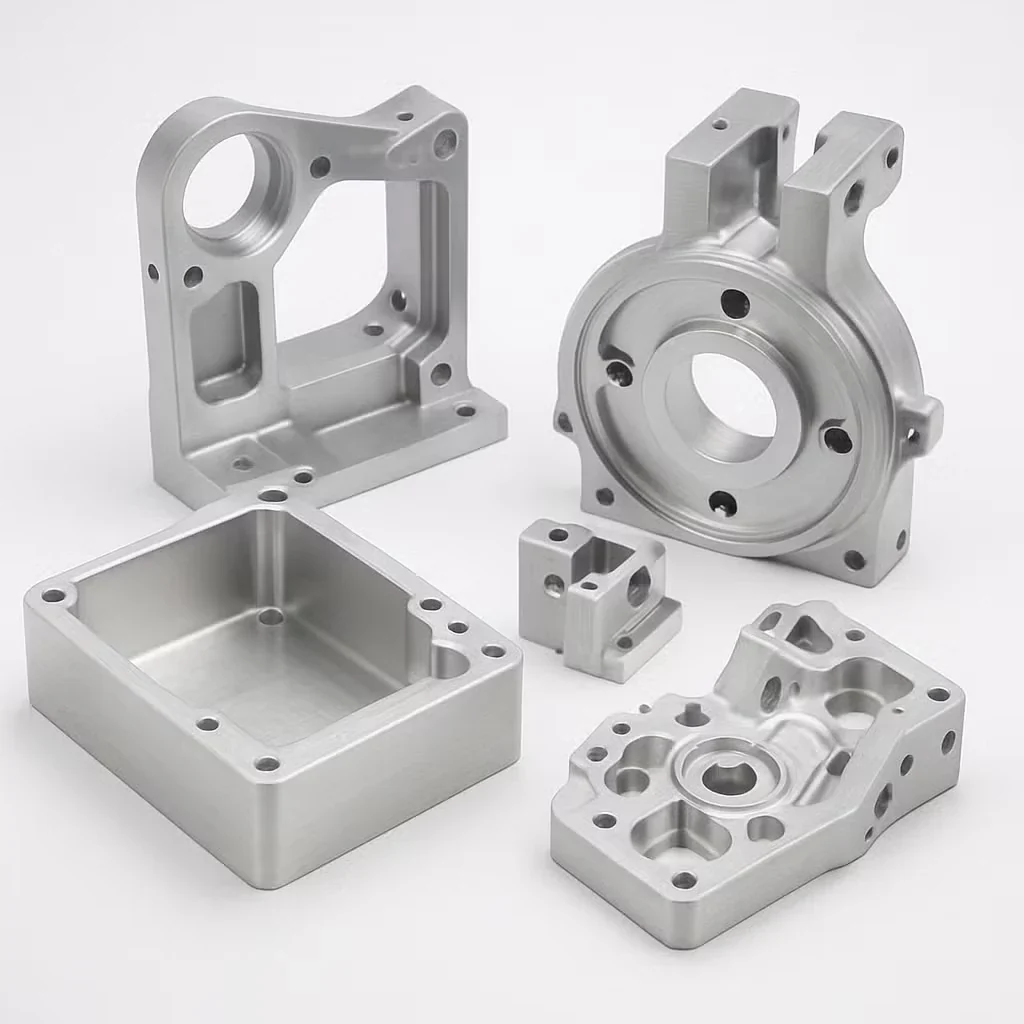

Precision Aluminum CNC Machining — Product Gallery
- Locate the part
Mark datum faces and clamping limits.
- Machine the features
Review pockets, thin walls, bores and tool access.
- Protect finished faces
Agree dimensional checks, anodizing boundaries and handling.
Review together: material, datum scheme and tolerances; pockets, bores and machining access; surface condition and inspection records.
Instrument-housing form with a central circular opening.
Circular mounting plate with repeated hole patterns.
Machined block with intersecting port interfaces.
Prepare the project review
Identify the features that determine fit.
Send the part drawing, functional interfaces, operating conditions and production requirements.
- Material, datum scheme and tolerances
- Pockets, bores and machining access
- Surface condition and inspection records
Design, process and application reference
Typical Applications
- Automation fixtures
- Optical and electronic housings
- Robotics components
- Prototype and bridge production
Materials & Finishes
- 6061-T6
- 7075-T6
- 6082 and 2024 by requirement
- Cast plate and extrusion stock
Frequently Asked Questions
Can you support prototypes before production?
Yes. Low-volume machining can validate geometry and assembly before a casting or extrusion production route is released.
Can anodizing dimensions be controlled?
Yes. Coating buildup, masking and post-finish inspection requirements should be defined on the drawing.
Have a Drawing for Precision Aluminum CNC Machining?
Send the model, volume and critical requirements for engineering review and a project-specific quotation.
