Custom Magnetic Assemblies

Drawing-led integration of magnets, mechanical parts and agreed assembly-level tests.

Open rectangular housing, block, cover plate and fasteners
Open rectangular housing, block, cover plate and fasteners

Assembly definition & integration capabilities

Specify the complete assembly.

123

From drawing to acceptance

  1. Controlled drawingRevision and mating datums
  2. Component boundaryParts, joining and retention
  3. Acceptance planFunctional checks and records

Drawing and assembly inputs

  1. Assembly drawing and revision
  2. Bill of materials and supplied components
  3. Magnetic function and operating conditions
  4. Interface datums and critical dimensions
  5. Inspection records and sample acceptance

Agree what is included

Identify the work included in the finished assembly: component manufacture, joining, potting, magnetization, inspection and packaging.

Integration Capabilities

Define the Delivery Boundary

Use the approved drawing revision to align quotation, sample approval and production release.

CapabilityDetailsVolume Range
Magnet bondingEpoxy, anaerobic, PSA tape — shear-tested1–1M+ pcs
Insert moldingNylon, PPO, PPS overmolding on magnets/metal inserts5k+ pcs (tooling required)
MachiningTurning, milling, grinding on assembly components1–100k pcs
Sensor integrationHall-effect, reed, encoder magnet + sensor pairing1k+ pcs
Potting & sealingEpoxy potting to IP67, urethane for vibration100+ pcs
Wire harness & solderingMagnet + coil assemblies, soldered connections500+ pcs

Potted forms & project documentation

Potted assembly section
Potted assembly section

Custom Magnetic Assemblies — Product Gallery

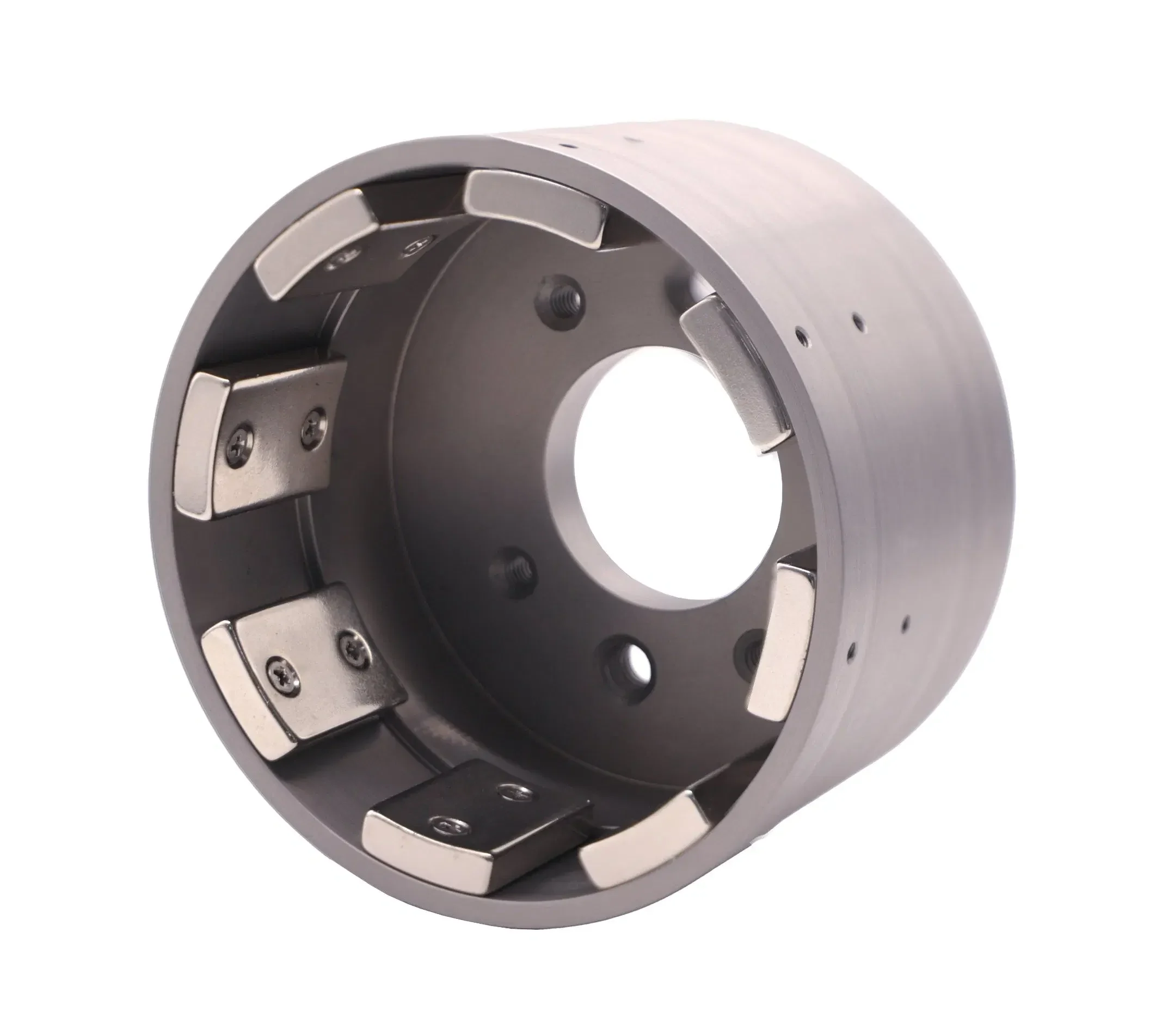

Machined Housing

Magnet positions matched to the assembly drawing.

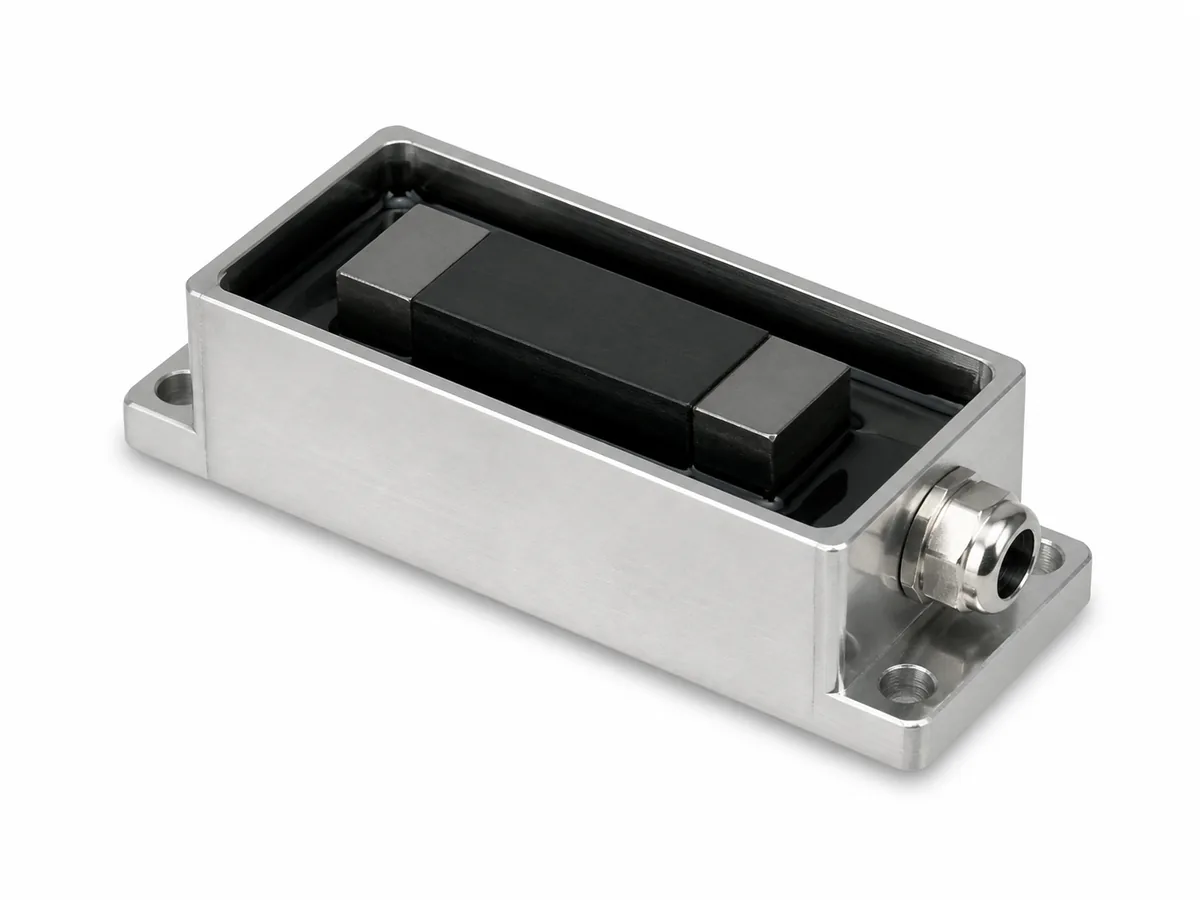

Potted Assembly

Potting and enclosure selected for service conditions.

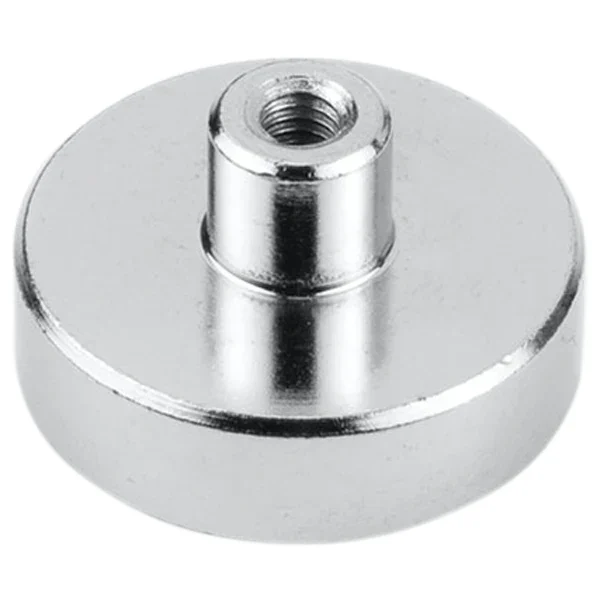

Threaded Pot Magnet

A holding element with a threaded interface.

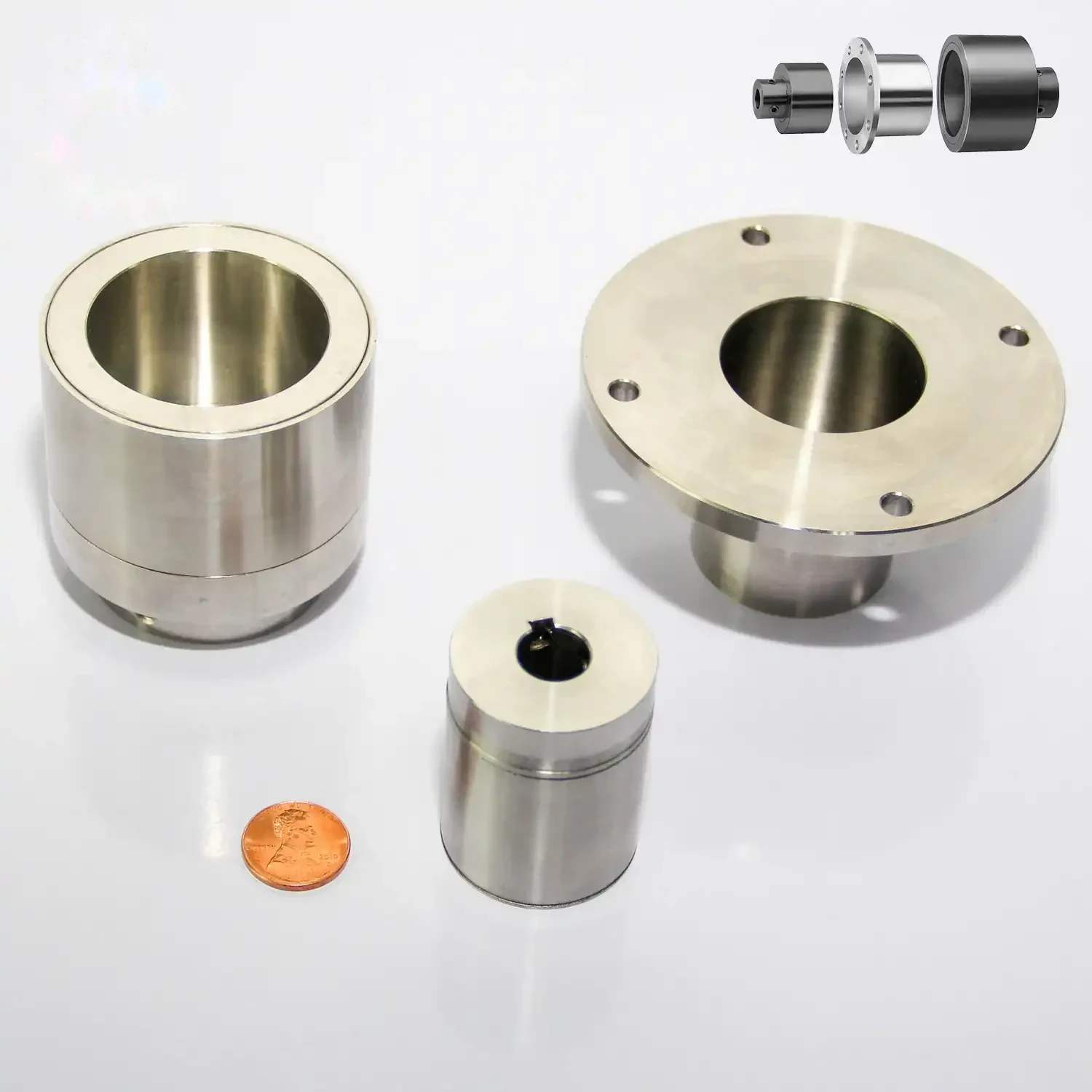

Custom Assembly Forms

Part arrangement and retention defined by drawing.

How to Start

  • Complete drawing package — fastest path — we quote the assembly as-is and flag DFM issues early in the process
  • Performance specification — tell us what the assembly must do (force, torque, field) and the space envelope — we design and quote
  • Concept or problem statement — describe the function you need — our engineers propose 2–3 design approaches with trade-offs before quoting

Quality Documentation

Custom assemblies ship with documentation appropriate to your industry:

  • Standard — inspection report with dimensional and functional test data per shipment
  • Automotive (IATF) — PPAP documentation per project requirements, process capability studies, control plan, MSA
  • Medical & regulated — device master record support, process validation (IQ/OQ/PQ), lot traceability

Interfaces, inspection & validation

Threaded pot magnet interface
Threaded pot magnet interface

Turn the Drawing into an Inspection Plan

Share the drawing or application description, BOM, quantity and functional target. Define what is checked on the complete assembly rather than only its individual components.

Scroll horizontally to read the complete diagram.

Custom assembly interfaceConcept interface showing drawing, components, assembly and project-defined checks.DrawinginterfacesComponentsand retentionAssemblysequenceChecksby project
  • Functional acceptance and 100% test-record requirements
  • Mating datums, retention and material interfaces
  • First-article documentation, traceability and change control

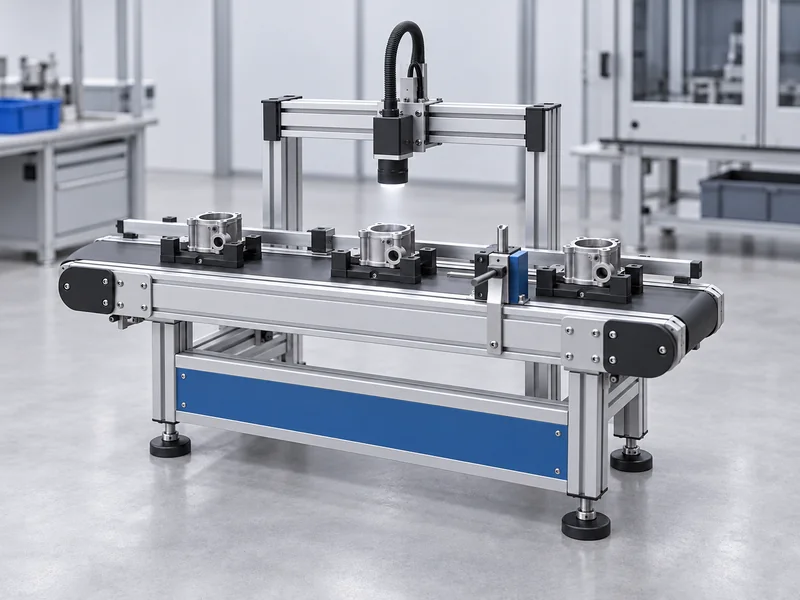

Validation & Testing of Your Assembly

Magnetic Verification

Flux density, pole pattern and magnetization verified per the agreed plan — hall-probe mapping, Helmholtz coil measurements, or functional pull tests.

Mechanical Verification

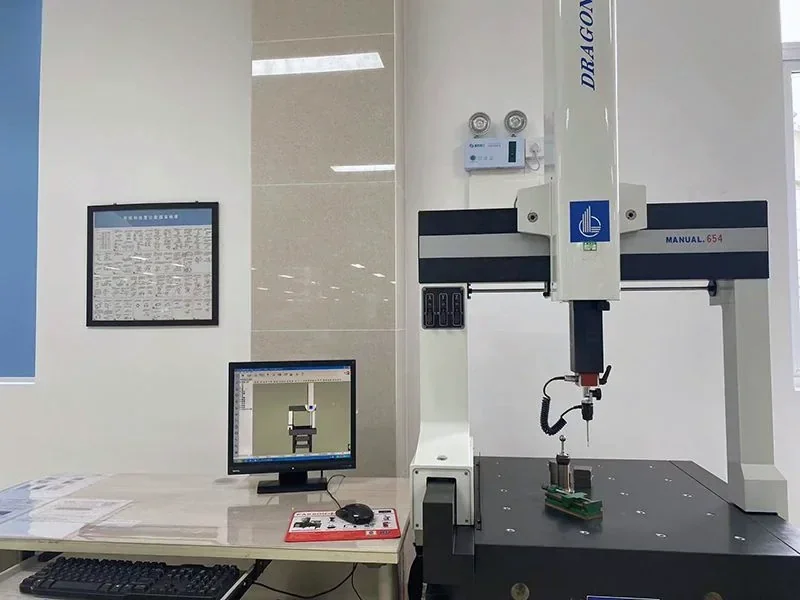

Bond strength, concentricity and dynamic balance validated for rotating parts; dimensional reports on critical interfaces.

Acceptance & Sample Approval

Identify the assembly revision, test conditions and pass criteria before approving a reference sample.

Integrated assembly applications

Integrated component supply

Buying a complete assembly brings component purchasing, inspection, inventory and assembly work into one supply scope.

  • Single-source accountability — one supplier coordinates the magnet, machining and molding work included in the assembly.
  • Integrated design review — evaluate material and process choices together; a molded feature may replace a machining operation.
  • Functional testing on the finished part — torque, flux, pull force, electrical continuity — tested as an assembly, not just as components
  • Kit packaging available — assemblies packaged for direct-to-line delivery — labeled, barcoded, and sequenced to your production schedule

Applications

ApplicationTypical SpecWhy This Material
Sensor ModulesMagnet + PCB + housingPosition, speed, and current sensing modules
Magnetic Chucks & WorkholdingSteel + magnet arrayCustom workholding for machining operations
Magnetic Separation EquipmentMagnet grid + stainless housingFood and pharmaceutical contaminant capture
Door & Closure ActuatorsMagnet + latch mechanismSoft-close and position-holding assemblies
Consumer Product ModulesMulti-component integrationComplete functional modules for product OEMs

Manufacturing route & records

Manufacturing route, inspection and packing

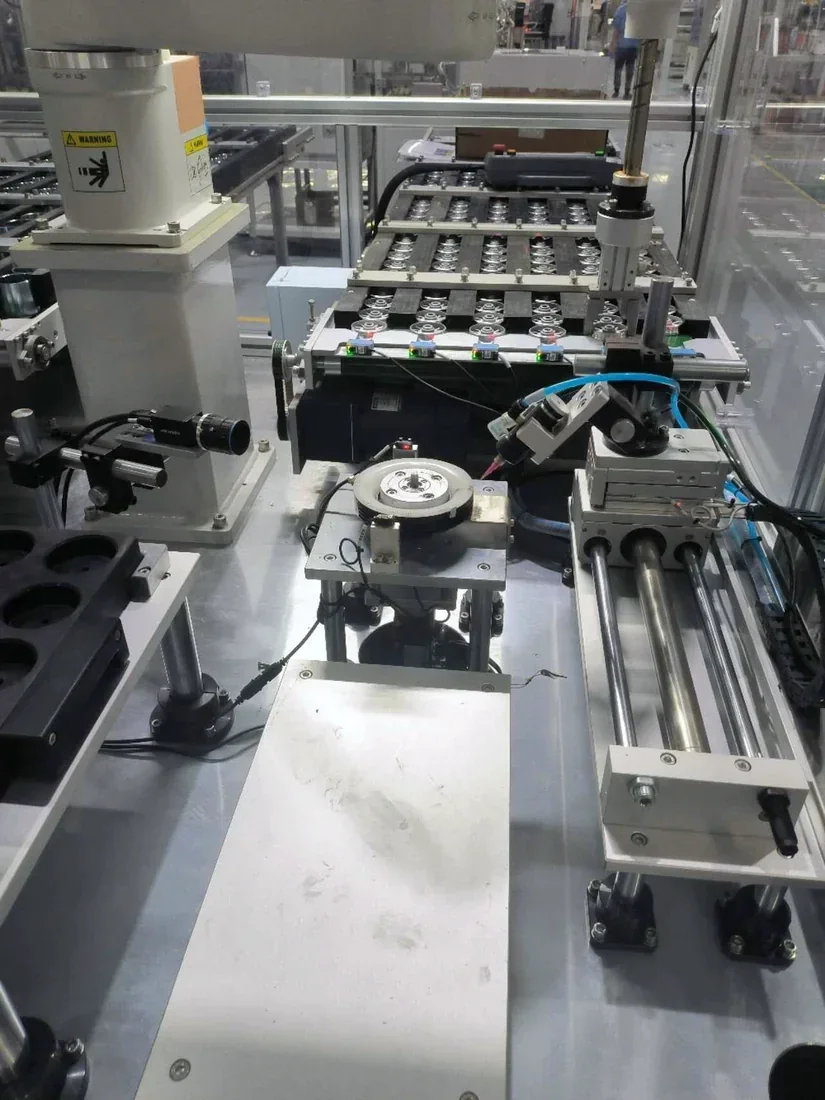

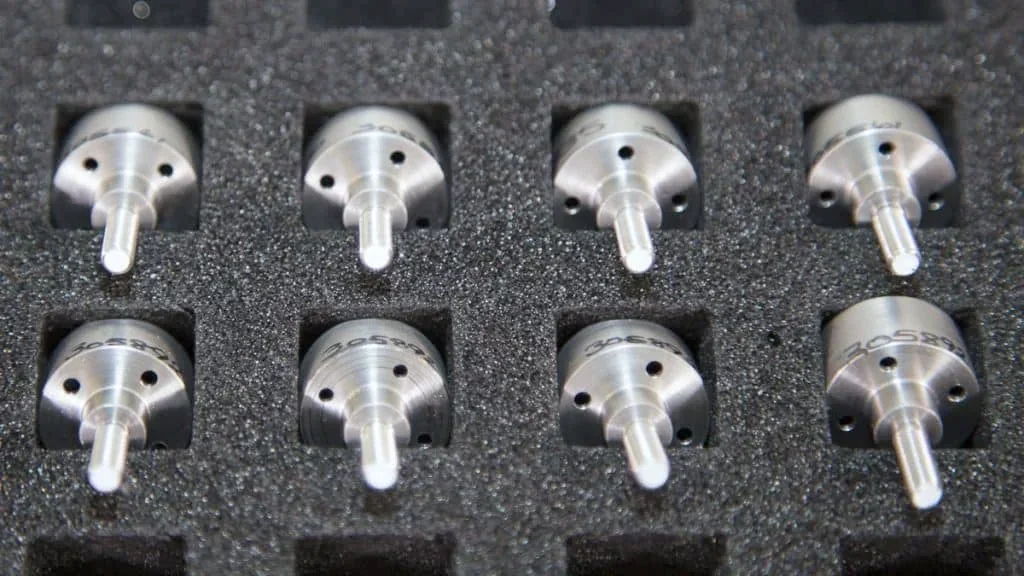

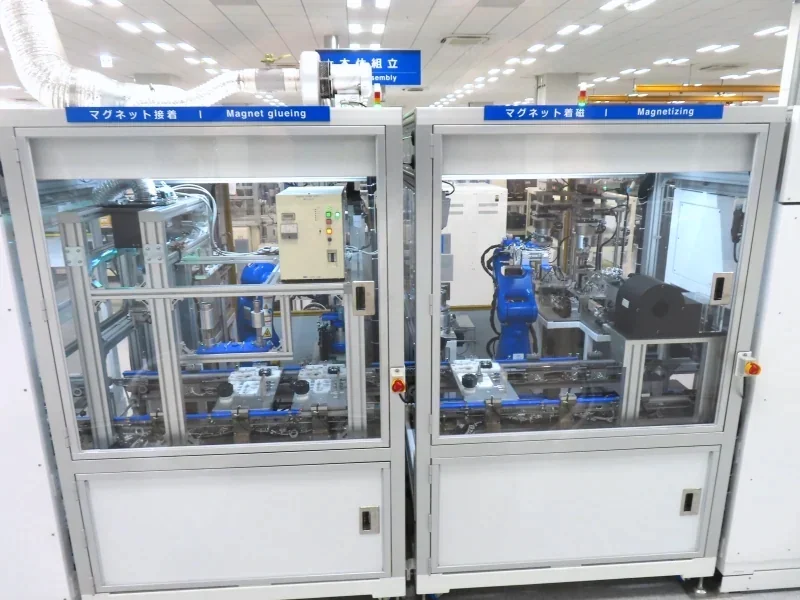

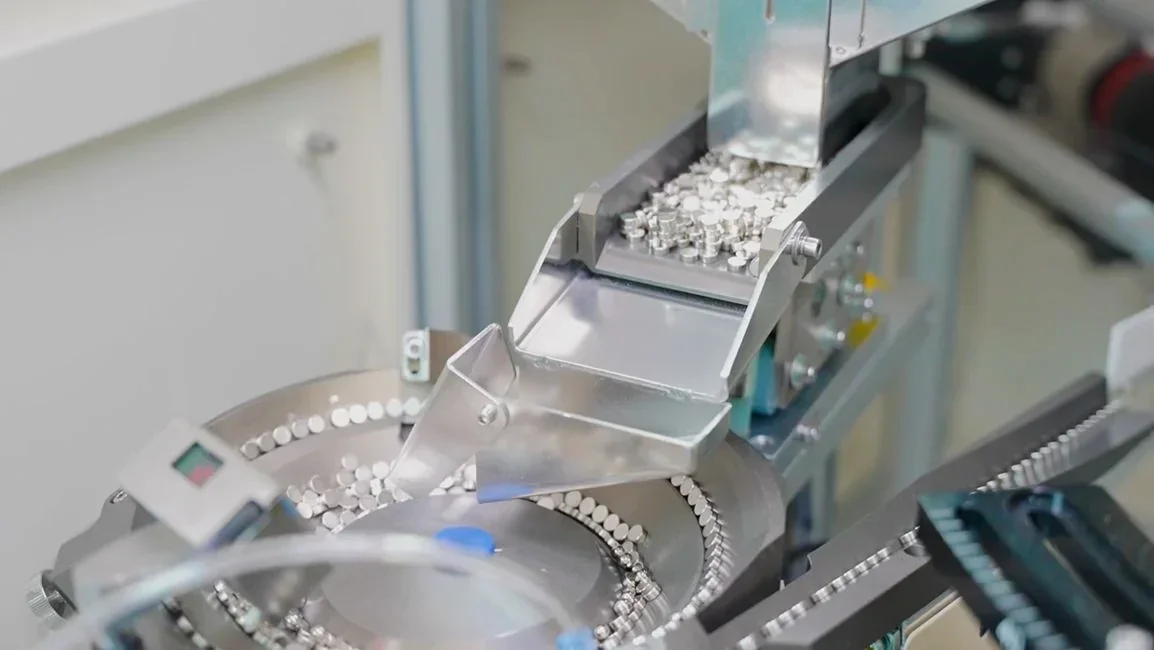

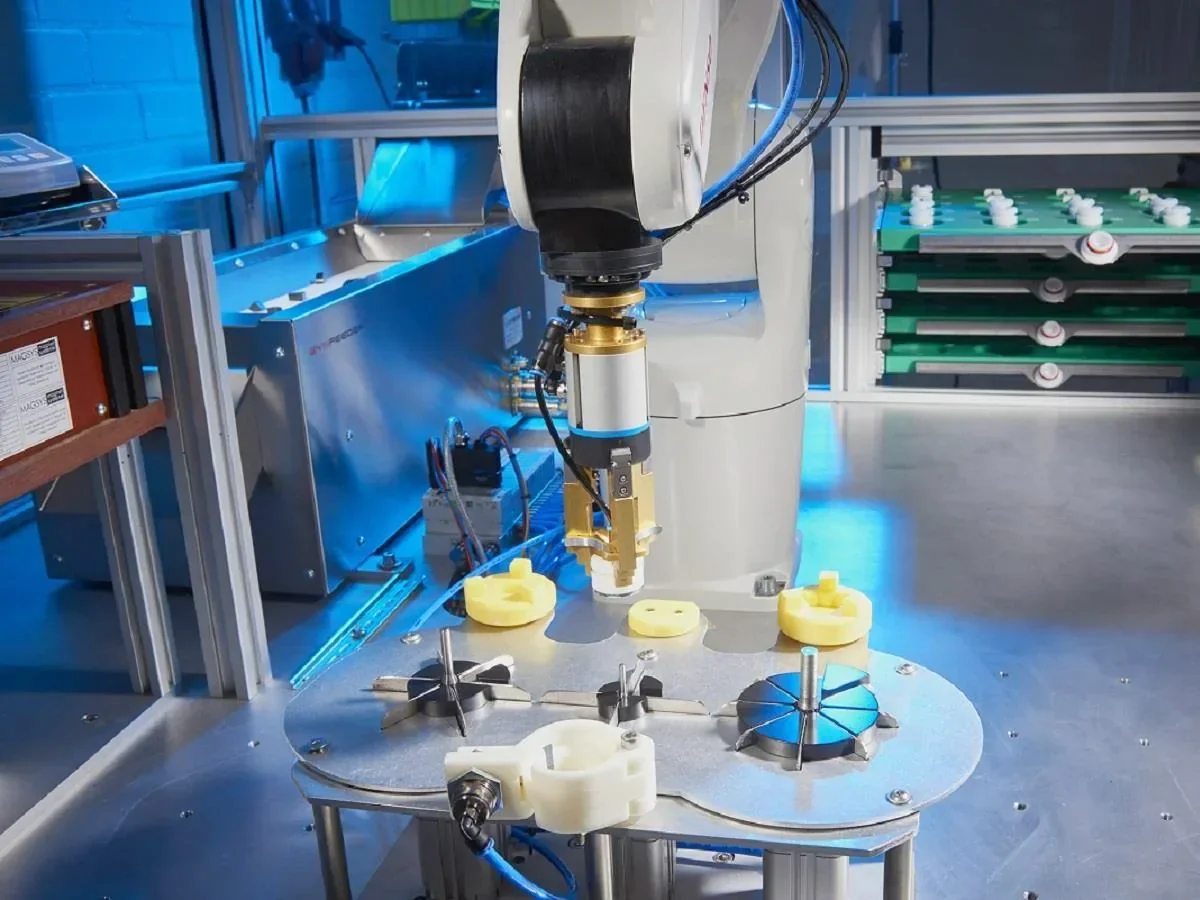

Custom Magnetic Assemblies: manufacturing route and checks

Custom assemblies coordinate magnetic components, machined interfaces, controlled integration, metrology and shielded export packing across specialist facilities.

Equipment route varies by material and geometryRemote video inspection available before shipment
Explore assembly processes in Factory Tour

Quotation & validation questions

Frequently Asked Questions
What's the minimum order for a custom assembly?

Prototypes start at 1 piece. Production assemblies vary: bonded assemblies from 100 pieces; insert-molded assemblies from 5,000 pieces (tooling amortized); machined assemblies from 10 pieces. Tell us your annual volume — we'll find the most cost-effective process.

Can you work from just a concept?

Yes. Describe the required holding force, torque, field strength and geometry constraints. We propose a design; initial design proposals carry no charge for projects with realistic production volume.

How do you handle intellectual property?

We sign NDAs before receiving confidential drawings, and all tooling we build for your parts is your property. We do not manufacture proprietary assemblies for your competitors — exclusivity agreements available on request.

Can you manage sub-suppliers for components you don't make?

Yes — we regularly integrate customer-specified components (bearings, sensors, fasteners) and manage qualified sub-suppliers for specialized processes (plating, heat treatment). You receive a single assembly with one warranty.

Supporting information

Specifications & project references

Published reference notes
Published custom-assembly capability references
500+
Active Custom Part Numbers
1–1000
Piece MOQ Range
DFM
Feedback with Every Quote
100%
Functional Test Coverage
Project inquiry

Custom Magnetic Assemblies — drawings & requirements

Provide the drawing revision, BOM, delivery boundary, functional output, critical interfaces and sample-validation requirements.

Confidential RFQ · NDA available upon request.
