Investment Casting

The lost-wax process produces near-net-shape castings with complex internal and external geometry — including parts that would require extensive machining from billet. Stainless, steel, brass, and bronze. Precision-metal production is coordinated through our long-term strategic manufacturing bases.

Elongated curved bracket form with forked ends
Engineering geometry

Cast geometry & machined interfaces

Impeller or flow-passage geometry
Impeller or flow-passage geometry

Cast vanes + machined bore

Curved vanes form the outer geometry while the central bore and hub provide mating interfaces. Identify the surfaces that remain cast and those requiring machining on the same drawing.

For an impeller or flow component, define passage geometry, accessible inspection areas and the finished connection. Agree material condition and any application-specific acceptance criteria separately.

Process selection

Geometry, material condition & inspection

Internal features

Identify passages, sections and tool access that influence the casting route.

Material and condition

Confirm the alloy specification, heat treatment and corrosion requirements.

Inspection scope

Agree dimensional, surface and internal-integrity acceptance before tooling.

Inputs for This Manufacturing Route
  • Alloy, geometry, wall sections and finished-part mass
  • Casting versus machined tolerance, datums and surface requirements
  • Heat treatment, NDT, first-article records and annual quantity
Component forms

Complex cast component forms

Valve and clevis forms combine near-net geometry with selected machined interfaces.
Valve and clevis forms combine near-net geometry with selected machined interfaces.
  1. Pattern and shell

    Review wax-pattern geometry, passages and shell requirements.

  2. Casting and finishing

    Confirm alloy, casting route and removal of gates and surface residues.

  3. Machined interfaces

    Finish functional faces and verify agreed dimensions and soundness.

Curved-vane impeller form. · Copper-colored valve, gear and housing forms. · Complex component forms with bores and flanges.

Capability references

Investment Casting capabilities

Request an alloy-specific datasheet with your drawing and material standard.

ParameterCapabilityNotes
Alloys304, 316, 17-4PH, 410, carbon steel, brass, bronze, moreAny castable alloy
Part weight0.03–40 kgSmall precision to large structural
ToleranceCT4–5 (±0.1mm per 25mm)Tighter on machined faces
Wall thickness1.5mm minimum typical2.0mm preferred for reliability
Surface finishRa 3.2–6.3µm as-castPolishable to mirror on stainless
MOQ100 piecesPrototypes from 10 pcs (3D-printed wax patterns)
Heat treatmentNormalizing, hardening, solution + ageIn-house per your spec
Verification & production

Assembly requirements & production route

Pattern geometry, ceramic shell and finished casting are reviewed as stages of the same part definition.
Pattern geometry, ceramic shell and finished casting are reviewed as stages of the same part definition.
  • Material grade and casting geometry
  • Machining datums and sealing faces
  • Surface and inspection requirements
Technical library

Design, production & acceptance references

Inspection & Quality Documentation

What ships with your parts — scoped per project during quotation.

Dimensional

First article and AQL sampling per your inspection plan; CMM reports on critical dimensions; casting datums agreed during DFM review.

Material & Surface

Chemical analysis per heat, tensile and hardness to ASTM / EN standards; radiographic and dye-penetrant inspection on request for critical castings.

Project Documentation

EN 10204 3.1 material certificates, FAI reports, and PPAP documentation per project requirements.

Inspection Plan Agreement

Casting geometry and selected machined faces establish the critical characteristics, sample plan and documented acceptance requirements.

Plan the quality review

Certificates & quality system

Published production reference values
100
pcs MOQ
CT4–5
Casting Tolerance Class
Ra 3.2
µm As-Cast Surface
0.03–40
kg Part Weight
Frequently Asked Questions
Why choose investment casting over machining?

Investment casting can reduce billet removal and machining time for complex parts. Existing planning references cite 30–60% savings and a 45-to-5-minute machining example; these are not validated project results. Simple parts may remain more economical to machine.

What tolerance can you hold as-cast?

CT4–5 class — approximately ±0.1mm per 25mm of dimension, with a minimum of ±0.15mm on small features. Critical features can be machined to ±0.005mm after casting. We mark machined vs. as-cast surfaces on the quote for clarity.

Can you do 3D-printed wax prototypes?

For 10–100-piece prototype runs, printed wax patterns can avoid dedicated pattern tooling. The existing 2–3-week lead-time reference requires project confirmation; dimensional acceptance follows sample inspection, not an assumption of identical results.

Do you provide material certifications?

Heat-level alloy analysis, certification to the specified ASTM, DIN or GB standard, and chemical/mechanical reports are reviewed against the order scope. Third-party verification is available for critical applications when agreed.

DFM for Investment Casting · Prototyping Path

Design decisions that improve castability and reduce cost:

  • Uniform wall thickness — avoid heavy sections — they shrink and create internal porosity; use ribs instead
  • Gentle transitions — fillet all corners (minimum 3mm radius) — sharp corners create stress and crack initiation
  • Parting considerations — investment casting has no parting line, but the wax pattern must eject from its mold — design for pattern release
  • Machining datum — specify which surfaces will be machined — casting datums and allowances define stock on critical faces

Prototyping Path

From 3D model to production parts:

  • 3D-printed wax patterns — no tooling for first articles — cast prototypes in 10–15 pieces in 2–3 weeks
  • Aluminum pattern tooling — for production volumes — $2,000–$8,000, lasts 50,000+ cycles
  • Bridge production — 3D-printed patterns scale to 100–500 pieces while tooling is built — delivery dates remain subject to pattern, casting and inspection planning
Why Investment Casting? · Applications

Internal channels, thin walls and sculpted surfaces can be cast near net shape; critical interfaces may still require machining.

  • Complex geometry — undercuts, internal cavities, and sculpted surfaces that machining can't produce economically
  • Near-net-shape — cast to ±0.1mm — machine only critical faces and leave the rest as-cast
  • Wide alloy selection — any castable alloy: stainless, carbon steel, tool steel, brass, bronze, cobalt, and nickel superalloys
  • Excellent surface finish — Ra 3.2–6.3µm as-cast — often suitable for visible surfaces without finishing

Applications

ApplicationTypical SpecWhy This Material
Marine Hardware316 stainlessCorrosion-resistant fittings and rigging
Valve Components17-4PH, CF8MComplex flow passages with pressure-tight walls
Food Equipment304 stainless, polishedSanitary fittings and pump impellers
Firearms & Defense4140, 17-4PHHigh-strength complex components
Architectural HardwareBronze, brassDecorative castings with sculpted detail
Inside Investment Casting Manufacturing

Investment casting moves from wax trees and ceramic shells through high-temperature pouring, finishing, dimensional inspection and protected crate packing.

Manufacturing

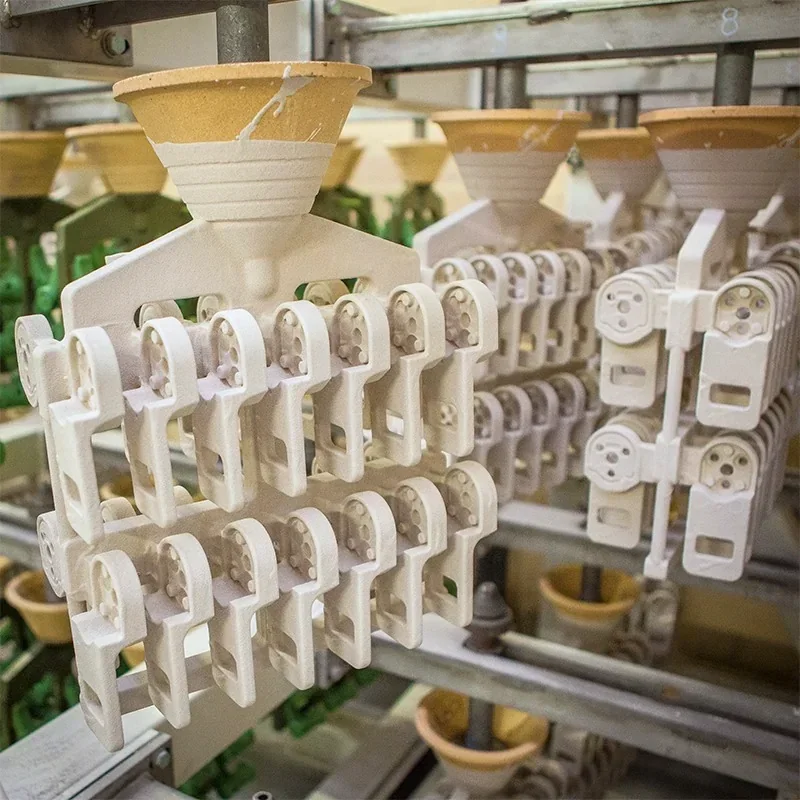

Wax Trees & Shell Building

Gated wax patterns receive repeated ceramic layers before dewaxing.

Manufacturing

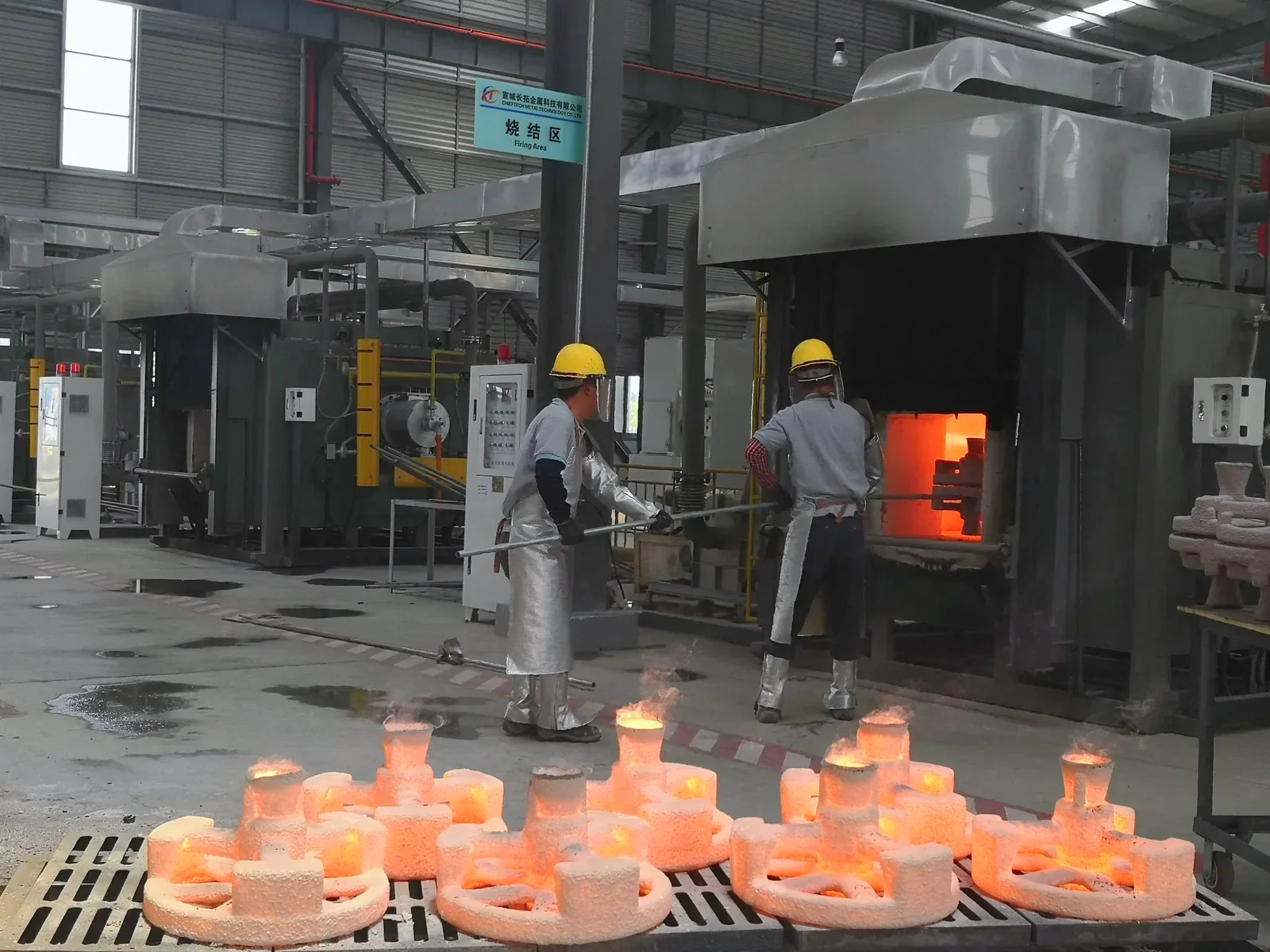

High-Temperature Pouring Area

Protected operators handle molten alloy and hot shells in a dedicated foundry zone.

Manufacturing

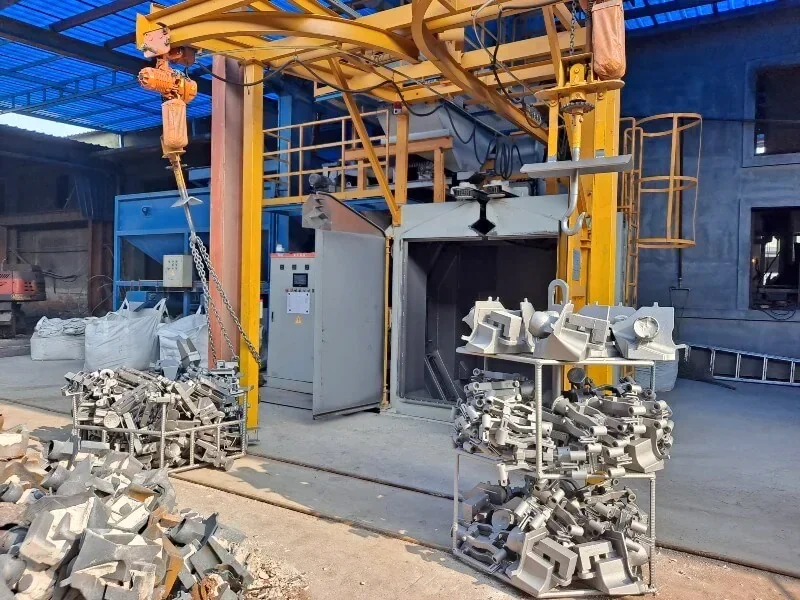

Casting & Finishing Workshop

Gates and shell residues are removed before specified surface finishing and machining.

Quality control

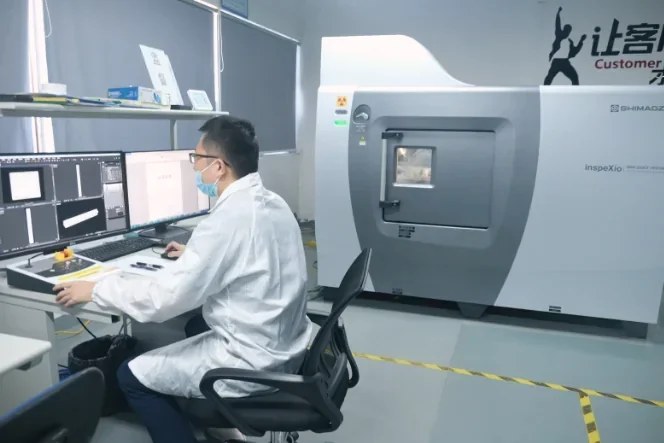

Casting inspection requirements

Where specified, high-resolution X-ray CT reviews internal porosity, inclusions and dimensional features without sectioning the casting. Inspection scope is agreed for the component.

Quality control

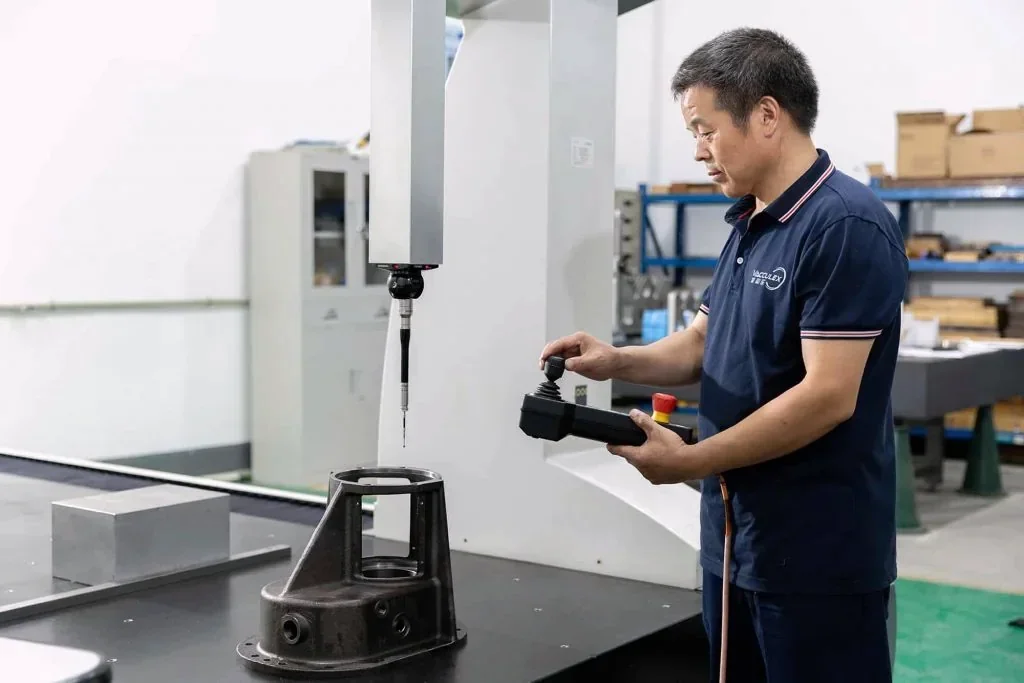

Machined Casting Metrology

CMM probing confirms the final datum structure and interface geometry.

Packing & dispatch

Heavy Casting Crate Packing

Finished cast components are separated and secured inside reinforced wooden cases.

Equipment route varies by material and geometryRemote video inspection available before shipment
Project review

Drawing, material & supply requirements

Send the casting and finished-part drawings, alloy condition, acceptance criteria and annual demand.
