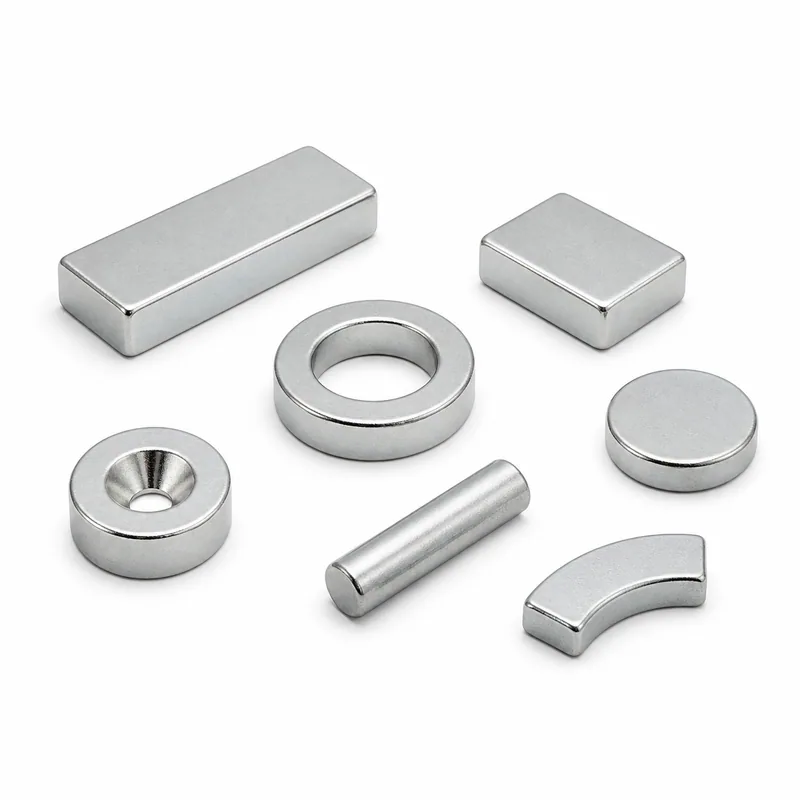

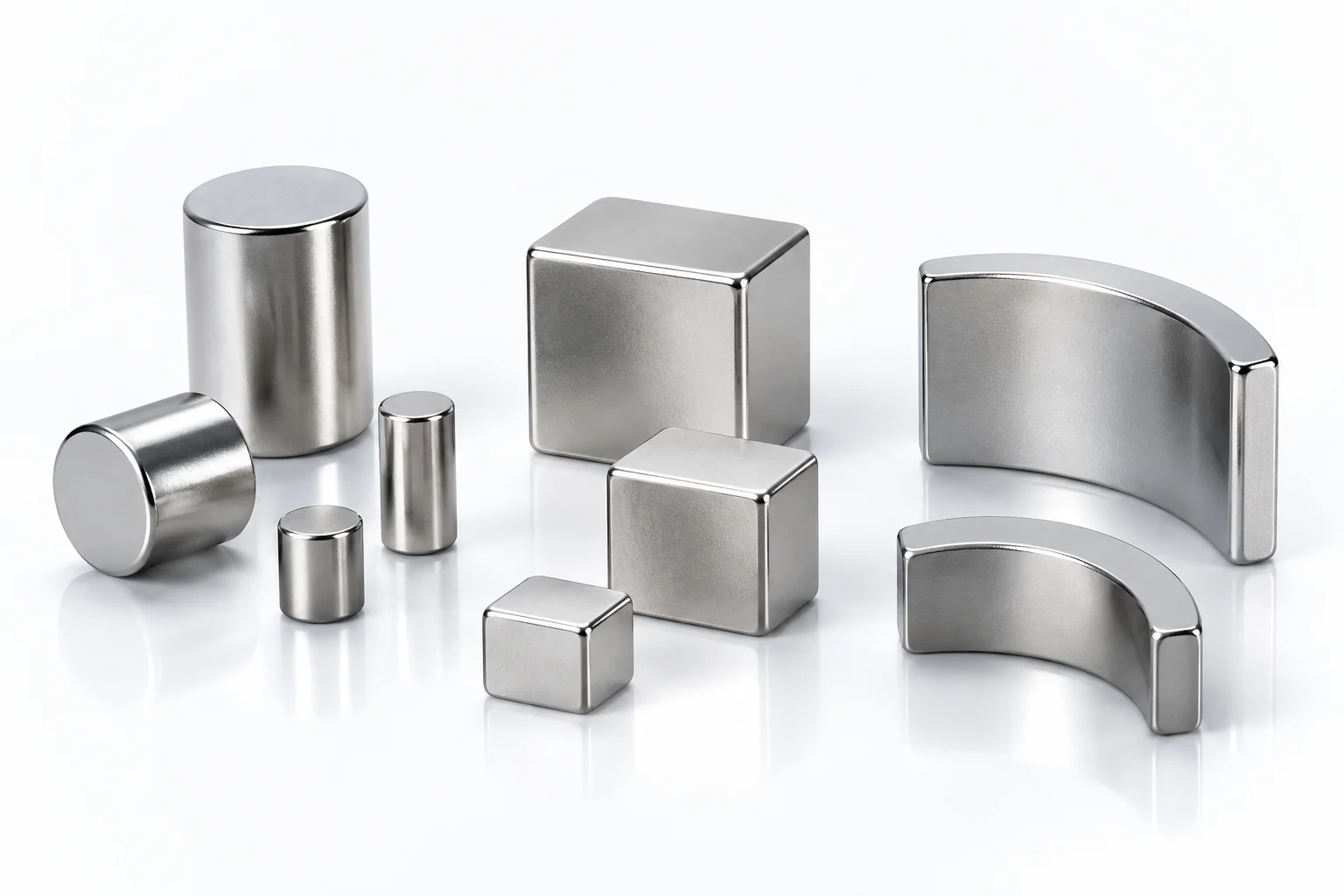

Block, ring, disc and arc segment magnets

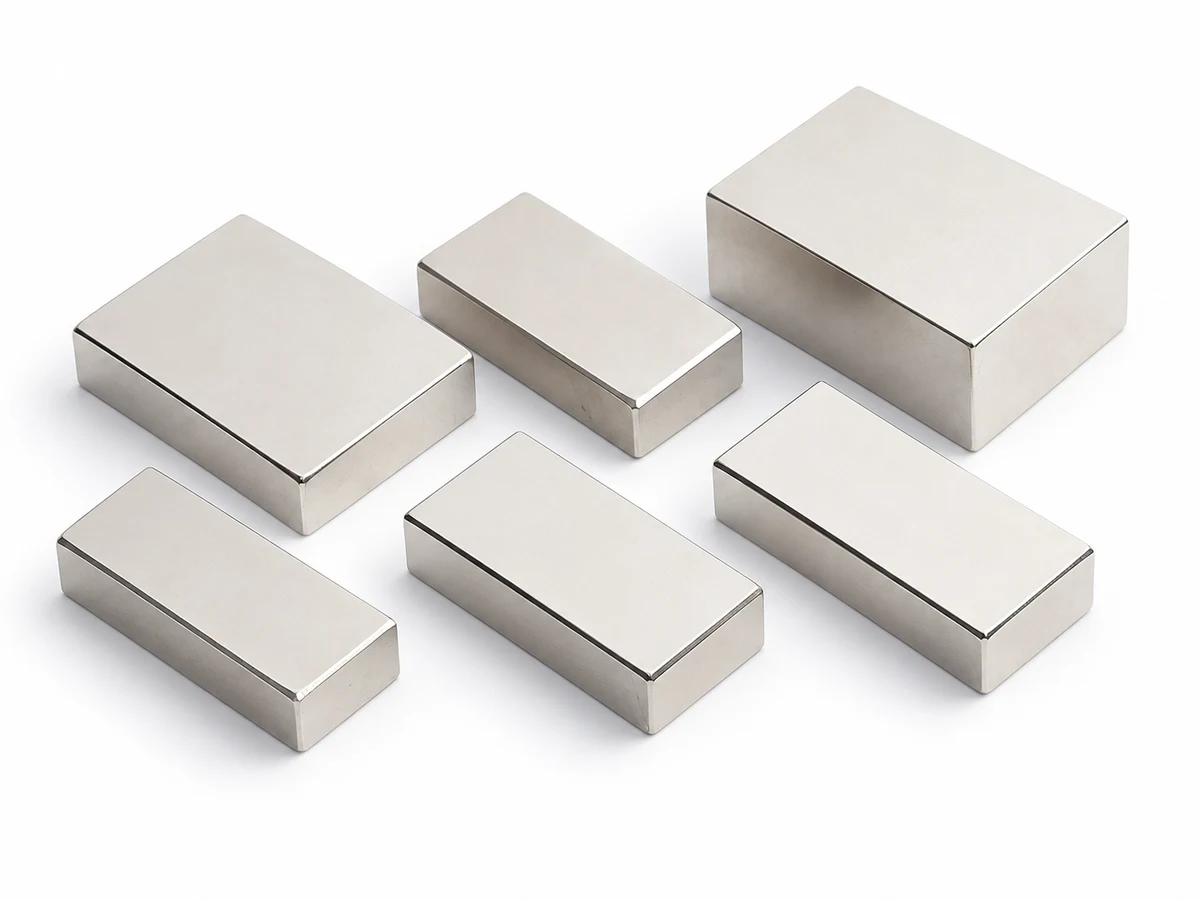

Block magnets

Rectangular formats for
the specified magnetic circuit.

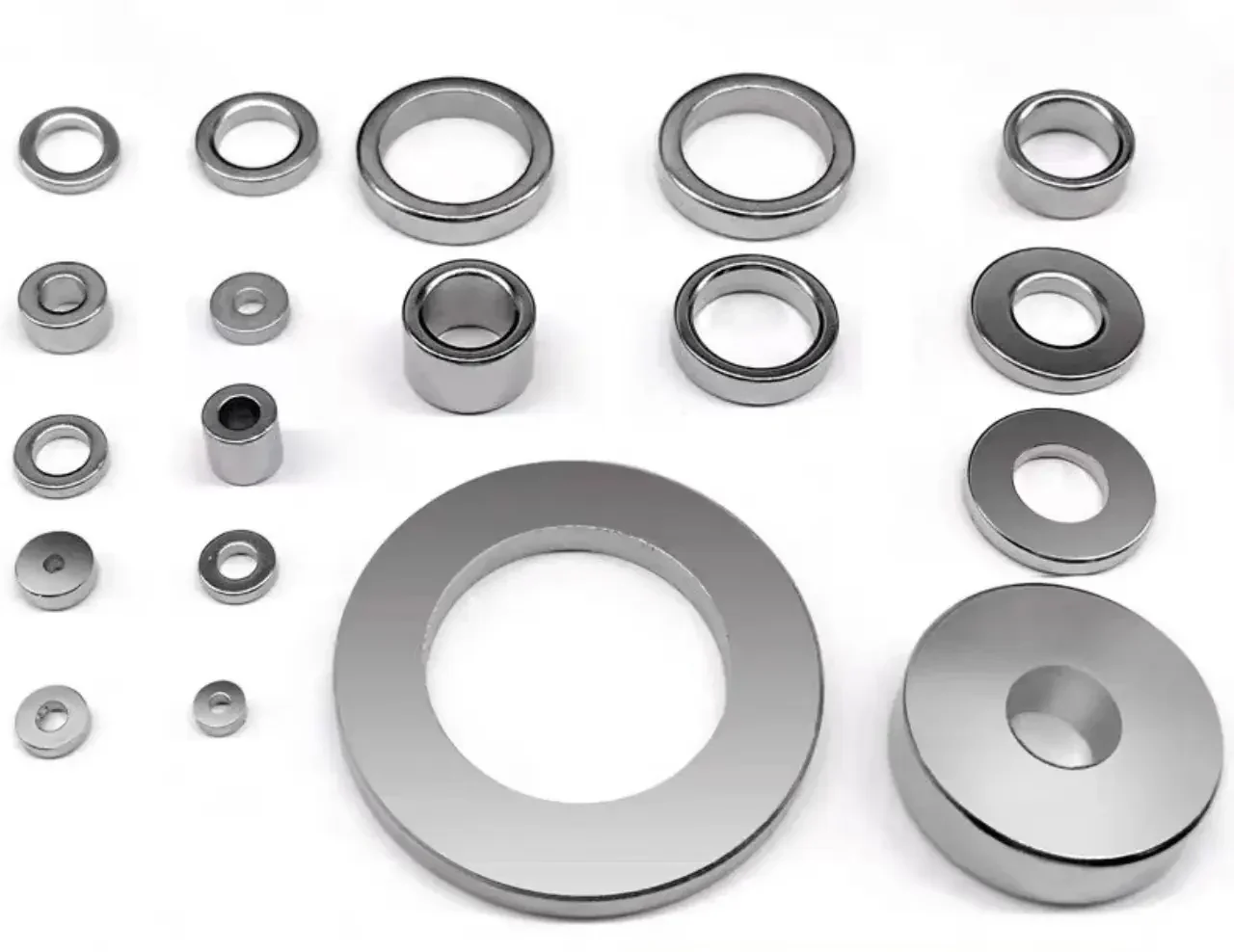

Ring magnets

Bore, diameter and magnetization
matched to the interface.

Disc magnets

Standard and custom discs
for a range of applications.

Arc segments

Matching arc segments
for the specified rotor.

Material selection

Grades &
technical data

Compare magnetic properties with the temperature and circuit your part will experience.

GradeBr · mTHcj · kA/m(BH)max · kJ/m³
N351180-1230≥955263-287
N381230-1260≥955287-310
N401260-1290≥955302-326
N421290-1330≥955318-342
Published reference values; review operating-temperature curves.Full grade library
Published grade library · 96 gradesView details

Filter by series or grade name. Final selection requires the complete operating conditions.

Scroll to view more columns.

NdFeB — complete published grade data
Name Download Grade Br
mT (kGs)
Hcb
kA/m (kOe)
Hcj
kA/m (kOe)
(BH)max
kJ/m³ (MGOe)
αBr
%/°C
βHcj
%/°C
S-NdFeB 280/96 PDF N35 1180-1230 (11.8-12.3) ≥876 (≥11) ≥955 (≥12) 263-287 (33-36) 0.10-0.124 0.65-0.80
S-NdFeB 300/96 N38 1230-1260 (12.3-12.6) ≥899 (≥11.3) ≥955 (≥12) 287-310 (36-39) 0.10-0.124 0.65-0.80
S-NdFeB 320/96 N40 1260-1290 (12.6-12.9) ≥912 (≥11.5) ≥955 (≥12) 302-326 (38-41) 0.10-0.124 0.65-0.80
S-NdFeB 335/96 N42 1290-1330 (12.9-13.3) ≥923 (≥11.6) ≥955 (≥12) 318-342 (40-43) 0.10-0.124 0.65-0.80
S-NdFeB 360/96 N45 1330-1370 (13.3-13.7) ≥931 (≥11.7) ≥955 (≥12) 342-366 (43-46) 0.10-0.124 0.65-0.80
S-NdFeB 380/96 N48 1370-1400 (13.7-14.0) ≥939 (≥11.8) ≥955 (≥12) 366-390 (46-49) 0.10-0.124 0.65-0.80
S-NdFeB 400/96 N50 1390-1430 (13.9-14.3) ≥947 (≥11.9) ≥955 (≥12) 374-406 (47-51) 0.10-0.124 0.65-0.80
S-NdFeB 415/96 N52 1420-1460 (14.2-14.6) ≥947 (≥11.9) ≥955 (≥12) 390-414(49-52) 0.10-0.124 0.65-0.80
S-NdFeB 430/96 N54 1450-1490 (14.5-14.9) ≥912 (≥11.5) ≥955 (≥12) 406-438 (51-55) 0.10-0.124 0.65-0.80
S-NdFeB 280/111 35M 1180-1230 (11.8-12.3) ≥899 (≥11.3) ≥1114 (≥14) 263-287 (33-36) 0.10-0.124 0.60-0.75
S-NdFeB 300/111 PDF 38M 1230-1260 (12.3-12.6) ≥923 (≥11.6) ≥1114 (≥14) 287-310 (36-39) 0.10-0.124 0.60-0.75
S-NdFeB 320/111 40M 1260-1290 (12.6-12.9) ≥947 (≥11.9) ≥1114 (≥14) 302-326 (38-41) 0.10-0.124 0.60-0.75
S-NdFeB 335/111 42M 1290-1330 (12.9-13.3) ≥971 (≥12.2) ≥1114 (≥14) 318-342 (40-43) 0.10-0.124 0.60-0.75
S-NdFeB 360/111 45M 1330-1370 (13.3-13.7) ≥1002 (≥12.6) ≥1114 (≥14) 342-366 (43-46) 0.10-0.124 0.60-0.75
S-NdFeB 380/111 48M 1370-1400 (13.7-14.0) ≥1027 (≥12.9) ≥1114 (≥14) 366-390 (46-49) 0.10-0.124 0.60-0.75
S-NdFeB 400/111 50M 1390-1430 (13.9-14.3) ≥1035 (≥13.0) ≥1114 (≥14) 374-406 (47-51) 0.10-0.124 0.60-0.75
S-NdFeB 415/111 52M 1420-1460 (14.2-14.6) ≥995 (≥12.5) ≥1114 (≥14) 390-414(49-52) 0.10-0.124 0.60-0.75
S-NdFeB 430/111 54M 1450-1490 (14.5-14.9) ≥995 (≥12.5) ≥1114 (≥14) 406-438 (51-55) 0.10-0.124 0.60-0.75
S-NdFeB 240/135 30H 1080-1140 (10.8-11.4) ≥827 (≥10.4) ≥1353 (≥17) 223-247 (28-31) 0.09-0.120 0.55-0.70
S-NdFeB 260/135 33H 1140-1180 (11.4-11.8) ≥860 (≥10.8) ≥1353 (≥17) 247-271 (31-34) 0.09-0.120 0.55-0.70
S-NdFeB 280/135 PDF 35H 1180-1230 (11.8-12.3) ≥899 (≥11.3) ≥1353 (≥17) 263-287 (33-36) 0.09-0.120 0.55-0.70
S-NdFeB 300/135 38H 1230-1260 (12.3-12.6) ≥923 (≥11.6) ≥1353 (≥17) 287-310 (36-39) 0.09-0.120 0.55-0.70
S-NdFeB 320/135 PDF 40H 1260-1290 (12.6-12.9) ≥947 (≥11.9) ≥1353 (≥17) 302-326 (38-41) 0.09-0.120 0.55-0.70
S-NdFeB 335/135 42H 1290-1330 (12.9-13.3) ≥971 (≥12.2) ≥1353 (≥17) 318-342 (40-43) 0.09-0.120 0.55-0.70
S-NdFeB 360/135 PDF 45H 1330-1370 (13.3-13.7) ≥1003 (≥12.6) ≥1353 (≥17) 342-366 (43-46) 0.09-0.120 0.55-0.70
S-NdFeB 380/135 PDF 48H 1370-1400 (13.7-14.0) ≥1035 (≥13.0) ≥1353 (≥17) 366-390 (46-49) 0.09-0.120 0.55-0.70
S-NdFeB 400/135 PDF 50H 1390-1430 (13.9-14.3) ≥1058 (≥13.3) ≥1353 (≥17) 374-406 (47-51) 0.09-0.120 0.55-0.70
S-NdFeB 415/127 PDF 52H 1420-1460 (14.2-14.6) ≥1074 (≥13.5) ≥1353 (≥17) 390-414(49-52) 0.09-0.120 0.55-0.70
S-NdFeB 430/127 54H 1450-1490 (14.5-14.9) ≥1074 (≥13.5) ≥1274 (≥16) 406-438 (51-55) 0.09-0.120 0.55-0.70
S-NdFeB 240/159 30SH 1080-1140 (10.8-11.4) ≥827 (≥10.4) ≥1592 (≥20) 223-247 (28-31) 0.09-0.120 0.50-0.65
S-NdFeB 260/159 33SH 1140-1180 (11.4-11.8) ≥860 (≥10.8) ≥1592 (≥20) 247-271 (31-34) 0.09-0.120 0.50-0.65
S-NdFeB 280/159 PDF 35SH 1180-1230 (11.8-12.3) ≥899 (≥11.3) ≥1592 (≥20) 263-287 (33-36) 0.09-0.120 0.50-0.65
S-NdFeB 300/159 PDF 38SH 1230-1260 (12.3-12.6) ≥923 (≥11.6) ≥1592 (≥20) 287-310 (36-39) 0.09-0.120 0.50-0.65
S-NdFeB 320/159 PDF 40SH 1260-1290 (12.6-12.9) ≥947 (≥11.9) ≥1592 (≥20) 302-326 (38-41) 0.09-0.120 0.50-0.65
S-NdFeB 335/159 PDF 42SH 1290-1330 (12.9-13.3) ≥971 (≥12.2) ≥1592 (≥20) 318-342 (40-43) 0.09-0.120 0.50-0.65
S-NdFeB 335/167 PDF N42SH-HRE 1310-1330 (13.1-13.3) ≥1020 (≥12.8) ≥1671 (≥21.0) 333-341 (42.0-43.0) -0.125 -0.600
S-NdFeB 360/159 PDF 45SH 1330-1370 (13.3-13.7) ≥1003 (≥12.6) ≥1592 (≥20) 342-366 (43-46) 0.09-0.120 0.50-0.65
S-NdFeB 380/159 PDF 48SH 1370-1400 (13.7-14.0) ≥1035 (≥13.0) ≥1592 (≥20) 366-390 (46-49) 0.09-0.120 0.50-0.65
S-NdFeB 400/159 PDF 50SH 1390-1430 (13.9-14.3) ≥1058 (≥13.3) ≥1592 (≥20) 374-406 (47-51) 0.09-0.120 0.50-0.65
S-NdFeB 430/175 PDF N54SH 1460-1480 (14.6-14.8) ≥1136 (≥14.3) ≥1751 (≥22.0) 413-421 (52.0-53.0) -0.120 -0.600
S-NdFeB 415/159 52SH 1420-1460 (14.2-14.6) ≥1074 (≥13.5) ≥1512 (≥19) 390-414(49-52) 0.09-0.120 0.50-0.65
S-NdFeB 220/199 PDF 28UH 1040-1090 (10.4-10.9) ≥780 (≥9.8) ≥1990 (≥25) 207-231 (26-29) 0.09-0.110 0.50-0.60
S-NdFeB 240/199 30UH 1080-1140 (10.8-11.4) ≥827 (≥10.4) ≥1990 (≥25) 223-247 (28-31) 0.09-0.110 0.50-0.60
S-NdFeB 260/199 PDF 33UH 1140-1180 (11.4-11.8) ≥860 (≥10.8) ≥1990 (≥25) 247-271 (31-34) 0.09-0.110 0.50-0.60
S-NdFeB 280/199 PDF 35UH 1180-1230 (11.8-12.3) ≥899 (≥11.3) ≥1990 (≥25) 263-287 (33-36) 0.09-0.110 0.50-0.60
S-NdFeB 300/199 PDF 38UH 1230-1260 (12.3-12.6) ≥923 (≥11.6) ≥1990 (≥25) 287-310 (36-39) 0.09-0.110 0.50-0.60
S-NdFeB 320/199 PDF 40UH 1260-1290 (12.6-12.9) ≥947 (≥11.9) ≥1990 (≥25) 302-326 (38-41) 0.09-0.110 0.50-0.60
S-NdFeB 335/199 PDF 42UH 1290-1330 (12.9-13.3) ≥971 (≥12.2) ≥1990 (≥25) 318-342 (40-43) 0.09-0.110 0.50-0.60
S-NdFeB 360/199 PDF 45UH 1330-1370 (13.3-13.7) ≥1003 (≥12.6) ≥1990 (≥25) 342-366 (43-46) 0.09-0.110 0.50-0.60
S-NdFeB 380/199 PDF 48UH 1360-1400 (13.6-14.0) ≥1035 (≥13.0) ≥1990 (≥25) 358-390 (45-49) 0.09-0.110 0.50-0.60
S-NdFeB 415/207 PDF N52UH 1440-1460 (14.4-14.6) ≥1120 (≥14.1) ≥2069 (≥26.0) 402-410 (50.5-51.5) -0.115 -0.500
S-NdFeB 220/239 28EH 1040-1090 (10.4-10.9) ≥780 (≥9.8) ≥2388 (≥30) 207-231 (26-29) 0.09-0.110 0.45-0.55
S-NdFeB 240/239 PDF 30EH 1080-1140 (10.8-11.4) ≥827 (≥10.4) ≥2388 (≥30) 223-247 (28-31) 0.09-0.110 0.45-0.55
S-NdFeB 260/239 33EH 1140-1180 (11.4-11.8) ≥860 (≥10.8) ≥2388 (≥30) 247-271 (31-34) 0.09-0.110 0.45-0.55
S-NdFeB 280/239 PDF 35EH 1180-1230 (11.8-12.3) ≥899 (≥11.3) ≥2388 (≥30) 263-287 (33-36) 0.09-0.110 0.45-0.55
S-NdFeB 300/239 PDF 38EH 1230-1260 (12.3-12.6) ≥923 (≥11.6) ≥2388 (≥30) 287-310 (36-39) 0.09-0.110 0.45-0.55
S-NdFeB 320/239 40EH 1260-1290 (12.6-12.9) ≥947 (≥11.9) ≥2388 (≥30) 302-326 (38-41) 0.09-0.110 0.45-0.55
S-NdFeB 335/239 42EH 1290-1330 (12.9-13.3) ≥971 (≥12.2) ≥2388 (≥30) 318-342 (40-43) 0.09-0.110 0.45-0.55
S-NdFeB 360/231 45EH 1330-1370 (13.3-13.7) ≥1003 (≥12.6) ≥2308 (≥29) 342-366 (43-46) 0.09-0.110 0.45-0.55
S-NdFeB 360/287 PDF N45AH 1340-1350 (13.4-13.5) ≥1039 (≥13.1) ≥2865 (≥36.0) 342-350 (43.0-44.0) -0.115 -0.400
S-NdFeB 400/247 PDF N50EH 1410-1430 (14.1-14.3) ≥1097 (≥13.8) ≥2467 (≥31.0) 385-392 (48.5-49.2) -0.115 -0.450
S-NdFeB 220/279 PDF 28TH 1040-1090 (10.4-10.9) ≥780 (≥9.8) ≥2786 (≥35) 207-231 (26-29) 0.09-0.110 0.40-0.50
S-NdFeB 240/279 30TH 1080-1140 (10.8-11.4) ≥827 (≥10.4) ≥2786 (≥35) 223-247 (28-31) 0.09-0.110 0.40-0.50
S-NdFeB 260/279 33TH 1140-1180 (11.4-11.8) ≥860 (≥10.8) ≥2786 (≥35) 247-271 (31-34) 0.09-0.110 0.40-0.50
S-NdFeB 280/279 PDF 35TH 1180-1230 (11.8-12.3) ≥899 (≥11.3) ≥2786 (≥35) 263-287 (33-36) 0.09-0.110 0.40-0.50
S-NdFeB 300/279 PDF 38TH 1230-1260 (12.3-12.6) ≥923 (≥11.6) ≥2786 (≥35) 287-310 (36-39) 0.09-0.110 0.40-0.50
S-NdFeB 320/279 40TH 1260-1290 (12.6-12.9) ≥947 (≥11.9) ≥2786 (≥35) 302-326 (38-41) 0.09-0.110 0.40-0.50
S-NdFeB 335/270 PDF 42TH 1290-1330 (12.9-13.3) ≥971 (≥12.2) ≥2706 (≥34) 318-342 (40-43) 0.09-0.110 0.40-0.50
S-NdFeB 415/135 G-52H 1430-1460 (14.3-14.6) ≥1074 (≥13.5) ≥1353 (≥17) 398-422(50-53) 0.11-0.13 0.60-0.70
S-NdFeB 437/135 G-55H 1460-1500 (14.6-15.0) ≥1098 (≥13.8) ≥1353 (≥17) 421-446 (53-56) 0.11-0.13 0.60-0.70
S-NdFeB 380/159 G-48SH 1370-1400(13.7-14.0) ≥1035 (≥13.0) ≥1600(≥20) 366-390(46-49) 0.11-0.13 0.60-0.65
S-NdFeB 400/159 PDF G-50SH 1400-1430 (14.0-14.3) ≥1058 (≥13.3) ≥1600(≥20) 374-406(47-51) 0.11-0.13 0.60-0.65
S-NdFeB 415/159 G-52SH 1430-1460 (14.3-14.6) ≥1074 (≥13.5) ≥1600(≥20) 398-422(50-53) 0.11-0.13 0.60-0.65
S-NdFeB 437/159 G-55SH 1460-1500 (14.6-15.0) ≥1098 (≥13.8) ≥1600(≥20) 421-446 (53-56) 0.11-0.13 0.60-0.65
S-NdFeB 335/199 G-42UH 1290-1330(12.9-13.3) ≥971 (≥12.2) ≥1990(≥25) 318-342(40-43) 0.11-0.12 0.50-0.60
S-NdFeB 360/199 PDF G-45UH 1330-1370(13.3-13.7) ≥1003(≥12.6) ≥1990(≥25) 342-366(43-46) 0.11-0.12 0.50-0.60
S-NdFeB 380/199 PDF G-48UH 1370-1400(13.7-14.0) ≥1035 (≥13.0) ≥1990(≥25) 366-390(46-49) 0.11-0.12 0.50-0.60
S-NdFeB 400/199 G-50UH 1400-1430 (14.0-14.3) ≥1058 (≥13.3) ≥1990(≥25) 374-406(47-51) 0.11-0.12 0.50-0.60
S-NdFeB 415/199 G-52UH 1430-1460 (14.3-14.6) ≥1074 (≥13.5) ≥1990(≥25) 398-422(50-53) 0.11-0.12 0.50-0.60
S-NdFeB 260/239 G-33EH 1140-1180(11.4-11.8) ≥860 (≥10.8) ≥2388(≥30) 247-271(31-34) 0.10-0.12 0.45-0.55
S-NdFeB 280/239 PDF G-35EH 1180-1230(11.8-12.3) ≥899 (≥11.3) ≥2388(≥30) 263-287(33-36) 0.10-0.12 0.45-0.55
S-NdFeB 300/239 PDF G-38EH 1230-1260(12.3-12.6) ≥923 (≥11.6) ≥2388(≥30) 287-310(36-39) 0.10-0.12 0.45-0.55
S-NdFeB 320/239 G-40EH 1260-1290(12.6-12.9) ≥947 (≥11.9) ≥2388(≥30) 302-326(38-41) 0.10-0.12 0.45-0.55
S-NdFeB 335/239 G-42EH 1290-1330(12.9-13.3) ≥971 (≥12.2) ≥2388(≥30) 318-342(40-43) 0.10-0.12 0.45-0.55
S-NdFeB 360/239 G-45EH 1330-1370(13.3-13.7) ≥1003 (≥12.6) ≥2388(≥30) 342-366(43-46) 0.10-0.12 0.45-0.55
S-NdFeB 380/239 G-48EH 1370-1400(13.7-14.0) ≥1035 (≥13.0) ≥2388(≥30) 366-390(46-49) 0.10-0.12 0.45-0.55
S-NdFeB 400/239 G-50EH 1400-1430 (14.0-14.3) ≥1035 (≥13.0) ≥2388(≥30) 374-406(47-51) 0.10-0.12 0.45-0.55
S-NdFeB 260/279 G-33TH 1140-1180(11.4-11.8) ≥860 (≥10.8) ≥2785(≥35) 247-271(31-34) 0.095-0.11 0.42-0.52
S-NdFeB 280/279 PDF G-35TH 1180-1230(11.8-12.3) ≥899 (≥11.3) ≥2785(≥35) 263-287(33-36) 0.095-0.11 0.42-0.52
S-NdFeB 300/279 PDF G-38TH 1230-1260(12.3-12.6) ≥923(≥11.6) ≥2785(≥35) 287-310(36-39) 0.095-0.11 0.42-0.52
S-NdFeB 320/279 G-40TH 1260-1290(12.6-12.9) ≥947 (≥11.9) ≥2785(≥35) 302-326(38-41) 0.095-0.11 0.42-0.52
S-NdFeB 335/279 PDF G-42TH 1290-1330(12.9-13.3) ≥971(≥12.2) ≥2785(≥35) 318-342(40-43) 0.095-0.11 0.42-0.52
S-NdFeB 360/279 G-45TH 1330-1370(13.3-13.7) ≥1003 (≥12.6) ≥2706(≥34) 342-366(43-46) 0.095-0.11 0.42-0.52
S-NdFeB 430/135 G-54H 1440-1470 (14.4-14.7) ≥1074 (≥13.5) ≥1353 (≥17) 398-422 (50-53) 0.09-0.12 0.55-0.70
S-NdFeB 430/159 G-54SH 1440-1470 (14.4-14.7) ≥1074 (≥13.5) ≥1592 (≥20) 398-422 (50-53) 0.09-0.12 0.50-0.65
S-NdFeB 430/191 G-54UH 1430-1470 (14.3-14.7) ≥1035 (≥13.0) ≥1910 (≥24) 390-422 (49-53) 0.09-0.11 0.50-0.60
Conventional & GBD librariesView details
70 conventional specifications

70 separately identified specifications. Values below follow the reference PDF captured 20 October 2026.

Typical maximum working temperature uses L/D = 0.7. It is not a limit inferred from the suffix or the planning matrix. Geometry, magnetic circuit, opposing field, exposure time and acceptable irreversible loss remain part of selection.

Scroll to view every property and the specification status. Select up to four grades from this specification series.

Conventional NdFeB Magnetic Properties — SI values with CGS references
GradeBr
T (kGs)
Hcb
kA/m (kOe)
Hcj
kA/m (kOe)
(BH)max
kJ/m³ (MGOe)
Typical Tmax
°C
Specification status
N351.18-1.23
11.8-12.3 kGs
≥876
≥11.0 kOe
≥955
≥12.0 kOe
263-287
33-36 MGOe
80Reference values
N381.23-1.26
12.3-12.6 kGs
≥876
≥11.0 kOe
≥955
≥12.0 kOe
287-310
36-39 MGOe
80Reference values
N401.26-1.29
12.6-12.9 kGs
≥876
≥11.0 kOe
≥955
≥12.0 kOe
302-326
38-41 MGOe
80Reference values
N421.29-1.33
12.9-13.3 kGs
≥876
≥11.0 kOe
≥955
≥12.0 kOe
318-342
40-43 MGOe
80Reference values
N451.33-1.37
13.3-13.7 kGs
≥876
≥11.0 kOe
≥955
≥12.0 kOe
342-366
43-46 MGOe
80Reference values
N481.37-1.41
13.7-14.1 kGs
≥876
≥11.0 kOe
≥955
≥12.0 kOe
358-390
45-49 MGOe
80Reference values
N501.40-1.44
14.0-14.4 kGs
≥876
≥11.0 kOe
≥955
≥12.0 kOe
374-406
47-51 MGOe
80Reference values
N521.42-1.46
14.2-14.6 kGs
≥876
≥11.0 kOe
≥955
≥12.0 kOe
390-422
49-53 MGOe
80Reference values
N541.45-1.50
14.5-15.0 kGs
≥876
≥11.0 kOe
≥955
≥12.0 kOe
406-438
51-55 MGOe
80Reference values
N561.47-1.52
14.7-15.2 kGs
≥876
≥11.0 kOe
≥955
≥12.0 kOe
414-446
52-56 MGOe
80Reference values
N581.51-1.56
15.1-15.6 kGs
≥836
≥10.5 kOe
≥876
≥11.0 kOe
422-462
53-58 MGOe
70Reference values
N601.53-1.58
15.3-15.8 kGs
≥836
≥10.5 kOe
≥876
≥11.0 kOe
438-478
55-60 MGOe
70Development reference
N35M1.18-1.23
11.8-12.3 kGs
≥892
≥11.2 kOe
≥1114
≥14.0 kOe
263-287
33-36 MGOe
100Reference values
N38M1.23-1.26
12.3-12.6 kGs
≥915
≥11.5 kOe
≥1114
≥14.0 kOe
287-310
36-39 MGOe
100Reference values
N40M1.26-1.29
12.6-12.9 kGs
≥939
≥11.8 kOe
≥1114
≥14.0 kOe
302-326
38-41 MGOe
100Reference values
N42M1.29-1.33
12.9-13.3 kGs
≥955
≥12.0 kOe
≥1114
≥14.0 kOe
318-342
40-43 MGOe
100Reference values
N45M1.33-1.37
13.3-13.7 kGs
≥971
≥12.2 kOe
≥1114
≥14.0 kOe
342-366
43-46 MGOe
100Reference values
N48M1.37-1.41
13.7-14.1 kGs
≥1011
≥12.7 kOe
≥1114
≥14.0 kOe
358-390
45-49 MGOe
100Reference values
N50M1.40-1.44
14.0-14.4 kGs
≥1035
≥13.0 kOe
≥1114
≥14.0 kOe
374-406
47-51 MGOe
100Reference values
N52M1.42-1.46
14.2-14.6 kGs
≥1051
≥13.2 kOe
≥1114
≥14.0 kOe
390-422
49-53 MGOe
100Reference values
N54M1.45-1.50
14.5-15.0 kGs
≥1075
≥13.5 kOe
≥1114
≥14.0 kOe
406-438
51-55 MGOe
100Reference values
N56M1.47-1.52
14.7-15.2 kGs
≥995
≥12.5 kOe
≥1035
≥13.0 kOe
414-446
52-56 MGOe
90Reference values
N58M1.50-1.55
15.0-15.5 kGs
≥995
≥12.5 kOe
≥1035
≥13.0 kOe
422-462
53-58 MGOe
90Reference values
N33H1.14-1.18
11.4-11.8 kGs
≥860
≥10.8 kOe
≥1353
≥17.0 kOe
247-271
31-34 MGOe
120Reference values
N35H1.18-1.23
11.8-12.3 kGs
≥876
≥11.0 kOe
≥1353
≥17.0 kOe
263-287
33-36 MGOe
120Reference values
N38H1.23-1.26
12.3-12.6 kGs
≥915
≥11.5 kOe
≥1353
≥17.0 kOe
287-310
36-39 MGOe
120Reference values
N40H1.26-1.29
12.6-12.9 kGs
≥939
≥11.8 kOe
≥1353
≥17.0 kOe
302-326
38-41 MGOe
120Reference values
N42H1.29-1.33
12.9-13.3 kGs
≥971
≥12.2 kOe
≥1353
≥17.0 kOe
318-342
40-43 MGOe
120Reference values
N45H1.33-1.37
13.3-13.7 kGs
≥1003
≥12.6 kOe
≥1353
≥17.0 kOe
342-366
43-46 MGOe
120Reference values
N48H1.37-1.41
13.7-14.1 kGs
≥1019
≥12.8 kOe
≥1353
≥17.0 kOe
358-390
45-49 MGOe
120Reference values
N50H1.40-1.44
14.0-14.4 kGs
≥1035
≥13.0 kOe
≥1353
≥17.0 kOe
374-406
47-51 MGOe
120Reference values
N52H1.42-1.46
14.2-14.6 kGs
≥1051
≥13.2 kOe
≥1353
≥17.0 kOe
390-422
49-53 MGOe
120Reference values
N54H1.44-1.50
14.4-15.0 kGs
≥1067
≥13.4 kOe
≥1353
≥17.0 kOe
406-438
51-55 MGOe
120Document values; see version notes
N56H1.46-1.51
14.6-15.1 kGs
≥1098
≥13.6 kOe
≥1274
≥16.0 kOe
414-446
52-56 MGOe
110Engineering confirmation required
N30SH1.09-1.15
10.9-11.5 kGs
≥820
≥10.3 kOe
≥1592
≥20.0 kOe
223-247
28-31 MGOe
150Reference values
N33SH1.14-1.18
11.4-11.8 kGs
≥852
≥10.7 kOe
≥1592
≥20.0 kOe
247-271
31-34 MGOe
150Reference values
N35SH1.18-1.23
11.8-12.3 kGs
≥884
≥11.1 kOe
≥1592
≥20.0 kOe
263-287
33-36 MGOe
150Reference values
N38SH1.23-1.26
12.3-12.6 kGs
≥923
≥11.6 kOe
≥1592
≥20.0 kOe
287-310
36-39 MGOe
150Reference values
N40SH1.26-1.29
12.6-12.9 kGs
≥939
≥11.8 kOe
≥1592
≥20.0 kOe
302-326
38-41 MGOe
150Reference values
N42SH1.29-1.33
12.9-13.3 kGs
≥971
≥12.2 kOe
≥1592
≥20.0 kOe
318-342
40-43 MGOe
150Reference values
N45SH1.33-1.37
13.3-13.7 kGs
≥1003
≥12.6 kOe
≥1592
≥20.0 kOe
342-366
43-46 MGOe
150Reference values
N48SH1.37-1.41
13.7-14.1 kGs
≥1019
≥12.8 kOe
≥1592
≥20.0 kOe
358-390
45-49 MGOe
150Reference values
N50SH1.39-1.43
13.9-14.3 kGs
≥1035
≥13.0 kOe
≥1592
≥20.0 kOe
374-406
47-51 MGOe
150Reference values
N52SH1.42-1.46
14.2-14.6 kGs
≥1051
≥13.2 kOe
≥1512
≥19.0 kOe
390-422
49-53 MGOe
140Reference values
N35SHT1.18-1.23
11.8-12.3 kGs
≥884
≥11.1 kOe
≥1831
≥23.0 kOe
263-287
33-36 MGOe
165Reference values
N38SHT1.23-1.26
12.3-12.6 kGs
≥923
≥11.6 kOe
≥1831
≥23.0 kOe
287-310
36-39 MGOe
165Reference values
N40SHT1.26-1.29
12.6-12.9 kGs
≥955
≥12.0 kOe
≥1831
≥23.0 kOe
302-326
38-41 MGOe
165Reference values
N42SHT1.29-1.33
12.9-13.3 kGs
≥955
≥12.0 kOe
≥1831
≥23.0 kOe
318-342
40-43 MGOe
165Reference values
N45SHT1.33-1.37
13.3-13.7 kGs
≥987
≥12.4 kOe
≥1831
≥23.0 kOe
334-366
42-46 MGOe
165Reference values
N48SHT1.37-1.41
13.7-14.1 kGs
≥1019
≥12.8 kOe
≥1831
≥23.0 kOe
358-390
45-49 MGOe
165Reference values
N30UH1.09-1.15
10.9-11.5 kGs
≥812
≥10.2 kOe
≥1990
≥25.0 kOe
223-247
28-31 MGOe
180Reference values
N33UH1.14-1.18
11.4-11.8 kGs
≥860
≥10.8 kOe
≥1990
≥25.0 kOe
247-271
31-34 MGOe
180Reference values
N35UH1.18-1.23
11.8-12.3 kGs
≥892
≥11.2 kOe
≥1990
≥25.0 kOe
263-287
33-36 MGOe
180Reference values
N38UH1.23-1.26
12.3-12.6 kGs
≥923
≥11.6 kOe
≥1990
≥25.0 kOe
287-310
36-39 MGOe
180Reference values
N40UH1.26-1.29
12.6-12.9 kGs
≥955
≥12.0 kOe
≥1990
≥25.0 kOe
302-326
38-41 MGOe
180Reference values
N42UH1.29-1.33
12.9-13.3 kGs
≥971
≥12.2 kOe
≥1990
≥25.0 kOe
318-342
40-43 MGOe
180Reference values
N45UH1.33-1.36
13.3-13.6 kGs
≥987
≥12.4 kOe
≥1990
≥25.0 kOe
342-366
43-46 MGOe
180Reference values
N48UH1.36-1.41
13.6-14.1 kGs
≥1019
≥12.8 kOe
≥1990
≥25.0 kOe
358-390
45-49 MGOe
180Document values; see version notes
N30UHT1.09-1.14
10.9-11.4 kGs
≥812
≥10.2 kOe
≥2149
≥27.0 kOe
223-247
28-31 MGOe
190Reference values
N33UHT1.14-1.18
11.4-11.8 kGs
≥860
≥10.8 kOe
≥2149
≥27.0 kOe
247-271
31-34 MGOe
190Reference values
N35UHT1.18-1.23
11.8-12.3 kGs
≥892
≥11.2 kOe
≥2149
≥27.0 kOe
263-287
33-36 MGOe
190Reference values
N38UHT1.23-1.26
12.3-12.6 kGs
≥923
≥11.6 kOe
≥2149
≥27.0 kOe
287-310
36-39 MGOe
190Reference values
N40UHT1.26-1.29
12.6-12.9 kGs
≥955
≥12.0 kOe
≥2149
≥27.0 kOe
302-326
38-41 MGOe
190Reference values
N42UHT1.29-1.33
12.9-13.3 kGs
≥971
≥12.2 kOe
≥2149
≥27.0 kOe
318-342
40-43 MGOe
190Reference values
N30EH1.09-1.15
10.9-11.5 kGs
≥820
≥10.3 kOe
≥2388
≥30.0 kOe
223-247
28-31 MGOe
200Reference values
N33EH1.14-1.18
11.4-11.8 kGs
≥860
≥10.8 kOe
≥2388
≥30.0 kOe
247-271
31-34 MGOe
200Reference values
N35EH1.18-1.22
11.8-12.2 kGs
≥892
≥11.2 kOe
≥2388
≥30.0 kOe
263-287
33-36 MGOe
200Reference values
N38EH1.22-1.26
12.2-12.6 kGs
≥923
≥11.6 kOe
≥2388
≥30.0 kOe
287-310
36-39 MGOe
200Reference values
N40EH1.25-1.29
12.5-12.9 kGs
≥955
≥12.0 kOe
≥2388
≥30.0 kOe
302-326
38-41 MGOe
200Reference values
N42EH1.28-1.33
12.8-13.3 kGs
≥971
≥12.2 kOe
≥2388
≥30.0 kOe
310-342
39-43 MGOe
200Reference values
78 GBD specifications

78 separately identified specifications. Values below follow the reference PDF captured 20 October 2026.

GBD temperature references also use L/D = 0.7 and require the same geometry, magnetic-circuit, opposing-field, exposure and irreversible-loss review stated for the conventional series—not a limit inferred from the grade suffix or planning matrix.

Scroll to view every property and the specification status. Select up to four grades from this specification series.

Grain-Boundary-Diffused NdFeB Magnetic Properties — SI values with CGS references
GradeBr
T (kGs)
Hcb
kA/m (kOe)
Hcj
kA/m (kOe)
(BH)max
kJ/m³ (MGOe)
Typical Tmax
°C
Specification status
G60M1.520-1.560
15.20-15.60 kGs
≥1146
≥14.4 kOe
≥1114
≥14.0 kOe
438-478
55-60 MGOe
100Engineering confirmation required
G54H1.450-1.510
14.50-15.10 kGs
≥1091
≥13.7 kOe
≥1353
≥17.0 kOe
406-438
51-55 MGOe
120Reference values
G56H1.470-1.530
14.70-15.30 kGs
≥1106
≥13.9 kOe
≥1353
≥17.0 kOe
414-446
52-56 MGOe
120Reference values
G58H1.500-1.550
15.00-15.50 kGs
≥1130
≥14.2 kOe
≥1353
≥17.0 kOe
422-462
53-58 MGOe
120Reference values
G60H1.520-1.560
15.20-15.60 kGs
≥1146
≥14.4 kOe
≥1353
≥17.0 kOe
438-478
55-60 MGOe
120Development reference
G40SH1.260-1.290
12.60-12.90 kGs
≥939
≥11.8 kOe
≥1592
≥20.0 kOe
302-326
38-41 MGOe
150Reference values
G42SH1.290-1.330
12.90-13.30 kGs
≥971
≥12.2 kOe
≥1592
≥20.0 kOe
318-342
40-43 MGOe
150Reference values
G45SH1.330-1.380
13.30-13.80 kGs
≥1003
≥12.6 kOe
≥1592
≥20.0 kOe
342-366
43-46 MGOe
150Reference values
G48SH1.370-1.410
13.70-14.10 kGs
≥1027
≥12.9 kOe
≥1592
≥20.0 kOe
358-390
45-49 MGOe
150Reference values
G50SH1.390-1.450
13.90-14.50 kGs
≥1051
≥13.2 kOe
≥1592
≥20.0 kOe
374-406
47-51 MGOe
150Reference values
G52SH1.420-1.480
14.20-14.80 kGs
≥1067
≥13.4 kOe
≥1592
≥20.0 kOe
390-422
49-53 MGOe
150Reference values
G54SH1.450-1.510
14.50-15.10 kGs
≥1091
≥13.7 kOe
≥1592
≥20.0 kOe
406-438
51-55 MGOe
150Reference values
G56SH1.470-1.530
14.70-15.30 kGs
≥1106
≥13.9 kOe
≥1592
≥20.0 kOe
414-446
52-56 MGOe
150Reference values
G58SH1.500-1.550
15.00-15.50 kGs
≥1130
≥14.2 kOe
≥1592
≥20.0 kOe
422-462
53-58 MGOe
150Development reference
G60SH1.520-1.560
15.20-15.60 kGs
≥1146
≥14.4 kOe
≥1592
≥20.0 kOe
438-478
55-60 MGOe
150Development reference
G35SHT1.180-1.230
11.80-12.30 kGs
≥884
≥11.1 kOe
≥1831
≥23.0 kOe
263-287
33-36 MGOe
165Reference values
G38SHT1.230-1.260
12.30-12.60 kGs
≥923
≥11.6 kOe
≥1831
≥23.0 kOe
287-310
36-39 MGOe
165Reference values
G40SHT1.260-1.290
12.60-12.90 kGs
≥955
≥12.0 kOe
≥1831
≥23.0 kOe
302-326
38-41 MGOe
165Reference values
G42SHT1.290-1.330
12.90-13.30 kGs
≥963
≥12.1 kOe
≥1831
≥23.0 kOe
318-342
40-43 MGOe
165Reference values
G45SHT1.330-1.370
13.30-13.70 kGs
≥995
≥12.5 kOe
≥1831
≥23.0 kOe
334-366
42-46 MGOe
165Reference values
G48SHT1.370-1.410
13.70-14.10 kGs
≥1027
≥12.9 kOe
≥1831
≥23.0 kOe
358-390
45-49 MGOe
165Reference values
G50SHT1.390-1.450
13.90-14.50 kGs
≥1051
≥13.2 kOe
≥1831
≥23.0 kOe
374-406
47-51 MGOe
165Reference values
G52SHT1.420-1.480
14.20-14.80 kGs
≥1067
≥13.4 kOe
≥1831
≥23.0 kOe
390-422
49-53 MGOe
165Reference values
G54SHT1.450-1.510
14.50-15.10 kGs
≥1091
≥13.7 kOe
≥1831
≥23.0 kOe
406-438
51-55 MGOe
165Reference values
G56SHT1.470-1.530
14.70-15.30 kGs
≥1106
≥13.9 kOe
≥1831
≥23.0 kOe
414-446
52-56 MGOe
165Reference values
G30UH1.090-1.150
10.90-11.50 kGs
≥812
≥10.2 kOe
≥1990
≥25.0 kOe
223-247
28-31 MGOe
180Reference values
G33UH1.140-1.180
11.40-11.80 kGs
≥860
≥10.8 kOe
≥1990
≥25.0 kOe
247-271
31-34 MGOe
180Reference values
G35UH1.180-1.230
11.80-12.30 kGs
≥892
≥11.2 kOe
≥1990
≥25.0 kOe
263-287
33-36 MGOe
180Reference values
G38UH1.230-1.260
12.30-12.60 kGs
≥923
≥11.6 kOe
≥1990
≥25.0 kOe
287-310
36-39 MGOe
180Reference values
G40UH1.260-1.290
12.60-12.90 kGs
≥955
≥12.0 kOe
≥1990
≥25.0 kOe
302-326
38-41 MGOe
180Reference values
G42UH1.290-1.330
12.90-13.30 kGs
≥971
≥12.2 kOe
≥1990
≥25.0 kOe
318-342
40-43 MGOe
180Reference values
G45UH1.330-1.380
13.30-13.80 kGs
≥1003
≥12.6 kOe
≥1990
≥25.0 kOe
342-366
43-46 MGOe
180Reference values
G48UH1.360-1.420
13.60-14.20 kGs
≥1027
≥12.9 kOe
≥1990
≥25.0 kOe
358-390
45-49 MGOe
180Reference values
G50UH1.390-1.450
13.90-14.50 kGs
≥1051
≥13.2 kOe
≥1990
≥25.0 kOe
374-406
47-51 MGOe
180Reference values
G52UH1.420-1.480
14.20-14.80 kGs
≥1067
≥13.4 kOe
≥1990
≥25.0 kOe
390-422
49-53 MGOe
180Reference values
G54UH1.450-1.510
14.50-15.10 kGs
≥1091
≥13.7 kOe
≥1990
≥25.0 kOe
406-438
51-55 MGOe
180Reference values
G56UH1.470-1.530
14.70-15.30 kGs
≥1106
≥13.9 kOe
≥1990
≥25.0 kOe
414-446
52-56 MGOe
180Development reference
G58UH1.490-1.540
14.90-15.40 kGs
≥1122
≥14.1 kOe
≥1990
≥25.0 kOe
414-446
53-57 MGOe
180Engineering confirmation required
G30UHT1.090-1.140
10.90-11.40 kGs
≥812
≥10.2 kOe
≥2149
≥27.0 kOe
223-247
28-31 MGOe
190Reference values
G33UHT1.140-1.180
11.40-11.80 kGs
≥860
≥10.8 kOe
≥2149
≥27.0 kOe
247-271
31-34 MGOe
190Reference values
G35UHT1.180-1.230
11.80-12.30 kGs
≥892
≥11.2 kOe
≥2149
≥27.0 kOe
263-287
33-36 MGOe
190Reference values
G38UHT1.230-1.260
12.30-12.60 kGs
≥923
≥11.6 kOe
≥2149
≥27.0 kOe
287-310
36-39 MGOe
190Reference values
G40UHT1.260-1.290
12.60-12.90 kGs
≥955
≥12.0 kOe
≥2149
≥27.0 kOe
302-326
38-41 MGOe
190Reference values
G42UHT1.290-1.330
12.90-13.30 kGs
≥971
≥12.2 kOe
≥2149
≥27.0 kOe
318-342
40-43 MGOe
190Reference values
G45UHT1.330-1.380
13.30-13.80 kGs
≥1003
≥12.6 kOe
≥2149
≥27.0 kOe
342-366
43-46 MGOe
190Reference values
G48UHT1.360-1.420
13.60-14.20 kGs
≥1027
≥12.9 kOe
≥2149
≥27.0 kOe
358-390
45-49 MGOe
190Reference values
G50UHT1.390-1.450
13.90-14.50 kGs
≥1051
≥13.2 kOe
≥2149
≥27.0 kOe
374-406
47-51 MGOe
190Reference values
G52UHT1.420-1.480
14.20-14.80 kGs
≥1067
≥13.4 kOe
≥2149
≥27.0 kOe
390-422
49-53 MGOe
190Reference values
G54UHT1.450-1.510
14.50-15.10 kGs
≥1091
≥13.7 kOe
≥2149
≥27.0 kOe
406-438
51-55 MGOe
190Reference values
G30EH1.090-1.150
10.90-11.50 kGs
≥820
≥10.3 kOe
≥2388
≥30.0 kOe
223-247
28-31 MGOe
200Reference values
G33EH1.140-1.180
11.40-11.80 kGs
≥860
≥10.8 kOe
≥2388
≥30.0 kOe
247-271
31-34 MGOe
200Reference values
G35EH1.180-1.220
11.80-12.20 kGs
≥892
≥11.2 kOe
≥2388
≥30.0 kOe
263-287
33-36 MGOe
200Reference values
G38EH1.220-1.270
12.20-12.70 kGs
≥915
≥11.5 kOe
≥2388
≥30.0 kOe
287-310
36-39 MGOe
200Reference values
G40EH1.250-1.300
12.50-13.00 kGs
≥939
≥11.8 kOe
≥2388
≥30.0 kOe
302-326
38-41 MGOe
200Reference values
G42EH1.280-1.330
12.80-13.30 kGs
≥971
≥12.2 kOe
≥2388
≥30.0 kOe
310-342
39-43 MGOe
200Reference values
G45EH1.330-1.380
13.30-13.80 kGs
≥995
≥12.5 kOe
≥2388
≥30.0 kOe
334-366
42-46 MGOe
200Reference values
G48EH1.360-1.420
13.60-14.20 kGs
≥1027
≥12.9 kOe
≥2388
≥30.0 kOe
358-390
45-49 MGOe
200Reference values
G50EH1.390-1.450
13.90-14.50 kGs
≥1051
≥13.2 kOe
≥2388
≥30.0 kOe
374-406
47-51 MGOe
200Reference values
G52EH1.420-1.480
14.20-14.80 kGs
≥1067
≥13.4 kOe
≥2388
≥30.0 kOe
390-422
49-53 MGOe
200Reference values
G54EH1.450-1.510
14.50-15.10 kGs
≥1091
≥13.7 kOe
≥2388
≥30.0 kOe
406-438
51-55 MGOe
200Development reference
G28TH1.050-1.100
10.50-11.00 kGs
≥780
≥9.8 kOe
≥2786
≥35.0 kOe
207-231
26-29 MGOe
230Reference values
G30TH1.080-1.140
10.80-11.40 kGs
≥804
≥10.1 kOe
≥2786
≥35.0 kOe
223-247
28-31 MGOe
230Reference values
G33TH1.130-1.180
11.30-11.80 kGs
≥852
≥10.7 kOe
≥2786
≥35.0 kOe
247-271
31-34 MGOe
230Reference values
G35TH1.170-1.220
11.70-12.20 kGs
≥876
≥11.0 kOe
≥2786
≥35.0 kOe
263-287
33-36 MGOe
230Reference values
G38TH1.220-1.270
12.20-12.70 kGs
≥915
≥11.5 kOe
≥2786
≥35.0 kOe
287-310
36-39 MGOe
230Reference values
G40TH1.250-1.290
12.50-12.90 kGs
≥955
≥12.0 kOe
≥2786
≥35.0 kOe
295-326
37-41 MGOe
230Reference values
G42TH1.280-1.330
12.80-13.30 kGs
≥971
≥12.2 kOe
≥2786
≥35.0 kOe
310-342
39-43 MGOe
230Reference values
G45TH1.320-1.380
13.20-13.80 kGs
≥995
≥12.5 kOe
≥2786
≥35.0 kOe
334-366
42-46 MGOe
230Reference values
G48TH1.360-1.420
13.60-14.20 kGs
≥1027
≥12.9 kOe
≥2786
≥35.0 kOe
358-390
45-49 MGOe
230Reference values
G50TH1.390-1.450
13.90-14.50 kGs
≥1051
≥13.2 kOe
≥2786
≥35.0 kOe
374-406
47-51 MGOe
230Development reference
G28YH1.040-1.100
10.40-11.00 kGs
≥780
≥9.8 kOe
≥3184
≥40.0 kOe
207-231
26-29 MGOe
250Reference values
G30YH1.080-1.140
10.80-11.40 kGs
≥804
≥10.1 kOe
≥3184
≥40.0 kOe
223-247
28-31 MGOe
250Reference values
G33YH1.130-1.180
11.30-11.80 kGs
≥852
≥10.7 kOe
≥3184
≥40.0 kOe
247-271
31-34 MGOe
250Reference values
G35YH1.170-1.220
11.70-12.20 kGs
≥876
≥11.0 kOe
≥3184
≥40.0 kOe
263-287
33-36 MGOe
250Reference values
G38YH1.220-1.270
12.20-12.70 kGs
≥915
≥11.5 kOe
≥3184
≥40.0 kOe
287-310
36-39 MGOe
250Reference values
G40YH1.250-1.290
12.50-12.90 kGs
≥946
≥11.9 kOe
≥3184
≥40.0 kOe
295-326
37-41 MGOe
250Reference values
G42YH1.280-1.330
12.80-13.30 kGs
≥969
≥12.2 kOe
≥3184
≥40.0 kOe
310-342
39-43 MGOe
250Reference values
G45YH1.310-1.360
13.10-13.60 kGs
≥987
≥12.4 kOe
≥3184
≥40.0 kOe
326-366
41-46 MGOe
250Development reference
12 original demagnetization curves

Read the original curve image for its axes, temperature traces and test context. Match the material route and working point before using a curve. These source images have not been digitized or regenerated. A plotted temperature trace is not a continuous service rating: N58, N56M and N52SH retain the PDF’s 70°C, 90°C and 140°C typical limits respectively. No sample lot, test geometry or instrument is specified in the source.

N58 HRE-free original demagnetization curves
N58 · HRE-free · open full-size curve
N56M HRE-free original demagnetization curves
N56M · HRE-free · open full-size curve
N54H HRE-free original demagnetization curves
N54H · HRE-free · open full-size curve
N50SH HRE-free original demagnetization curves
N50SH · HRE-free · open full-size curve
N52SH HRE-free original demagnetization curves
N52SH · HRE-free · open full-size curve
N35UH HRE-free original demagnetization curves
N35UH · HRE-free · open full-size curve
G56H GBD original demagnetization curves
G56H · GBD · open full-size curve
G54SH GBD original demagnetization curves
G54SH · GBD · open full-size curve
G54UH GBD original demagnetization curves
G54UH · GBD · open full-size curve
G52EH GBD original demagnetization curves
G52EH · GBD · open full-size curve
G48TH GBD original demagnetization curves
G48TH · GBD · open full-size curve
G42YH GBD original demagnetization curves
G42YH · GBD · open full-size curve
Design interfaces

Geometry & dimensional interfaces

Mark dimensions, tolerances and magnetization direction on the drawing.

Ring OD ID thickness, block L W H, and arc length width height dimensions

Ring interfaces

Outside diameter · bore · thickness
Define the mating and locating surfaces.

Block geometry

Length · width · height
Specify tolerances and edge requirements.

Motor arc segments

Arc length · width · height
Confirm rotor fit and arc geometry.

Dimension diagrams are illustrative, not manufacturing drawings. Confirm datum, tolerance and measurement method for the part.

±0.10 mmAs-sintered reference
±0.05 mmSliced / profile-ground
±0.02 mmPrecision ground faces
Per drawingParallelism / perpendicularity

Typical process references only. NdFeB is hard and abrasive; specify tight tolerances only where function requires them.

Custom holes, notches, product forms and machining referencesView details
Custom hole and notch geometry
Custom hole and notch geometry

Standard and custom NdFeB geometries, with magnetization and tolerances matched to the magnetic circuit:

  • Discs & cylinders — axially or diametrically magnetized
  • Blocks & rectangles — as-sintered or ground on all faces
  • Rings — radial or axial, ID/OD ground for concentricity
  • Arcs & segments — rotor and stator segments, skewed on request

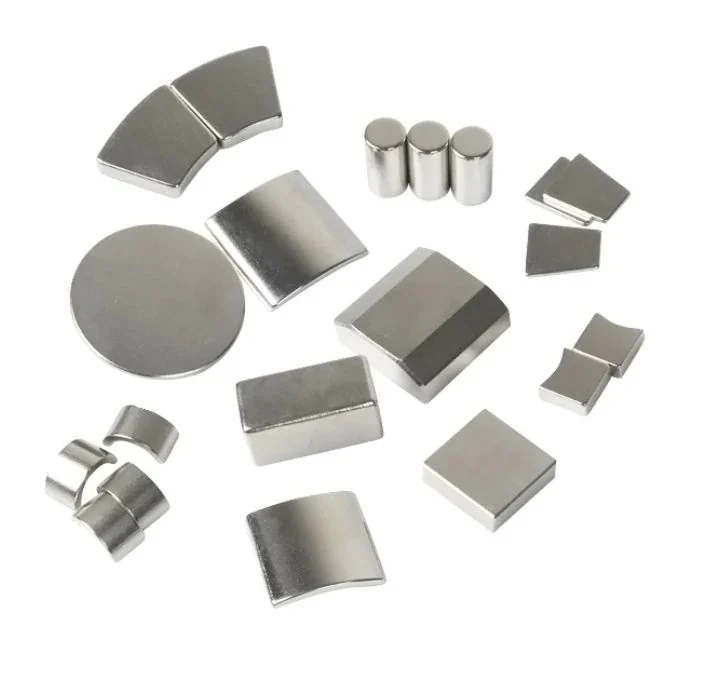

  • Custom shapes — machined to your drawing, including holes and notches

Machining & Dimensional Tolerances

NdFeB is hard and abrasive. Tight tolerances increase cost and should be specified only where functionally required:

If needed, scroll horizontally to view all columns.

Original block magnet geometry illustration
Block geometry reference — specify functional dimensions and tolerances.
Block geometry — define grade, magnetization direction and coating with the drawing.
Product Range

Product forms and selection

Selection factors: working temperature, opposing field, geometry, magnetization direction, coating and magnetic acceptance.

Four separate NdFeB forms: rectangular block, curved arc segment, disc and ring
Disc, ring, block and arc forms connect the drawing to the available space and magnetic circuit.
Dimensional tolerance tableView details
ProcessTypical ToleranceNotes
As-sintered±0.1 mmMost economical; suitable for non-critical faces
Sliced / profile-ground±0.05 mmStandard for block and arc dimensions
Centerless / surface ground±0.02 mmFor mating faces and press-fit diameters
Parallelism / perpendicularityPer drawingConfirmed during DFM review
Surface protection

Coatings & surface protection

Match the finish to the exposure and bonding interface.

Nickel, zinc and epoxy coated magnets

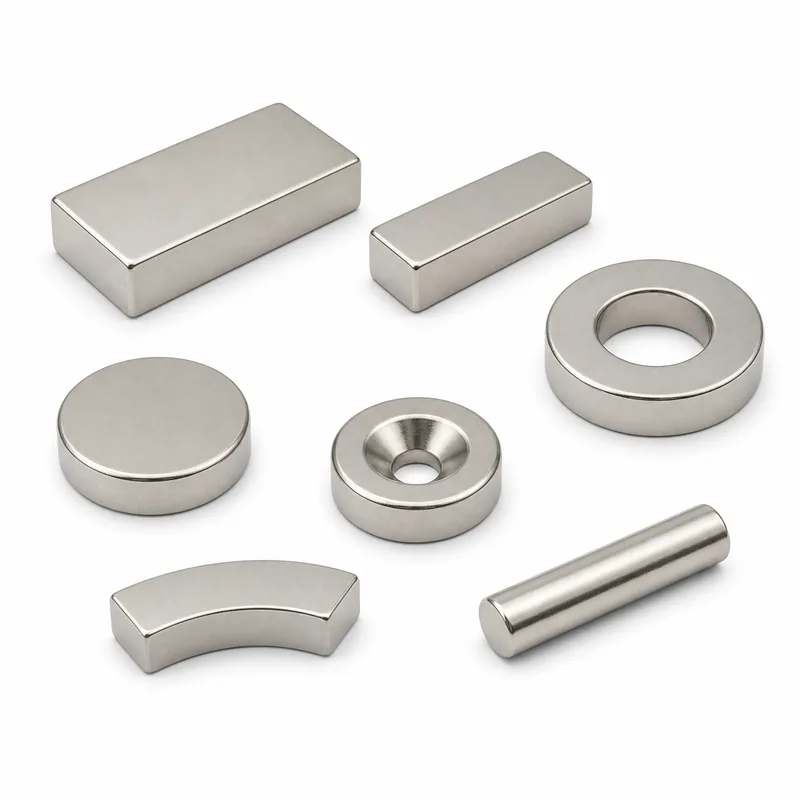

Ni-Cu-Ni

Corrosion protection and handling durability, assessed for the intended environment.

Zinc

Cost and matte finish; check coating and exposure suitability for the part.

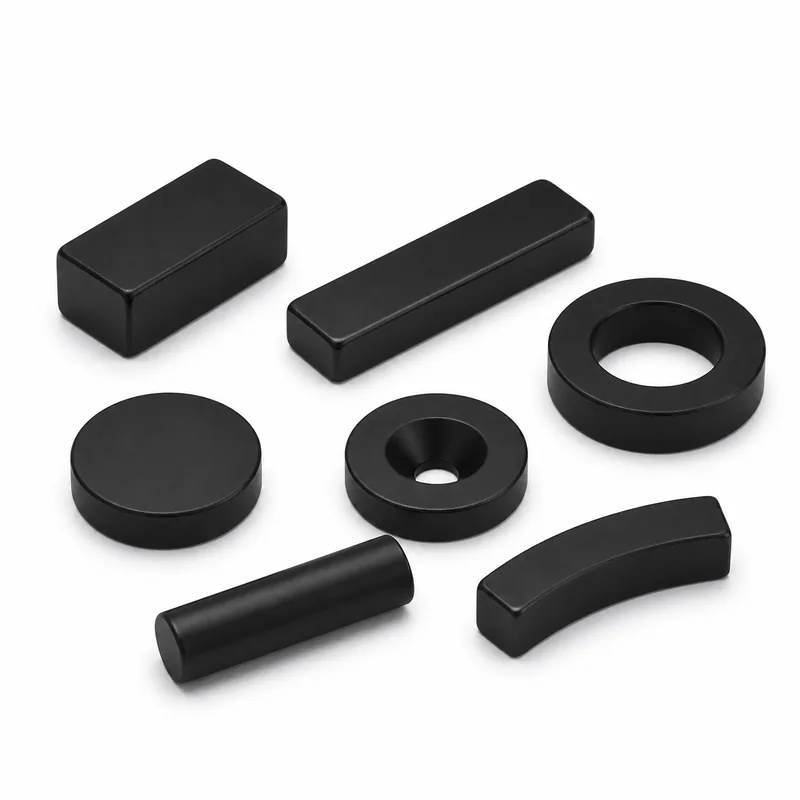

Epoxy

Electrical insulation and chemical compatibility; agree adhesion and acceptance tests.

Specify the test, not just the finishContact medium · coating thickness · bonding interface

Agree test method, duration, specimen and acceptance criteria.

Full coating data & alternatives
Coating thickness, test references and Parylene alternativesView details
Ni–Cu–NiZincEpoxy

If needed, scroll horizontally to view all columns.

The compact coating table gives finish examples. For thickness, neutral salt-spray, PCT and coating-temperature references with their conditions, see the detailed coating specification table.

NdFeB corrosion protection must match the environment and assembly process. The coating figures below are published references; specify the salt-spray method, duration, specimen preparation and acceptance criterion before treating them as a part requirement:

CoatingThicknessSalt SprayBest For
Ni-Cu-Ni (standard)15–20µm48h+General indoor use
Epoxy15–25µm72h+Humidity, marine
Zinc8–12µm24h+Cost-sensitive, dry
Parylene C10–15µm240h+Medical, extreme

NdFeB Coating Selection

Compare nickel, zinc, epoxy, parylene and other protection routes.

Compare coatings

Ni–Cu–Ni Coating

Metallic protection for the selected operating environment.

Zinc Coating

An alternative finish for defined service conditions.

Epoxy Coating

Polymer protection with project-defined exposure requirements.

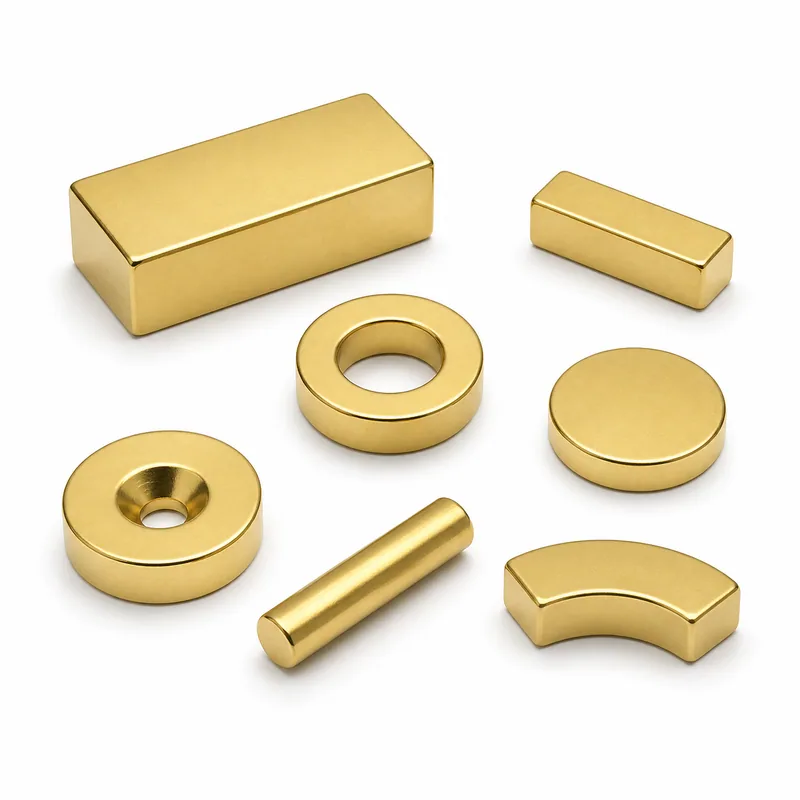

Gold Coating

A specialist finish to the agreed specification.

Direction & operating point

Magnetization in the magnetic circuit

Specify pole pattern, working gap and continuous / peak temperature.

Axial, diametrical, radial, multi-pole and skewed magnetization illustrations

Axial

Through thickness

Diametrical

Across diameter

Radial

Ring ID / OD

Multi-pole

2–60+ poles on one face

Skewed

Angled poles for cogging reduction

Validate the operating pointTemperature & exposure timeOpposing field & working gapAccepted irreversible loss
Pole verification, encoder geometry and operating-temperature limitsView details

Magnetization Patterns

Magnetization and flux verification requirements are agreed for each project:

  • Axial — through thickness (most common)
  • Diametric — through diameter (rotor applications)
  • Radial — inside or outside diameter (ring magnets)
  • Multi-pole — 2 to 60+ poles on one face (encoders, sensors)
  • Skewed — angled poles for cogging reduction
Encoder ring with contrasting gray regions illustrating a pole pattern
Schematic pole regions on an encoder face; confirm the pattern on the drawing.
Disc magnet diagrams: axial magnetization through the thickness on the left; diametrical magnetization across the diameter on the right
AxialThrough the thicknessDiametricalAcross the diameter
Arrows show magnetization direction, not external field lines. Define polarity and orientation on the drawing.

Specify the Magnetic Operating Point

A shape is only the starting point. Define the magnetization direction, working gap and continuous / peak temperature before selecting a grade from the tables.

For coated parts, specify the finish, contact medium and bonding interface. Agree dimensional inspection after coating and the magnetic acceptance method.

Compare NdFeB grade data
  • Working-point and demagnetization requirements
  • Coating thickness, adhesion and environmental tests
  • Grade data, drawing datums and selected inspection records
Material routes

Material & process routes

Thin NdFeB blocks

HRE-free NdFeB

Heavy-rare-earth-free — not rare-earth-free. Agree composition, verification method and selected grade.

NdFeB blocks of differing thickness

Grain boundary diffusion

A separate route to tailor coercivity. Review thickness, geometry, operating conditions and applicable curves.

Grade labels alone do not declare composition or guarantee finished-part performance. Require grade-specific material and process evidence.

HRE-free declarations, diffusion route and validation requirementsView details

Empire offers HRE-free NdFeB and grain boundary diffusion routes for project review. Start with the magnetic circuit, temperature profile and acceptance criteria, then agree the grade and supporting material data.

The published grade tables provide the available reference data. Grade-specific composition and process documentation are required before approval as an HRE-free or diffusion specification.

Typical applications

Applications & integration

Exploded arc magnets and rotor relationship
Disc magnet and magnetic sensor
Magnetic motor assembly cutaway

Motors

Arc segments matched to the rotor.
Check retention, temperature and working gap.

Sensors & encoders

Rings, discs and custom shapes.
Define pole pattern, position and signal needs.

Magnetic assemblies

Review the complete magnetic circuit.
Field estimates are not pull force or torque.

EV / BLDC motors

N42SH–N48SH

High torque density in compact rotors.

Sensors & encoders

N35–N42

Strong fields in small sensing packages.

Magnetic separators

N42–N52

High field gradient for fine-particle capture.

Wind generators

N42SH–N48SH

Direct-drive efficiency at elevated temperature.

Acoustic devices

N35–N45

Compact drivers with strong flux.

Magnetic couplings

N38SH–N42SH

Torque transmission through sealed barriers.

Grade ranges are starting points, not design approvals. Validate temperature, geometry, opposing field, corrosion protection and acceptance.

Application selection and rotor retention interfaceView details
ApplicationsApplication selection notesExplore applications and requirements
Rotor segment retention interface
Rotor segment retention interface

Why NdFeB?

Choose NdFeB when the magnetic circuit calls for a high energy product in a compact space. Grade, temperature, geometry and demagnetizing field must be reviewed together; the examples below are starting points, not final design approvals.

Applications

EV / BLDC Motors

N42SH–N48SH

High torque density in compact rotor

Sensors & Encoders

N35–N42

Strong, stable field in small package

Magnetic Separators

N42–N52

High field gradient for fine particle capture

Wind Turbine Generators

N42SH–N48SH

Direct-drive efficiency at elevated temp

Acoustic Devices

N35–N45

Compact drivers with strong flux

Magnetic Couplings

N38SH–N42SH

Torque through sealed barriers

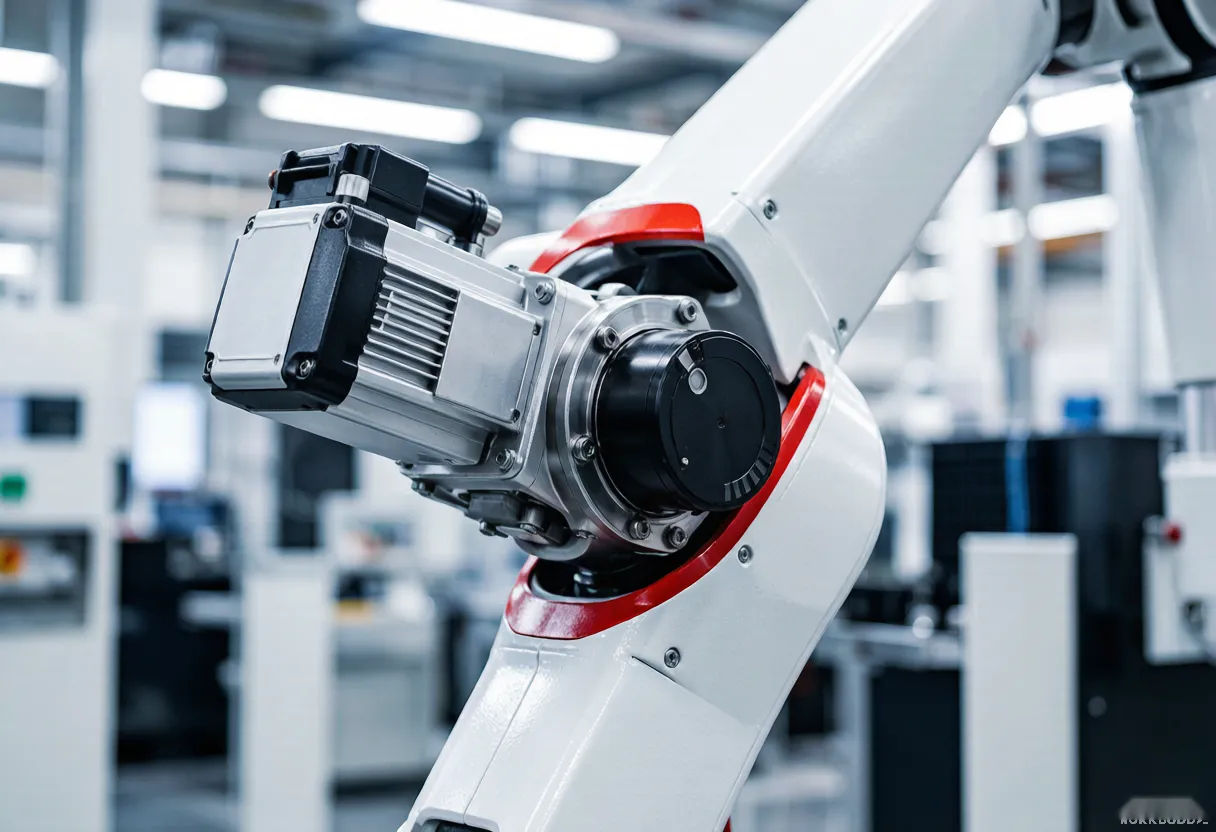

Automotive applications Robotics applications

Quality assurance

Inspection & production review

Dimensional caliper and magnetic probe measurement schematics

Dimensional interfaces

Gauge or CMM reports,
as agreed in the drawing.

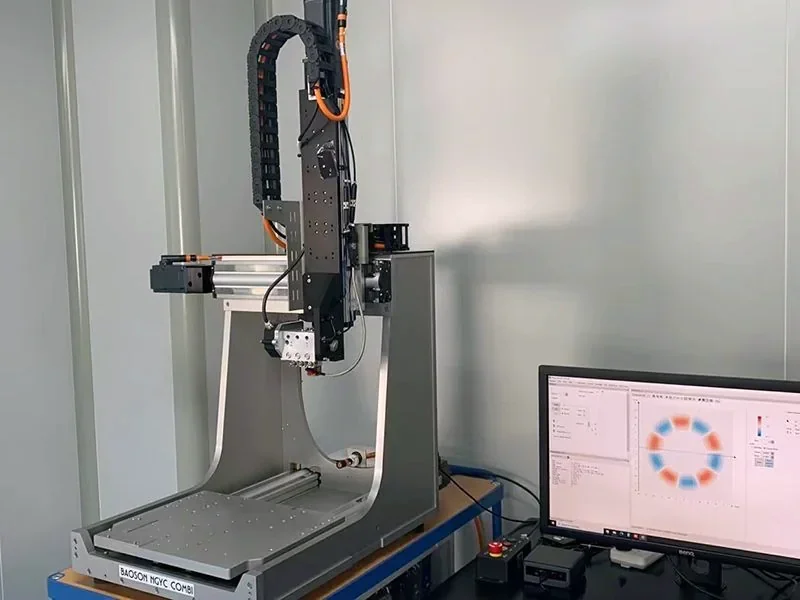

Magnetic measurement

Define location, working gap
and acceptance method.

Supporting documentation

  • Br / Hcb / Hcj / (BH)max
  • Dimensional inspection
  • Material and coating records
  • Agreed inspection reports

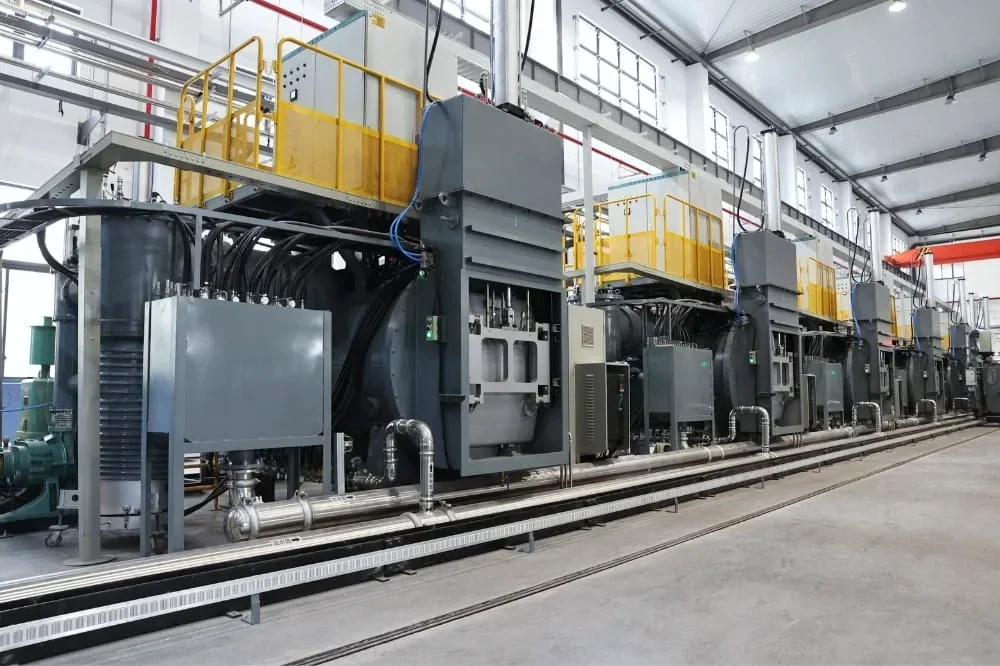

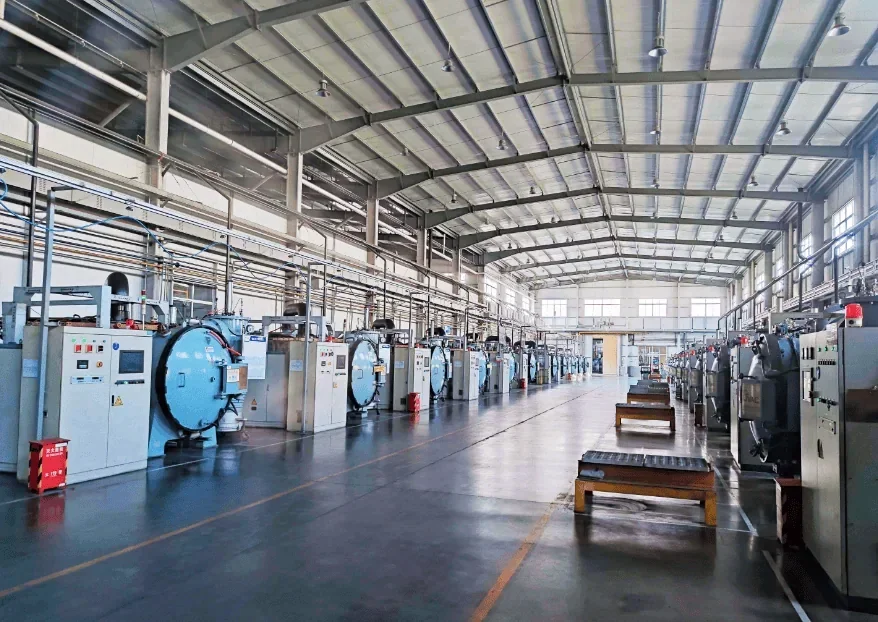

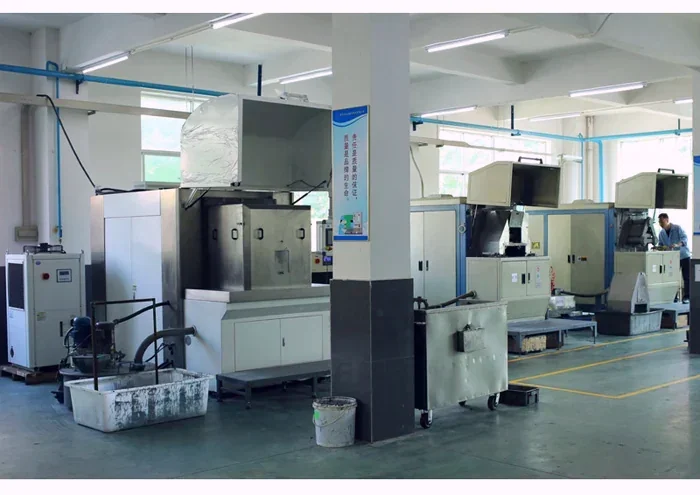

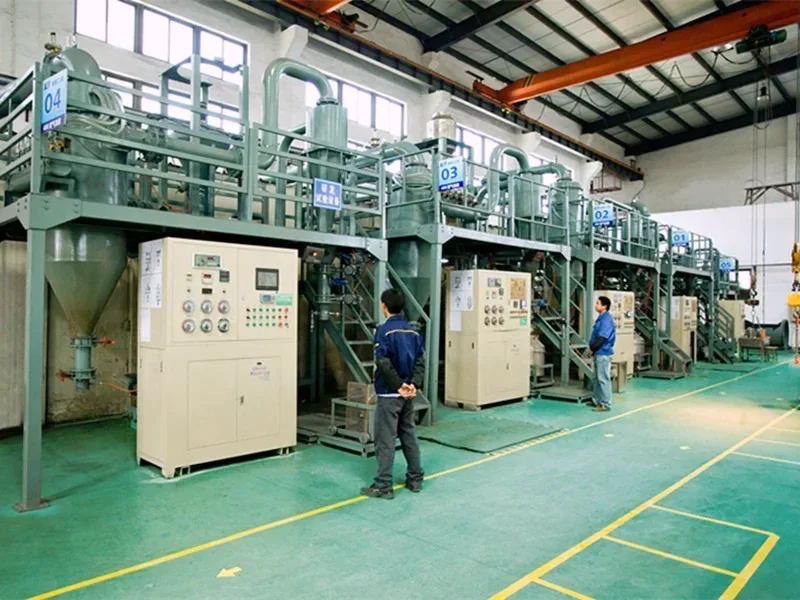

Production review
Product, application and measurement schematics — not factory or test evidence.

COA & magnetic properties

Br, Hcb, Hcj and (BH)max against the agreed grade.

Dimensional / DFM

Critical dimensions, gauge or CMM records and sampling.

Compliance & qualification

RoHS / REACH; CMRT / EMRT on request; FAI / PPAP by project.

Inspection plans, original ring interface and magnetic validation dataView details
Ring dimensional interfaces
Ring dimensional interfaces
OD
Outer diameter
ID
Bore diameter
Thickness
Axial length

Identify the functional diameters, thickness and drawing datums. Confirm concentricity and the agreed inspection after coating.

Quality documentation

Inspection records and acceptance requirements

Certificates & quality system

Check the grade in its magnetic circuit

A room-temperature property table is a starting point. Agree the operating case and the evidence needed to check the finished magnet in its magnetic circuit.

Scroll horizontally on smaller screens to read every column.

Information to agree for the engineering review
Review questionProvide with the designAgree before release
Temperature and demagnetizationContinuous and peak temperature, exposure time, opposing field and magnetic circuit geometry.Applicable demagnetization curves, operating-point review and irreversible-loss acceptance.
Material routeCandidate grade, composition restrictions, dimensions and magnetization direction.Grade-specific material declaration, process route and document revision.
Surface and assemblyCoating, adhesive, mating materials, humidity and chemical exposure.Coating and adhesion requirements, dimensional allowance and environmental test conditions.
Magnetic measurementMeasurement location, working gap, fixture and expected field or flux.Sample test setup, units, acceptance range and record format.
Engineering reference

Read the data behind the selection

Original G54UH demagnetization curve

Original curve data

Review the grade, temperature and magnetic operating point together.

View all 12 curves
Reference versions and specific checks

These are distinct supply specifications. Identical grade names across older tables and this reference do not establish interchangeability. The original grade directories and their individual PDFs remain available above. The displayed values follow the dated document reference. Alternate archived values and unit checks are recorded below; agree one complete specification set for the selected part rather than combining values from different records.

Scroll horizontally to read all columns.

Reference differences requiring an agreed specification
GradeRecorded difference / check
N54HBr T: PDF 1.44-1.50; webpage 1.45-1.50
Br kGs: PDF 14.4-15.0; webpage 14.5-15.0
N56HBr T: PDF 1.46-1.51; webpage 1.47-1.52
Br kGs: PDF 14.6-15.1; webpage 14.7-15.2
N48UHBr T: PDF 1.36-1.41; webpage 1.37-1.41
G60MPublished Hcb minimum 1146 kA/m exceeds published Hcj minimum 1114 kA/m (14.4 vs 14.0 kOe). Different minimum guarantees alone are not proof of impossible measured values, but unusual ordering warrants clarification before presenting as selected engineering specification.
G58UHPublished BHmax 414–446 kJ/m³ versus 53–57 MGOe are not mutually consistent within normal rounding; source may contain a copied SI range.
N56HPublished Hcb minimum 1098 kA/m vs 13.6 kOe are not a close conversion; source inconsistency requires clarification.

Development entries remain references for engineering discussion, not a production availability commitment. Confirm the applicable specification revision and production status with the proposed part.

Physical properties for material and thermal design

Scroll horizontally to read all columns.

Sintered NdFeB — physical reference
Property / conditionUnitReference value
Densityg/cm³7.45-7.65
Vickers hardnessHV550
Compressive strengthMPa1000
Flexural strengthMPa300
Elastic modulusGPa160
Specific heat capacityJ / (kg・K)440
Thermal conductivity (20°C)W / (m・K)7.5
Thermal expansion, parallel to orientation (20–100°C)10⁻⁶ / K5
Thermal expansion, perpendicular to orientation (20–100°C)10⁻⁶ / K-1
Electrical resistivity, parallel (20°C)μΩ・m1.5
Electrical resistivity, perpendicular (20°C)μΩ・m1.3
Curie temperature℃310-380
Recoil permeability/1.05

Family reference values are not per-grade acceptance limits. Parallel and perpendicular refer to the material orientation axis. Curie temperature is not the permitted service temperature.

Material and geometry options

Ce-containing NdFeB

High-abundance cerium substitution offers a distinct material-cost route. Review the specific Ce-containing grade, composition and temperature curve; it is not automatically equivalent to the Ce-free grade with a similar name.

Radial and multipole rings

Distinguish radial material orientation from the final magnetization pattern. Specify ring diameters, pole count, pole pitch, working gap and accepted field waveform.

Insulated laminated magnets

Electrically insulated segments can interrupt eddy-current paths. Specify layer geometry, insulation, adhesive, temperature and mechanical retention, then validate loss reduction in the actual motor.

Grooved magnets

Groove geometry provides a project-specific route for magnetic, thermal and assembly design. Agree groove depth, spacing, edge condition, coating coverage and the retained mechanical section.

Scroll horizontally to read all columns.

Ring geometry references
ProductOuter diameter mmID / ODLength mmPole definition
Radially oriented ring20–150; recommended OD <700.75–0.955–50Pole count selected through magnetizing tooling; single, straight multipole or skewed multipole patterns.
Continuous Halbach multipole ring5–500.6–0.85–50Pole count determined during pressing/forming; inner- or outer-circumference multipole patterns.

These ranges do not guarantee every combination or tolerance. Review the drawing, material and magnetization specification. The ring geometry reference PDF records dimensional ranges and magnetization concepts. Define the required field waveform and measurement conditions for the actual part during engineering review.

Material and microstructure choices include multiphase alloy design, in-situ diffusion, surface grain boundary diffusion and grain refinement. They are different routes; specify composition, thickness and grade-specific evidence rather than treating all as HRE-free material.

Selected process references and their conditions

Scroll horizontally to read all columns.

Bounded process references
ReferencePublished valueConditions to retain
HAST mass loss<1 mg/cm²130°C, 2.7 atm, 95% RH; 7 / 14 / 20 days. Pressure basis, sample preparation, coating state and exposed-area definition require agreement.
Magnetic angle≤3°; optimized applications ≤1°Define magnetic datum, fixture and method. The tighter reference is for selected optimized processes.
Grain refinement2.5–4 μm; Hcj increase 1.5–3.0 kOeComparison with the source’s conventional process; not an increment to add to every grade.
In-situ diffusionDy / Tb reduction 10–20%Relative process reference. Identify baseline composition, grade and geometry.
HRE-free interface optimizationBr increase 100–200 GsComparative result; use the selected grade specification rather than adding this to its Br.
Temperature behavior10–15°C improvementSelected same-specification comparison with an unspecified baseline. Not a universal operating-temperature increase.

These comparative process references support engineering discussion. They are not NINGBO EMPIRE test results, certified process capability or measured performance for a supplied part. Keep reversible temperature coefficients separate from irreversible demagnetization and validate both for the actual circuit.

Grade planning matrices

Planning-map temperature columns are not per-grade operating limits. Use the actual PDF rows above, including N58/N60 at 70°C and N52SH at 140°C. Text labels preserve the original material-route and development distinctions. The matrix label “60UH” remains in its original 58 MGOe row.

Scroll horizontally to read all columns.

Ce-free NdFeB planning matrix
Map row (MGOe)Map column 80°CMap column 100°CMap column 120°CMap column 150°CMap column 180°CMap column 200°CMap column 230°CMap column 250°C
60N60
Under development
60M
Under development
60H
Under development
60SH
Under development
————
58N58
HRE-free
58M
Tb diffusion
58H
Dy diffusion
58SH
Under development
60UH
Under development
———
56N56
HRE-free
56M
HRE-free
56H
Tb diffusion
56SH
Dy diffusion
56UH
Under development
———
54N54
HRE-free
54M
HRE-free
54H
HRE-free
54SH
Dy diffusion
54UH
Dy diffusion
54EH
Under development
——
52N52
HRE-free
52M
HRE-free
52H
HRE-free
52SH
HRE-free
52UH
Dy diffusion
52EH
Dy diffusion
——
50N50
HRE-free
50M
HRE-free
50H
HRE-free
50SH
HRE-free
50UH
Dy diffusion
50EH
Dy diffusion
50TH
Under development
—
48N48
HRE-free
48M
HRE-free
48H
HRE-free
48SH
HRE-free
48UH
Tb diffusion
48EH
Dy diffusion
48TH
Dy diffusion
—
45N45
HRE-free
45M
HRE-free
45H
HRE-free
45SH
HRE-free
45UH
Tb diffusion
45EH
Dy diffusion
45TH
Dy diffusion
45YH
Under development
42N42
HRE-free
42M
HRE-free
42H
HRE-free
42SH
HRE-free
42UH
Tb diffusion
42EH
Dy diffusion
42TH
Dy diffusion
42YH
Dy diffusion
40N40
HRE-free
40M
HRE-free
40H
HRE-free
40SH
HRE-free
40UH
Tb diffusion
40EH
Tb diffusion
40TH
Dy diffusion
40YH
Dy diffusion
38N38
HRE-free
38M
HRE-free
38H
HRE-free
38SH
HRE-free
38UH
Tb diffusion
38EH
Tb diffusion
38TH
Dy diffusion
38YH
Dy diffusion
35N35
HRE-free
35M
HRE-free
35H
HRE-free
35SH
HRE-free
35UH
HRE-free
35EH
Tb diffusion
35TH
Tb diffusion
35YH
Dy diffusion

Scroll horizontally to read all columns.

Ce-containing NdFeB planning matrix
Map row (MGOe)Map column 80°CMap column 100°CMap column 120°CMap column 150°CMap column 180°C
54N54
No Dy/Tb
————
52N52
No Dy/Tb
52M
No Dy/Tb
52H
No Dy/Tb
——
50N50
No Dy/Tb
50M
No Dy/Tb
50H
No Dy/Tb
50SH
Contains Dy/Tb
—
48N48
No Dy/Tb
48M
No Dy/Tb
48H
No Dy/Tb
48SH
Contains Dy/Tb
48UH
Contains Dy/Tb
45N45
No Dy/Tb
45M
No Dy/Tb
45H
No Dy/Tb
45SH
Contains Dy/Tb
45UH
Contains Dy/Tb
42N42
No Dy/Tb
42M
No Dy/Tb
42H
No Dy/Tb
42SH
Contains Dy/Tb
42UH
Contains Dy/Tb
40N40
No Dy/Tb
40M
No Dy/Tb
40H
No Dy/Tb
40SH
Contains Dy/Tb
40UH
Contains Dy/Tb
38N38
No Dy/Tb
38M
No Dy/Tb
38H
No Dy/Tb
38SH
No Dy/Tb
38UH
Contains Dy/Tb
35N35
No Dy/Tb
35M
No Dy/Tb
35H
No Dy/Tb
35SH
No Dy/Tb
35UH
Contains Dy/Tb
33——33H
No Dy/Tb
33SH
No Dy/Tb
33UH
Contains Dy/Tb
30———30SH
No Dy/Tb
30UH
Contains Dy/Tb

The Ce-containing matrix is a separate material route. No complete per-grade CeNdFeB property sheet was provided, so conventional NdFeB values must not be assigned to these entries.

Grade selection and reference conditionsView details
Find & compare grades

The existing specification directory is retained below. For additional conventional and GBD references, use the separate supply specification series; similarly named grades must keep their own data and document revision.

Operating conditions

Temperature and magnetic performance

Application Selection Notes

If needed, scroll horizontally to view all columns.

Temperature coefficients retain the source notation (%/°C). Positive entries may denote magnitudes. Confirm the sign and test interval in the applicable grade document before calculation.

GradeTemp. reference*Typical application
N3580°CGeneral purpose, cost-effective
N4280°CHigh performance standard
N45SH150°CEV motors, high-temp
N48SH150°CPremium motor grade
N38UH180°CAerospace, high-coercivity
N35EH200°CExtreme temperature

*Temperature values are selection references, not part-specific limits. Confirm the grade, magnetic circuit and test conditions before specifying.

Br = residual induction · Hcb = coercivity · Hcj = intrinsic coercivity · (BH)max = max energy product · αBr/βHcj = temperature coefficients. Coefficients retain the source notation: some rows show magnitudes and others signed values. Confirm the signed coefficient and temperature interval in the selected grade datasheet before calculation.

Grade datasheets

Magnet Grade & Temperature

Balance flux, coercivity, peak temperature and irreversible-loss margin.

Review grade selection
Start your project

Prepare your project review

Share your requirements for a part-specific review.

Drawing & tolerances2D / 3D, revision, geometry and magnetizationOperating conditionsContinuous / peak temperature, exposure and opposing fieldSurface & acceptanceCoating, adhesive, mating materials and test setupQuantity & deliveryPrototype / pilot / series, timing, destination and Incoterms
Request a Quote
Ring, block, disc and arc magnets

Share Br / Hcj / (BH)max targets, field or flux measurement location and gap, and the sample acceptance plan. Confidential RFQ · NDA available on request.
