SmCo 1:5 · SmCo₅
Higher coercivity and easier saturation magnetization. Often preferred for very small, complex parts and fine-grain requirements.
Compare 1:5 and 2:17 materials, geometries and grade data for temperature-sensitive magnetic circuits.

The magnetic circuit and thermal exposure determine the specification, not the material name alone.
Higher coercivity and easier saturation magnetization. Often preferred for very small, complex parts and fine-grain requirements.
Higher energy product and a better temperature coefficient. Commonly selected for its performance–cost balance.
Filter the S / PS directory by grade or series and compare up to four entries. Keep the 1:5 or 2:17 material system and the selected grade document with the operating-temperature review.
Scroll to view more columns.
| Name | Download | Grade | Br mT (kGs) | Hcb kA/m (kOe) | Hcj kA/m (kOe) | (BH)max kJ/m³ (MGOe) | αBr %/°C | βHcj %/°C |
|---|---|---|---|---|---|---|---|---|
| Sm2Co17 63/199 | S10H | 580-710 (5.8-7.1) | ≥422 (≥5.3) | ≥1990 (≥25) | 63-95 (8-12) | 0.03 | 0.2 | |
| Sm2Co17 79/199 | S12H | 650-760 (6.5-7.6) | ≥478 (≥6.0) | ≥1990 (≥25) | 79-111 (10-14) | 0.03 | 0.2 | |
| Sm2Co17 95/199 | S14H | 710-830 (7.1-8.3) | ≥525 (≥6.6) | ≥1990 (≥25) | 95-127 (12-16) | 0.03 | 0.2 | |
| Sm2Co17 119/199 | S16H | 790-860 (7.9-8.6) | ≥589 (≥7.4) | ≥1990 (≥25) | 119-143 (15-18) | 0.03 | 0.2 | |
| Sm2Co17 135/199 | S18H | 830-890 (8.3-8.9) | ≥605 (≥7.6) | ≥1990 (≥25) | 135-159 (17-20) | 0.03 | 0.2 | |
| Sm2Co17 151/199 | S20H | 870-930 (8.7-9.3) | ≥653 (≥8.2) | ≥1990 (≥25) | 151-175 (19-22) | 0.03 | 0.2 | |
| Sm2Co17 159/199 | S22H | 910-980 (9.1-9.8) | ≥693 (≥8.7) | ≥1990 (≥25) | 159-183 (20-23) | 0.03 | 0.2 | |
| Sm2Co17 175/199 | S24H | 960-1030 (9.6-10.3) | ≥724 (≥9.1) | ≥1990 (≥25) | 175-199 (22-25) | 0.03 | 0.2 | |
| Sm2Co17 191/199 | S26H | 1010-1060 (10.1-10.6) | ≥733 (≥9.2) | ≥1990 (≥25) | 191-215 (24-27) | 0.03 | 0.2 | |
| Sm2Co17 207/199 | S28H | 1040-1090 (10.4-10.9) | ≥749 (≥9.4) | ≥1990 (≥25) | 207-231 (26-29) | 0.03 | 0.2 | |
| Sm2Co17 222/199 | S30H | 1080-1110 (10.8-11.1) | ≥773 (≥9.7) | ≥1990 (≥25) | 222-247 (28-31) | 0.035 | 0.2 | |
| Sm2Co17 239/199 | S32H | 1120-1160 (11.2-11.6) | ≥812 (≥10.2) | ≥1990 (≥25) | 239-263 (30-33) | 0.038 | 0.2 | |
| Sm2Co17 247/199 | S34H | 1150-1180 (11.5-11.8) | ≥835 (≥10.5) | ≥1990 (≥25) | 247-270 (31-34) | 0.04 | 0.25 | |
| Sm2Co17 255/199 | S35H | 1170-1200 (11.7-12.0) | ≥860 (≥10.8) | ≥1990 (≥25) | 255-278 (32-35) | 0.04 | 0.25 | |
| Sm2Co17 63/159 | S10 | 580-710 (5.8-7.1) | ≥422 (≥5.3) | ≥1592 (≥20) | 63-95 (8-12) | 0.03 | 0.2 | |
| Sm2Co17 79/159 | S12 | 650-760 (6.5-7.6) | ≥478 (≥6.0) | ≥1592 (≥20) | 79-111 (10-14) | 0.03 | 0.2 | |
| Sm2Co17 95/159 | S14 | 710-830 (7.1-8.3) | ≥525 (≥6.6) | ≥1592 (≥20) | 95-127 (12-16) | 0.03 | 0.2 | |
| Sm2Co17 119/159 | S16 | 790-860 (7.9-8.6) | ≥589 (≥7.4) | ≥1592 (≥20) | 119-143 (15-18) | 0.03 | 0.2 | |
| Sm2Co17 135/159 | S18 | 830-890 (8.3-8.9) | ≥605 (≥7.6) | ≥1592 (≥20) | 135-159 (17-20) | 0.03 | 0.2 | |
| Sm2Co17 151/159 | S20 | 870-930 (8.7-9.3) | ≥653 (≥8.2) | ≥1592 (≥20) | 151-175 (19-22) | 0.03 | 0.2 | |
| Sm2Co17 159/159 | S22 | 910-980 (9.1-9.8) | ≥693 (≥8.7) | ≥1592 (≥20) | 159-183 (20-23) | 0.03 | 0.2 | |
| Sm2Co17 175/159 | S24 | 960-1030 (9.6-10.3) | ≥724 (≥9.1) | ≥1592 (≥20) | 175-199 (22-25) | 0.03 | 0.2 | |
| Sm2Co17 191/159 | S26 | 1010-1060 (10.1-10.6) | ≥733 (≥9.2) | ≥1592 (≥20) | 191-215 (24-27) | 0.03 | 0.2 | |
| Sm2Co17 207/159 | S28 | 1040-1090 (10.4-10.9) | ≥749 (≥9.4) | ≥1592 (≥20) | 207-231 (26-29) | 0.03 | 0.2 | |
| Sm2Co17 222/159 | S30 | 1080-1110 (10.8-11.1) | ≥773 (≥9.7) | ≥1592 (≥20) | 222-247 (28-31) | 0.035 | 0.2 | |
| Sm2Co17 231/159 | S32 | 1100-1130 (11.0-11.3) | ≥804 (≥10.2) | ≥1592 (≥20) | 231-255 (29-32) | 0.038 | 0.2 | |
| Sm2Co17 239/159 | S33 | 1120-1160 (11.2-11.6) | ≥812 (≥10.2) | ≥1592 (≥20) | 239-263 (30-33) | 0.038 | 0.2 | |
| Sm2Co17 247/159 | S34 | 1150-1180 (11.5-11.8) | ≥835 (≥10.5) | ≥1592 (≥20) | 247-270 (31-34) | 0.04 | 0.25 | |
| Sm2Co17 255/159 | S35 | 1170-1200 (11.7-12.0) | ≥860 (≥10.8) | ≥1592 (≥20) | 255-278 (32-35) | 0.04 | 0.25 | |
| Sm2Co17 175/80 | S24M | 960-1030 (9.6-10.3) | 597-756 (7.5-9.5) | 796-1273 (10-16) | 175-199 (22-25) | 0.03 | 0.2 | |
| Sm2Co17 191/80 | S26M | 1010-1060 (10.1-10.6) | 597-820 (7.5-10.3) | 796-1273 (10-16) | 191-215 (24-27) | 0.03 | 0.2 | |
| Sm2Co17 207/80 | S28M | 1040-1090 (10.4-10.9) | 621-836 (7.8-10.5) | 796-1273 (10-16) | 207-231 (26-29) | 0.03 | 0.2 | |
| Sm2Co17 222/80 | S30M | 1080-1110 (10.8-11.1) | 621-836 (7.8-10.5) | 796-1273 (10-16) | 222-247 (28-31) | 0.035 | 0.2 | |
| Sm2Co17 239/80 | S32M | 1110-1150 (11.1-11.5) | 717-844 (9.0-10.6) | 796-1273 (10-16) | 239-263 (30-33) | 0.038 | 0.2 | |
| Sm2Co17 175/44 | S24L | 960-1030 (9.6-10.3) | 438-716 (5.5-9) | 478-796 (6-10) | 175-199 (22-25) | 0.03 | 0.2 | |
| Sm2Co17 191/44 | S26L | 1010-1060 (10.1-10.6) | 438-716 (5.5-9) | 478-796 (6-10) | 191-215 (24-27) | 0.03 | 0.2 | |
| Sm2Co17 207/44 | S28L | 1040-1090 (10.4-10.9) | 438-716 (5.5-9) | 478-796 (6-10) | 207-231 (26-29) | 0.03 | 0.2 | |
| Sm2Co17 222/44 | S30L | 1080-1120 (10.8-11.2) | 438-757 (5.5-9.5) | 478-796 (6-10) | 222-247 (28-31) | 0.035 | 0.2 | |
| Sm2Co17 231/44 | S32L | 1110-1150 (11.1-11.5) | 438-757 (5.5-9.5) | 478-796 (6-10) | 231-255 (29-32) | 0.038 | 0.2 | |
| Sm2Co17 151/199 | HTS20H | 870-930 (8.7-9.3) | ≥653 (≥8.2) | ≥1990 (≥25) | 151-175 (19-22) | 0.05 | 0.2 | |
| Sm2Co17 159/199 | HTS22H | 910-980 (9.1-9.8) | ≥693 (≥8.7) | ≥1990 (≥25) | 159-183 (20-23) | 0.05 | 0.2 | |
| Sm2Co17 175/199 | HTS24H | 960-1030 (9.6-10.3) | ≥724 (≥9.1) | ≥1990 (≥25) | 175-199 (22-25) | 0.05 | 0.2 | |
| Sm2Co17 103/159 | LTS14 | 730-800 (7.3-8.0) | ≥565 (≥7.1) | ≥1592 (≥20) | 103-127 (13-16) | 0.005 (20°C-100°C)0.01 (20°C-200°C) | 0.3 | |
| Sm2Co17 119/159 | LTS16 | 790-860 (7.9-8.6) | ≥613 (≥7.7) | ≥1592 (≥20) | 119-143 (15-18) | 0.01 (20°C-100°C) 0.015 (20°C-200°C) | 0.3 | |
| Sm2Co17 135/159 | LTS18 | 830-890 (8.3-8.9) | ≥645 (≥8.1) | ≥1592 (≥20) | 135-159 (17-20) | 0.015 (20°C-100°C) 0.02 (20°C-200°C) | 0.3 | |
| Sm2Co17 151/159 | LTS20 | 870-930 (8.7-9.3) | ≥653 (≥8.2) | ≥1592 (≥20) | 151-175 (19-22) | 0.02 (20°C-100°C) 0.025 (20°C-200°C) | 0.3 | |
| Sm2Co17 16/159 | QS4 | 300-500 (3.0-5.0) | ≥175 (≥2.2) | ≥1592 (≥20) | 16-48 (2-6) | 0.03 | 0.2 | |
| Sm2Co17 32/159 | QS6 | 500-700 (5.0-7.0) | ≥287 (≥3.6) | ≥1592 (≥20) | 32-96 (4-12) | 0.03 | 0.2 | |
| RECo5 119/199 | PS16H | 790-860 (7.9-8.6) | ≥605 (≥7.6) | ≥1990 (≥25) | 119-143 (15-18) | 0.05 | 0.3 | |
| RECo5 135/199 | PS18H | 840-910 (8.4-9.1) | ≥645 (≥8.1) | ≥1990 (≥25) | 135-159 (17-20) | 0.05 | 0.3 | |
| RECo5 151/199 | PS20H | 870-930 (8.7-9.3) | ≥653 (≥8.2) | ≥1990 (≥25) | 151-175 (19-22) | 0.05 | 0.3 | |
| RECo5 159/199 | PS22H | 910-980 (9.1-9.8) | ≥693 (≥8.7) | ≥1990 (≥25) | 159-183 (20-23) | 0.05 | 0.3 | |
| RECo5 175/199 | PS24H | 950-1010 (9.5-10.1) | ≥717 (≥9.0) | ≥1990 (≥25) | 175-199 (22-25) | 0.05 | 0.3 | |
| RECo5 111/159 | PS14 | 710-830 (7.1-8.3) | ≥541 (≥6.8) | ≥1592 (≥20) | 95-127 (12-16) | 0.05 | 0.3 | |
| RECo5 119/159 | PS16 | 790-860 (7.9-8.6) | ≥605 (≥7.6) | ≥1592 (≥20) | 119-143 (15-18) | 0.05 | 0.3 | |
| RECo5 135/159 | PS18 | 840-910 (8.4-9.1) | ≥645 (≥8.1) | ≥1592 (≥20) | 135-159 (17-20) | 0.05 | 0.3 | |
| RECo5 151/159 | PS20 | 870-930 (8.7-9.3) | ≥653 (≥8.2) | ≥1592 (≥20) | 151-175 (19-22) | 0.05 | 0.3 | |
| RECo5 159/159 | PS22 | 910-980 (9.1-9.8) | ≥693 (≥8.7) | ≥1592 (≥20) | 159-183 (20-23) | 0.05 | 0.3 | |
| RECo5 175/159 | PS24 | 950-1010 (9.5-10.1) | ≥717 (≥9.0) | ≥1592 (≥20) | 175-199 (22-25) | 0.05 | 0.3 |
If needed, scroll horizontally to view all columns.
Reference data. Br values in parentheses are converted from the listed mT values. Confirm the applicable grade document, material system and thermal exposure before design approval.
Temperature coefficients retain the source notation (%/°C). Positive entries may denote magnitudes. Confirm the sign and test interval in the applicable grade document before calculation.
| Grade | Series | Temp. reference* | Typical application |
|---|---|---|---|
| S22H | 2:17 | 300°C | General high-temp |
| S26H | 2:17 | 300°C | High performance |
| S30H | 2:17 | 300°C | Premium grade |
| HTS22H | 2:17 | 350°C | Extreme temperature |
| S24H (1:5) | 1:5 | 250°C | High coercivity, fine grain |
*Temperature values are selection references, not part-specific limits. Confirm the grade, magnetic circuit and test conditions before specifying.
If needed, scroll horizontally to view all columns.
| Property | SmCo₅ (18) | SmCo₅ (22) | Sm₂Co₁₇ (26) | Sm₂Co₁₇ (30) | Unit |
|---|---|---|---|---|---|
| Remanence (Br) | 8.5-9.0 | 9.0-10.0 | 10.5-11.0 | 11.0-11.5 | kGs |
| Coercivity (Hcb) | 7.5-8.5 | 8.0-9.0 | 9.5-10.0 | 10.0-10.5 | kOe |
| Intrinsic Coercivity (Hci) | ≥15 | ≥15 | ≥18 | ≥20 | kOe |
| Max Energy Product (BH)max | 17-20 | 20-23 | 25-28 | 28-30 | MGOe |
| Max Operating Temp | 250 | 250 | 300 | 300 | °C |
| Density | 8.2 | 8.2 | 8.4 | 8.4 | g/cm³ |
| Curie Temperature | 700 | 720 | 820 | 820 | °C |
| Temp Coeff. (Br) | -0.045 | -0.045 | -0.030 | -0.030 | %/°C |
YX / YXG references keep SmCo 1:5 and 2:17 families, coercivity series and grade-specific temperature limits together. These names are not automatic equivalents of the existing S / PS specification directory above.
Reference snapshot: 20 October 2026. This 34-grade YX / YXG reference set remains separate from the existing S / PS grade directory; matching names do not establish equivalence.
34 separately identified specifications. Values below follow the reference PDF, revised 24 October 2026: maximum working temperatures are 250°C for YXG-35 and 350°C for YXG-35H. All other tabulated properties retain the 20 October reference values.
Maximum working temperature is grade-specific; the listed 250–350°C values are not one rating for the whole SmCo family. Geometry, magnetic circuit, opposing field, exposure time and acceptable irreversible loss remain part of selection.
Scroll to view every property and the specification status. Select up to four grades from this specification series.
| Grade | Family | Br T (kGs) | Hcb kA/m (kOe) | Hcj kA/m (kOe) | (BH)max kJ/m³ (MGOe) | Typical Tmax °C | Specification status |
|---|---|---|---|---|---|---|---|
| YX-16 | SmCo 1:5 | 0.81-0.85 8.1-8.5 kGs | 620-660 7.8-8.3 kOe | 1194-1830 15-23 kOe | 110-127 14-16 MGOe | 250 | Reference values |
| YX-18 | SmCo 1:5 | 0.85-0.90 8.5-9.0 kGs | 660-700 8.3-8.8 kOe | 1194-1830 15-23 kOe | 127-143 16-18 MGOe | 250 | Reference values |
| YX-20 | SmCo 1:5 | 0.90-0.94 9.0-9.4 kGs | 676-725 8.5-9.1 kOe | 1194-1830 15-23 kOe | 150-167 19-21 MGOe | 250 | Reference values |
| YX-22 | SmCo 1:5 | 0.92-0.96 9.2-9.6 kGs | 710-748 8.9-9.4 kOe | 1194-1830 15-23 kOe | 160-175 20-22 MGOe | 250 | Document values; see version notes |
| YX-24 | SmCo 1:5 | 0.96-1.00 9.6-10.0 kGs | 730-770 9.2-9.7 kOe | 1194-1830 15-23 kOe | 175-190 22-24 MGOe | 250 | Reference values |
| YX-16s | SmCo 1:5 | 0.79-0.84 7.9-8.4 kGs | 620-660 7.8-8.3 kOe | ≥1830 ≥23 kOe | 118-135 15-17 MGOe | 250 | Reference values |
| YX-18s | SmCo 1:5 | 0.84-0.89 8.4-8.9 kGs | 660-700 8.3-8.8 kOe | ≥1830 ≥23 kOe | 135-151 17-19 MGOe | 250 | Reference values |
| YX-20s | SmCo 1:5 | 0.89-0.93 8.9-9.3 kGs | 684-732 8.6-9.2 kOe | ≥1830 ≥23 kOe | 150-167 19-21 MGOe | 250 | Reference values |
| YX-22s | SmCo 1:5 | 0.92-0.96 9.2-9.6 kGs | 710-756 8.9-9.5 kOe | ≥1830 ≥23 kOe | 167-183 21-23 MGOe | 250 | Reference values |
| YX-24s | SmCo 1:5 | 0.96-1.00 9.6-10.0 kGs | 740-788 9.3-9.9 kOe | ≥1830 ≥23 kOe | 183-199 23-25 MGOe | 250 | Reference values |
| YXG-24H | SmCo 2:17 | 0.95-1.02 9.5-10.2 kGs | 692-764 8.7-9.6 kOe | ≥1990 ≥25 kOe | 175-191 22-24 MGOe | 350 | Reference values |
| YXG-26H | SmCo 2:17 | 1.02-1.05 10.2-10.5 kGs | 748-796 9.4-10.0 kOe | ≥1990 ≥25 kOe | 191-207 24-26 MGOe | 350 | Reference values |
| YXG-28H | SmCo 2:17 | 1.03-1.08 10.3-10.8 kGs | 756-812 9.5-10.2 kOe | ≥1990 ≥25 kOe | 207-223 26-28 MGOe | 350 | Reference values |
| YXG-30H | SmCo 2:17 | 1.08-1.10 10.8-11.0 kGs | 788-835 9.9-10.5 kOe | ≥1990 ≥25 kOe | 223-239 28-30 MGOe | 350 | Reference values |
| YXG-32H | SmCo 2:17 | 1.10-1.13 11.0-11.3 kGs | 812-860 10.2-10.8 kOe | ≥1990 ≥25 kOe | 231-255 29-32 MGOe | 350 | Reference values |
| YXG-33H | SmCo 2:17 | 1.12-1.16 11.2-11.6 kGs | 845-890 10.6-11.2 kOe | ≥1990 ≥25 kOe | 239-263 30-33 MGOe | 350 | Reference values |
| YXG-35H | SmCo 2:17 | 1.16-1.20 11.6-12.0 kGs | 860-908 10.8-11.4 kOe | ≥1830 ≥23 kOe | 255-278 32-35 MGOe | 350 | Temperature revised; see version notes |
| YXG-22 | SmCo 2:17 | 0.93-0.97 9.3-9.7 kGs | 676-740 8.5-9.3 kOe | ≥1433 ≥18 kOe | 160-183 20-23 MGOe | 300 | Reference values |
| YXG-24 | SmCo 2:17 | 0.95-1.02 9.5-10.2 kGs | 692-764 8.7-9.6 kOe | ≥1433 ≥18 kOe | 175-191 22-24 MGOe | 300 | Reference values |
| YXG-26 | SmCo 2:17 | 1.02-1.05 10.2-10.5 kGs | 748-796 9.4-10.0 kOe | ≥1433 ≥18 kOe | 191-207 24-26 MGOe | 300 | Reference values |
| YXG-28 | SmCo 2:17 | 1.03-1.08 10.3-10.8 kGs | 756-812 9.5-10.2 kOe | ≥1433 ≥18 kOe | 207-223 26-28 MGOe | 300 | Reference values |
| YXG-30 | SmCo 2:17 | 1.08-1.10 10.8-11.0 kGs | 788-835 9.9-10.5 kOe | ≥1433 ≥18 kOe | 223-239 28-30 MGOe | 300 | Reference values |
| YXG-32 | SmCo 2:17 | 1.10-1.13 11.0-11.3 kGs | 812-860 10.2-10.8 kOe | ≥1433 ≥18 kOe | 231-255 29-32 MGOe | 300 | Reference values |
| YXG-33 | SmCo 2:17 | 1.12-1.16 11.2-11.6 kGs | 845-890 10.6-11.2 kOe | ≥1433 ≥18 kOe | 239-263 30-33 MGOe | 300 | Reference values |
| YXG-35 | SmCo 2:17 | 1.16-1.20 11.6-12.0 kGs | 860-908 10.8-11.4 kOe | ≥1433 ≥18 kOe | 255-278 32-35 MGOe | 250 | Document values; see version notes |
| YXG-26M | SmCo 2:17 | 1.02-1.05 10.2-10.5 kGs | 676-780 8.5-9.8 kOe | 955-1433 12-18 kOe | 199-215 25-27 MGOe | 300 | Reference values |
| YXG-28M | SmCo 2:17 | 1.03-1.08 10.3-10.8 kGs | 676-796 8.5-10.0 kOe | 955-1433 12-18 kOe | 207-223 26-28 MGOe | 300 | Document values; see version notes |
| YXG-30M | SmCo 2:17 | 1.08-1.10 10.8-11.0 kGs | 676-835 8.5-10.5 kOe | 955-1433 12-18 kOe | 223-240 28-30 MGOe | 300 | Document values; see version notes |
| YXG-32M | SmCo 2:17 | 1.10-1.13 11.0-11.3 kGs | 676-852 8.5-10.7 kOe | 955-1433 12-18 kOe | 231-255 29-32 MGOe | 300 | Document values; see version notes |
| YXG-24L | SmCo 2:17 | 0.95-1.02 9.5-10.2 kGs | 541-716 6.8-9.0 kOe | 636-955 8-12 kOe | 183-199 23-25 MGOe | 250 | Reference values |
| YXG-26L | SmCo 2:17 | 1.02-1.05 10.2-10.5 kGs | 541-748 6.8-9.4 kOe | 636-955 8-12 kOe | 199-215 25-27 MGOe | 250 | Reference values |
| YXG-28L | SmCo 2:17 | 1.03-1.08 10.3-10.8 kGs | 541-764 6.8-9.6 kOe | 636-955 8-12 kOe | 207-223 26-28 MGOe | 250 | Document values; see version notes |
| YXG-30L | SmCo 2:17 | 1.08-1.15 10.8-11.5 kGs | 541-796 6.8-10.0 kOe | 636-955 8-12 kOe | 223-239 28-30 MGOe | 250 | Document values; see version notes |
| YXG-32L | SmCo 2:17 | 1.10-1.15 11.0-11.5 kGs | 541-812 6.8-10.2 kOe | 636-955 8-12 kOe | 231-255 29-32 MGOe | 250 | Document values; see version notes |
These are distinct supply specifications. Identical grade names across older tables and this reference do not establish interchangeability. The original grade directories and their individual PDFs remain available above. The displayed values follow the reference document with the 24 October 2026 temperature revision for YXG-35 and YXG-35H. Other properties are unchanged. Alternate archived values and unit checks are recorded below; agree one complete specification set for the selected part rather than combining values from different records.
Scroll horizontally to read all columns.
| Grade | Recorded difference / check |
|---|---|
| YX-22 | BHmax kJ per m3: PDF 160-175; webpage 167-175 |
| YXG-35H | Maximum working temperature: 350°C (24 Oct 2026 revision). The archived PDF listed 300°C; the older webpage omitted this grade. Other properties remain unchanged. |
| YXG-35 | Hcb kA per m: PDF 860-908; webpage 868-908 Hcb kOe: PDF 10.8-11.4; webpage 10.9-11.4 Maximum working temperature: 250°C (confirmed 24 Oct 2026). The archived PDF listed 250°C; the older webpage listed 300°C. |
| YXG-28M | BHmax kJ per m3: PDF 207-223; webpage 207-220 |
| YXG-30M | BHmax kJ per m3: PDF 223-240; webpage 220-240 |
| YXG-32M | BHmax kJ per m3: PDF 231-255; webpage 230-255 |
| YXG-28L | BHmax kJ per m3: PDF 207-223; webpage 207-220 |
| YXG-30L | BHmax kJ per m3: PDF 223-239; webpage 220-240 |
| YXG-32L | BHmax kJ per m3: PDF 231-255; webpage 230-255 |
Development entries remain references for engineering discussion, not a production availability commitment. Confirm the applicable specification revision and production status with the proposed part.
Scroll horizontally to read all columns.
| Property | Unit | SmCo 1:5 | SmCo 2:17 |
|---|---|---|---|
| Vickers hardness | Hv | 450-500 | 550-600 |
| Electrical resistivity | Ω·cm | 5 ~ 6 x10⁻⁵ | 8 ~ 9 x10⁻⁵ |
| Density | g/cm³ | 8.3 | 8.4 |
| Thermal expansion, perpendicular to orientation | /°C | 12 x10⁻⁶ | 11 x10⁻⁶ |
| Thermal expansion, parallel to orientation | /°C | 6×10⁻⁶ | 8×10⁻⁶ |
| Compressive strength | MPa | 1000 | 800 |
| Flexural strength | MPa | 150-180 | 130-150 |
| Tensile strength | MPa | 40 | 35 |
Direction refers to the material orientation axis. These family references support thermal and mechanical design; qualify the selected grade and geometry.
S / PS and YX / YXG are distinct specification sets, not automatic equivalents. YXG-35: 250°C; YXG-35H: 350°C in the 24 October 2026 revision. Grade, geometry, magnetic circuit, exposure and permissible irreversible loss must be agreed.

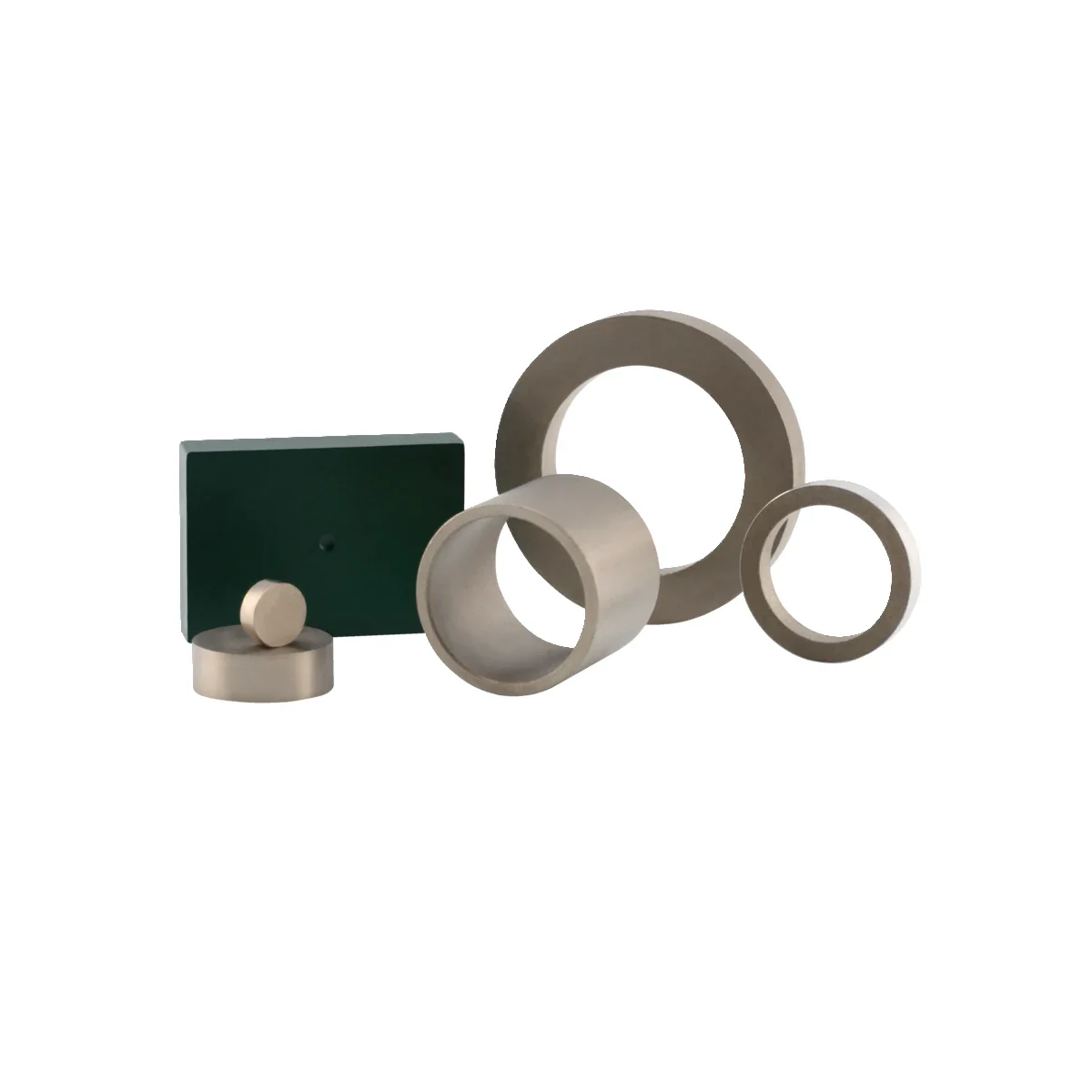

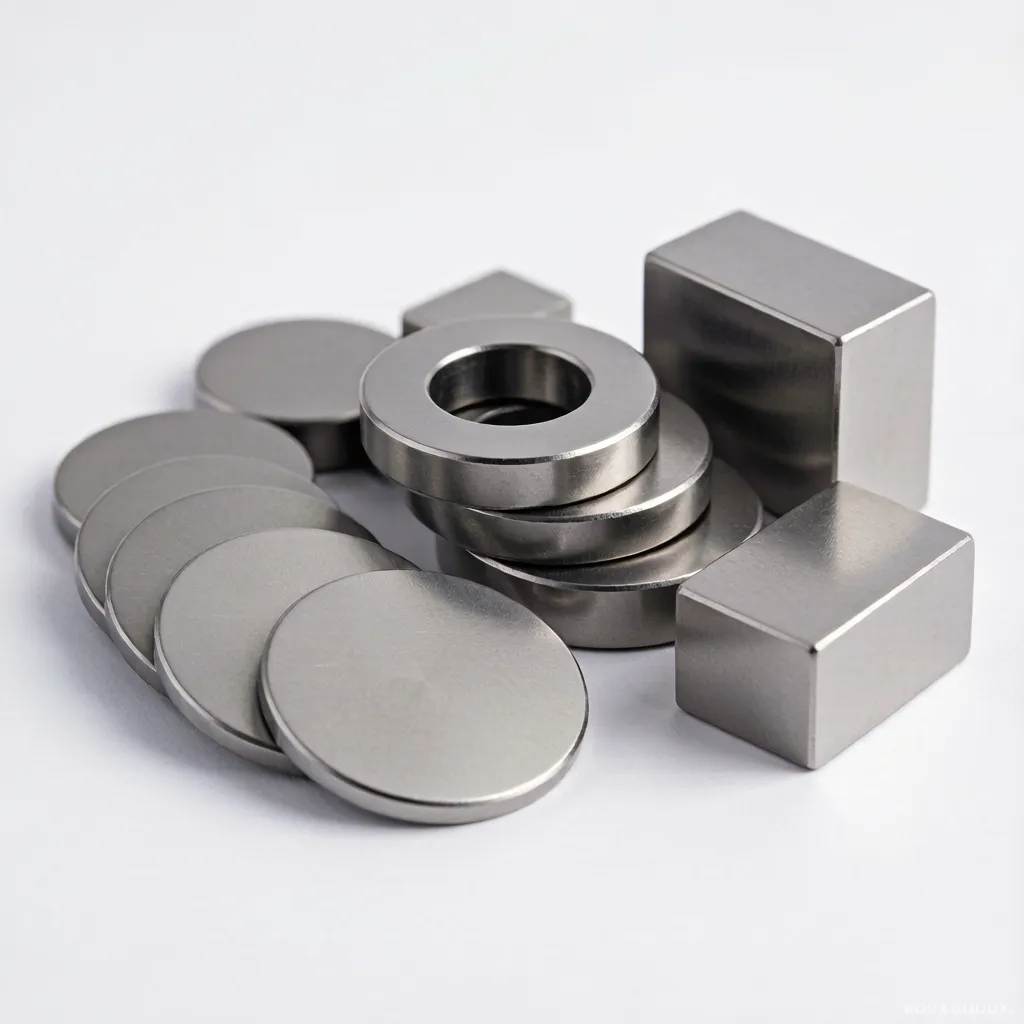

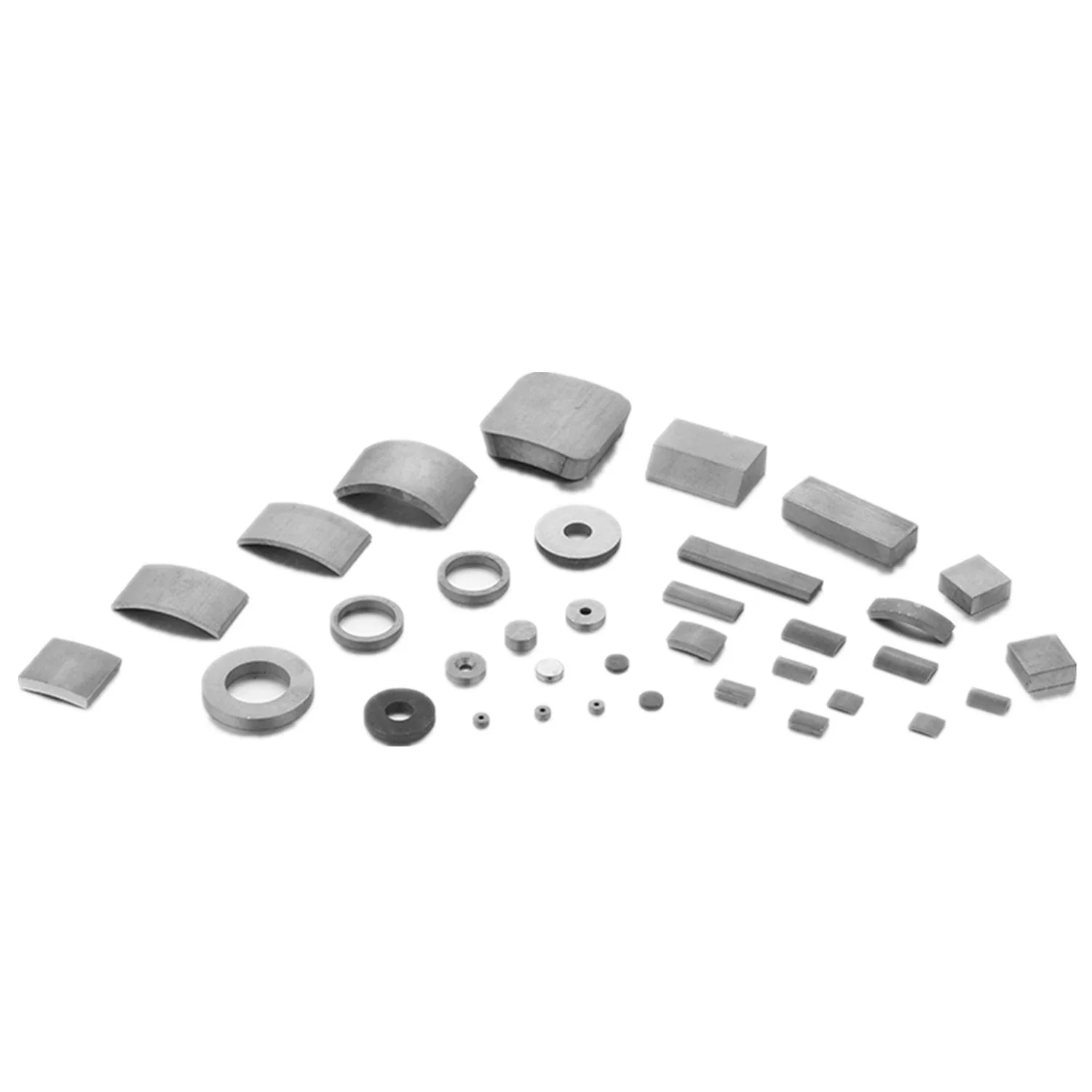

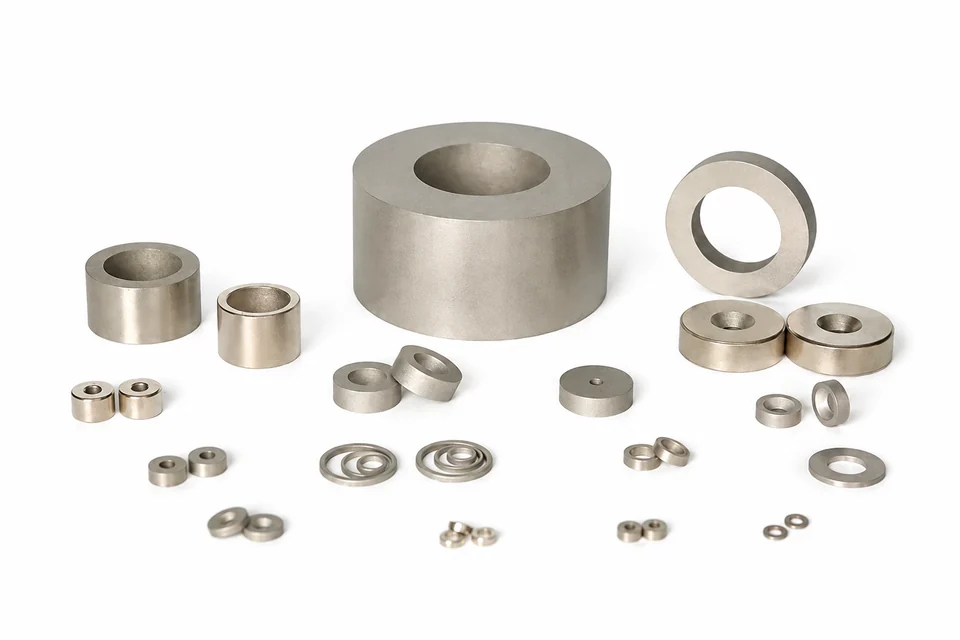

Axial or diametral discs; radial or axial rings. Ground ID/OD controls concentricity.

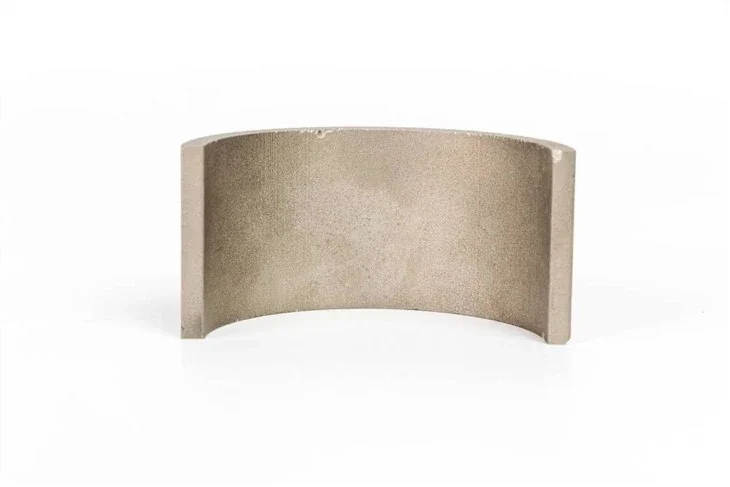

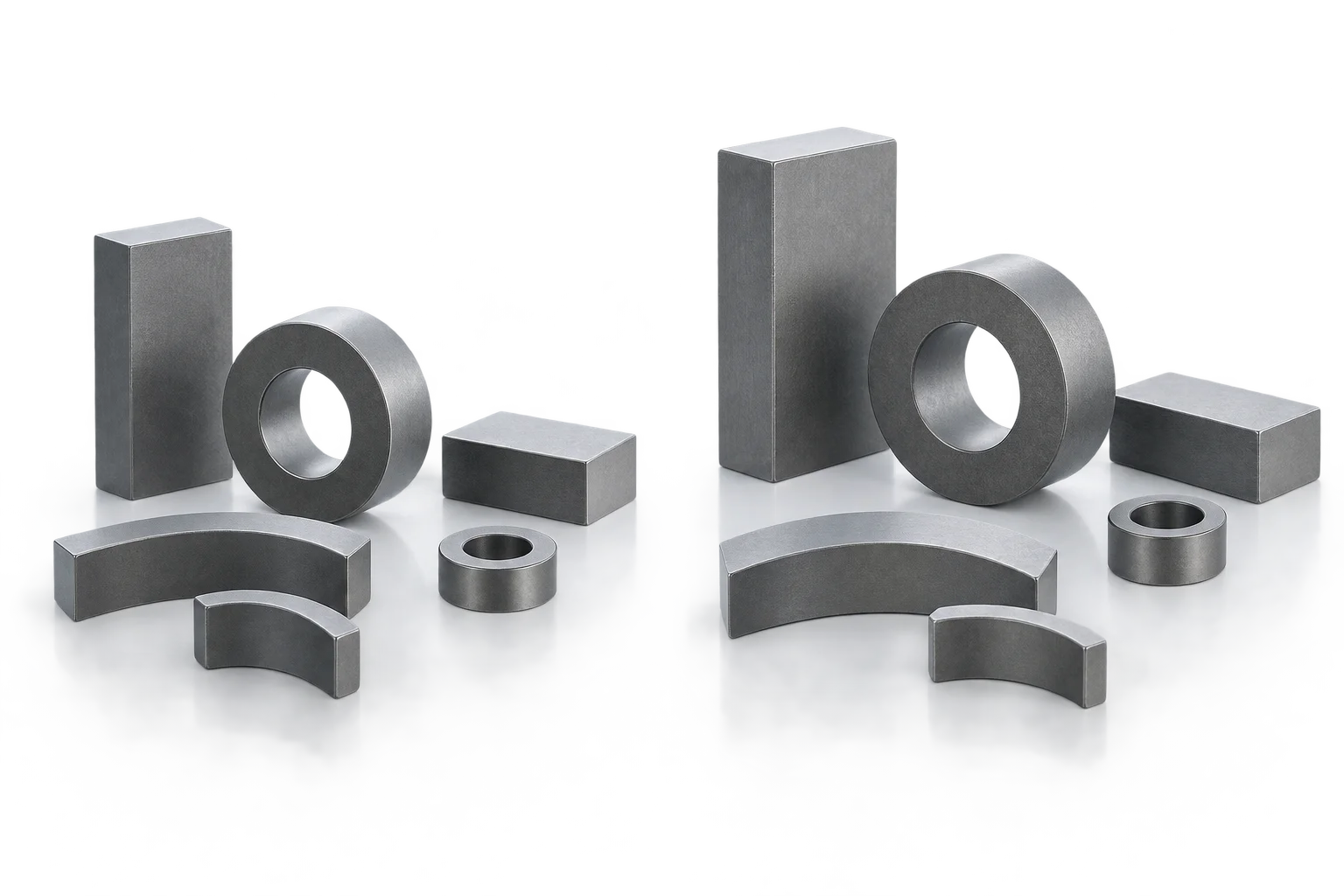

As-sintered or ground blocks. Arc segments for motor poles and couplings; skewed forms on request.
Machined to the drawing. Review holes, mounting features and edge breaks before selecting the route.
SmCo is brittle. Quote tolerances from the geometry, edge quality and inspection method.
| Process | Typical Tolerance | Notes |
|---|---|---|
| As-sintered | ±0.1 mm | Most economical; non-critical faces |
| Ground | ±0.05 mm | Standard for mating dimensions |
| Precision ground | ±0.02 mm | Press-fit diameters and locating faces |
| Parallelism / perpendicularity | Per drawing | Confirmed during DFM review |

Define the orientation axis, datum, air gap, opposing pole face and support contact.

SmCo 2:17 has a reversible Br temperature coefficient around −0.03%/°C, compared with −0.12%/°C for NdFeB references. High coercivity and a linear demagnetization curve support predictable circuit design.
Coating can be unnecessary in suitable environments. Aggressive media, cleanliness and particle shedding may require Ni-Cu-Ni or epoxy protection.
S24H–S30H 2:17 selection references for actuators and TWTs; validate the complete 300°C+ operating conditions.
S22H 2:17 reference for stable sensing across −40°C to 180°C engine-bay conditions.
HTS24 reference for high-temperature service; assess corrosive fluids and surface protection.
SmCo 1:5 S22H reference for a stable travelling-wave-tube field.
S26H 2:17 reference. Review device contact conditions, material/coating suitability and project documentation.
Application examples are selection references, not assembly operating guarantees. Confirm temperature, circuit, corrosion protection and acceptance for the actual part.

Specify chamfers and avoid impact or point loading. Use non-magnetic tooling, controlled press-fits and protective packing; agree handling recommendations during DFM.
Specialist grinding and cutting are used for machining. Review mounting features and edge quality before release.
COA with measured Br, Hcb, Hcj and (BH)max against the chosen grade, with B–H curve verification and agreed sampling.
Gauge or CMM reports under the inspection plan. Identify critical dimensions, sampling and acceptance criteria during DFM.
RoHS / REACH declarations on request; FAI / PPAP according to project requirements.

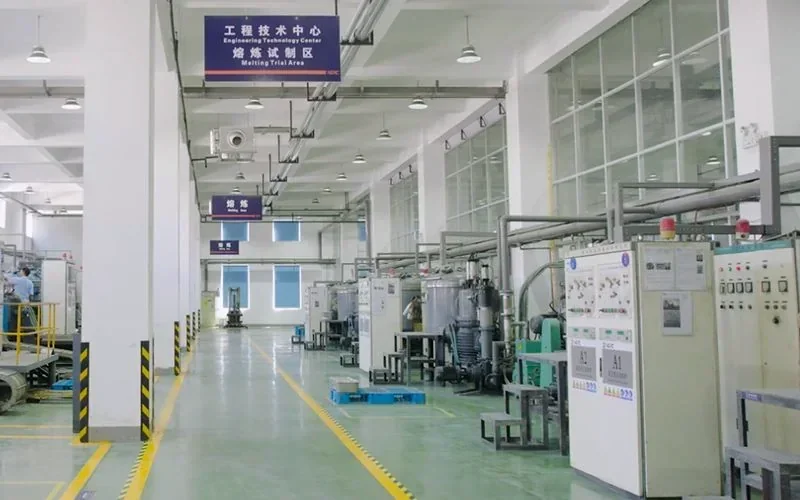

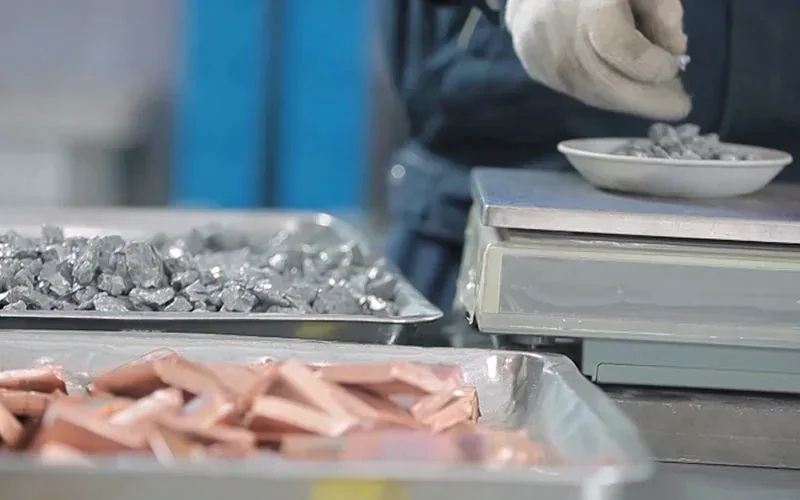

Weigh samarium, cobalt and alloy additions to the grade formulation.
Protect chemistry and limit contamination before powder preparation.

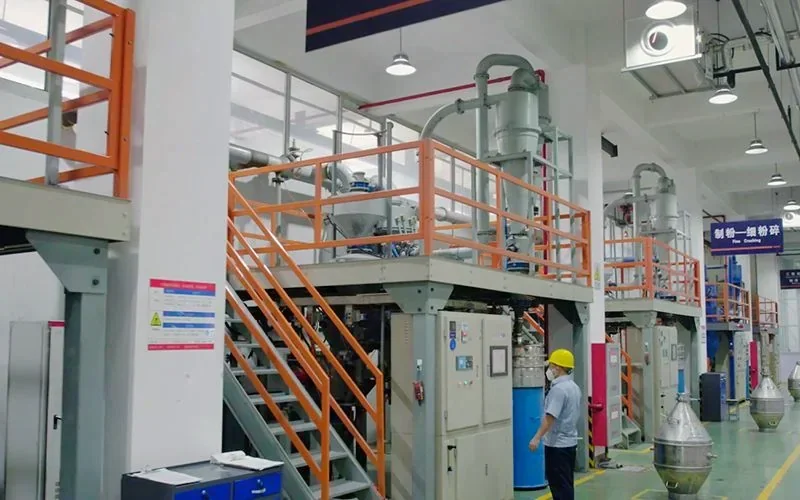

Crushing and airflow milling precede magnetic-field pressing.

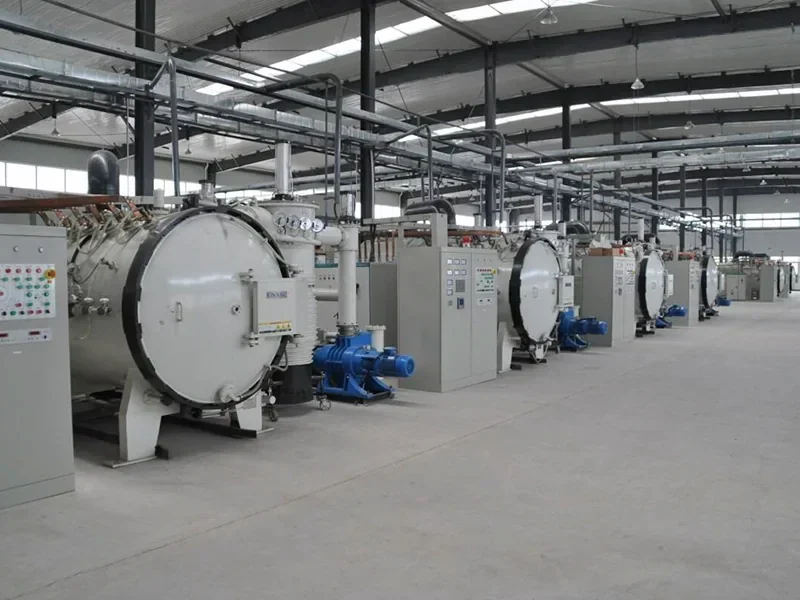

Controlled-atmosphere furnaces support the high-temperature powder-metallurgy route.

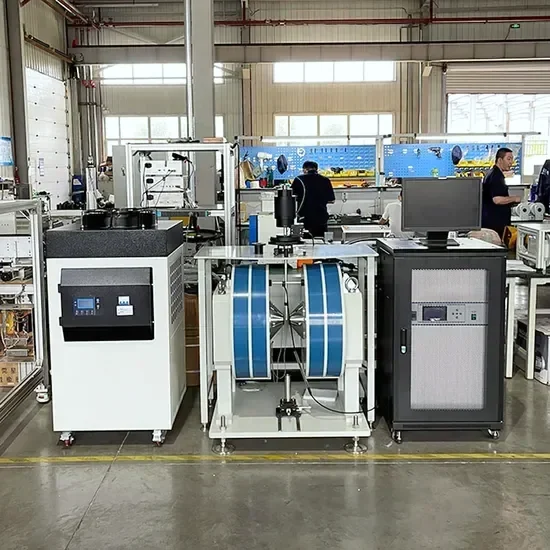

Hysteresis/curve analysis and vibrating-sample magnetometry characterize remanence, coercivity and temperature behavior.
Secure brittle parts with the inspection records and lot identification.
Equipment route varies by material and geometry. Remote video inspection is available before shipment.
Explore magnetic manufacturingSamarium and cobalt drive raw-material cost. Suitable uncoated use can reduce finishing cost. Above 150–200°C, compare lifecycle cost with high-temperature NdFeB grades that use dysprosium additions.
The published grade references span 250–350°C, not one rating for SmCo. Above 350°C, samarium oxidation and long-term stability require careful evaluation. Qualify the actual geometry and circuit at operating temperature.
Send the geometry, series and magnetic working conditions for grade recommendation and quotation.
Confidential RFQ · NDA available upon request.
1:5 or 2:17; grade/specification revision.
Temperature, field, load line and exposure.
Datum, interface and handling constraints.
Magnetic, dimensional and documentation requirements.
