Ningbo Empire · Engineering & manufacturing

Components for Medical Devices.

Material selection, documented specifications, traceability and controlled production for device components, with qualification requirements agreed for each project.

Compact linear actuator, mounting clevis and separate protective cover
Medical coupling containment interfaceMagnetic coupling interfaceDrive sideDriven sideIsolation wallLeakage criterion + magnetic function
Define the isolator, fluid exposure and leakage acceptance with the device qualification plan.

Make the component qualification explicit.

Component
Magnetic, mechanical or material function
Environment
Operating conditions and cleaning exposure
Validation
Project-specific tests and acceptance records

Typical Applications

Potential applications, subject to device-specific qualification:

Scroll horizontally to view all columns. Keyboard: focus the table and use the arrow keys.

ApplicationTypical MaterialWhat Matters
Peristaltic & metering pumpsSmCo, NdFeB drive magnetsLong-term flux stability
Magnetic couplings (hermetic)SmCo + stainless isolatorsFluid containment validated against the agreed leakage criterion

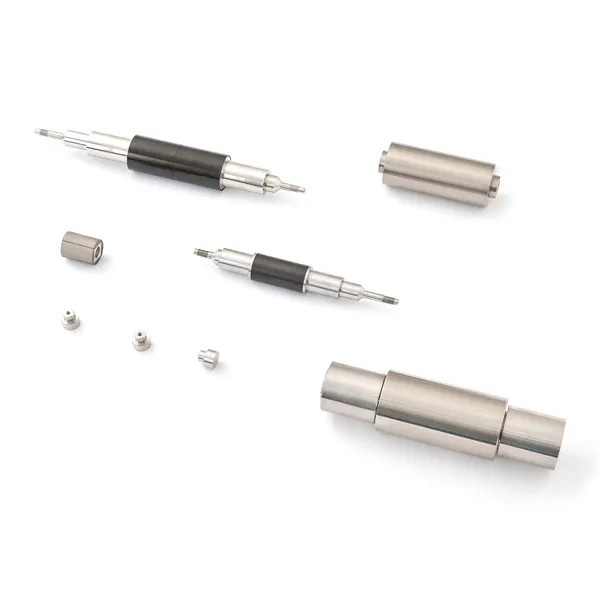

Lab analyzersSmCo assemblies, Halbach arraysUniform, stable fields

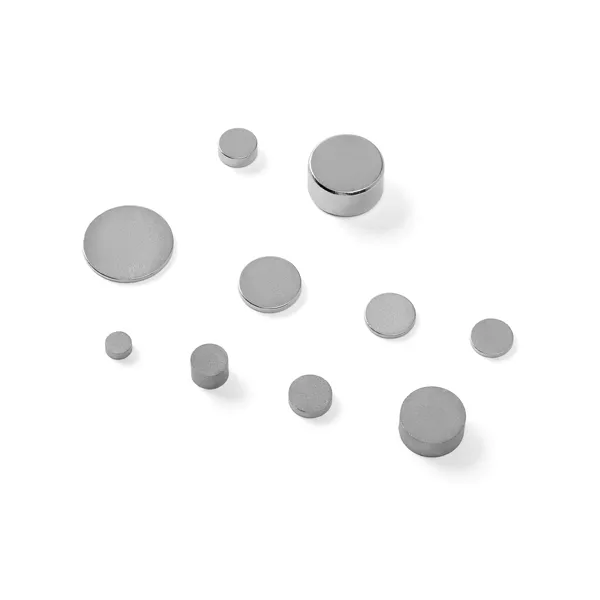

Position sensorsSmCo micro magnetsCoating requirements reviewed for the selected material and exposure
Surgical tool motorsNdFeB, autoclave-capable buildsCorrosion and steam resistance
Magnetic separation (biotech)NdFeB arrays, beads accessoriesHigh gradient fields
Ventilator-drive componentsApplication-selected motor magnetsMotor duty, thermal limits, noise-sensitive magnetic behavior and component traceability within the device qualification plan.

What We Supply to Medical Device OEMs

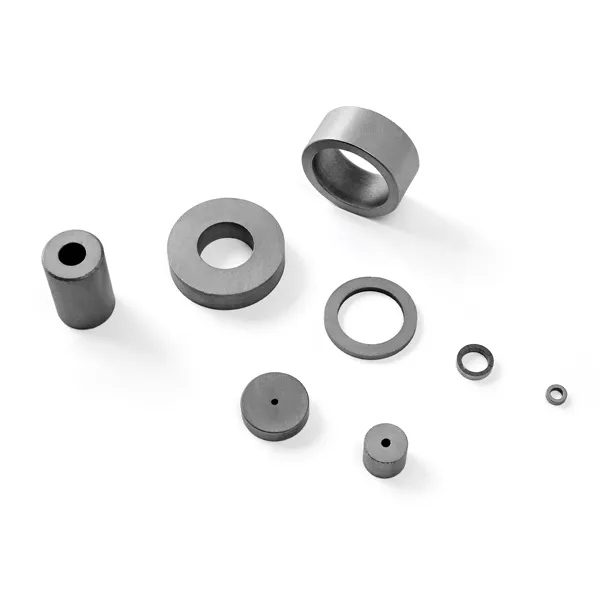

  • SmCo material selection — review magnetic stability, corrosion exposure and any protection requirements against the intended device environment
  • Parylene-C coatings — a conformal-coating option, with the required test evidence and device-specific acceptance agreed before supply
  • Precision grinding — ±0.01 mm tolerances for sensor and instrument-grade magnets, verified on CMM and optical comparators
  • Protective packaging — individual part protection, with cleanliness and handling requirements defined for the program
  • Full lot documentation — material certs, dimensional reports, and flux measurements retained and supplied with each lot
  • Low-volume flexibility — we support prototype and pilot builds with the same process control as volume production

Components and qualification requirements.

Dimensional Verification

Inspection, traceability and change control for each component.

Open Dimensional Verification

Medical use requires project-specific qualification; these component references do not establish implant, biocompatibility or finished-device approval.

Device-component qualification

Medical feature to recordFrom feature to lot recordLot recordMaterial certificateDimensional reportFlux measurementDrawing revisionAgreed datumThe same acceptance basis at every release
Component evidence supports the project plan; it does not establish finished-device approval.

Qualification inputs for magnetic, dimensional and cleaning requirements.

Magnetic stability

Review SmCo stability against the device temperature range, magnetic circuit and qualification requirements.

Engineering Documentation

Agree certificates, dimensional data, magnetic measurements and traceability records for the device qualification plan.

Pilot-to-production controls

Record the approved material, drawing revision and inspection plan at pilot release so later production uses the same acceptance basis.

Application-Specific Qualification

Include the cleaning cycle, media exposure and device validation criteria in the component qualification plan.

Discuss your application

Project-Specific Capability References

For the device component, confirm the product, test conditions, producing route and documentation before adopting these references as acceptance requirements.

±0.01

mm Precision Grinding

350°C

SmCo Stability

Parylene

Coating Option

100%

Lot Documentation

Prepare your device-component inquiry.

G n0 Device-component definition n1 Material / cleaning / service conditions n0->n1 Magnetic / mechanical function n2 Device-specific qualification n1->n2 Validation / lot documentation
Magnetic / mechanical function · Validation / lot documentation

Describe the device-component function, material, coating, tolerance, media and cleaning exposure, with the project-specific validation requirements for engineering review.
